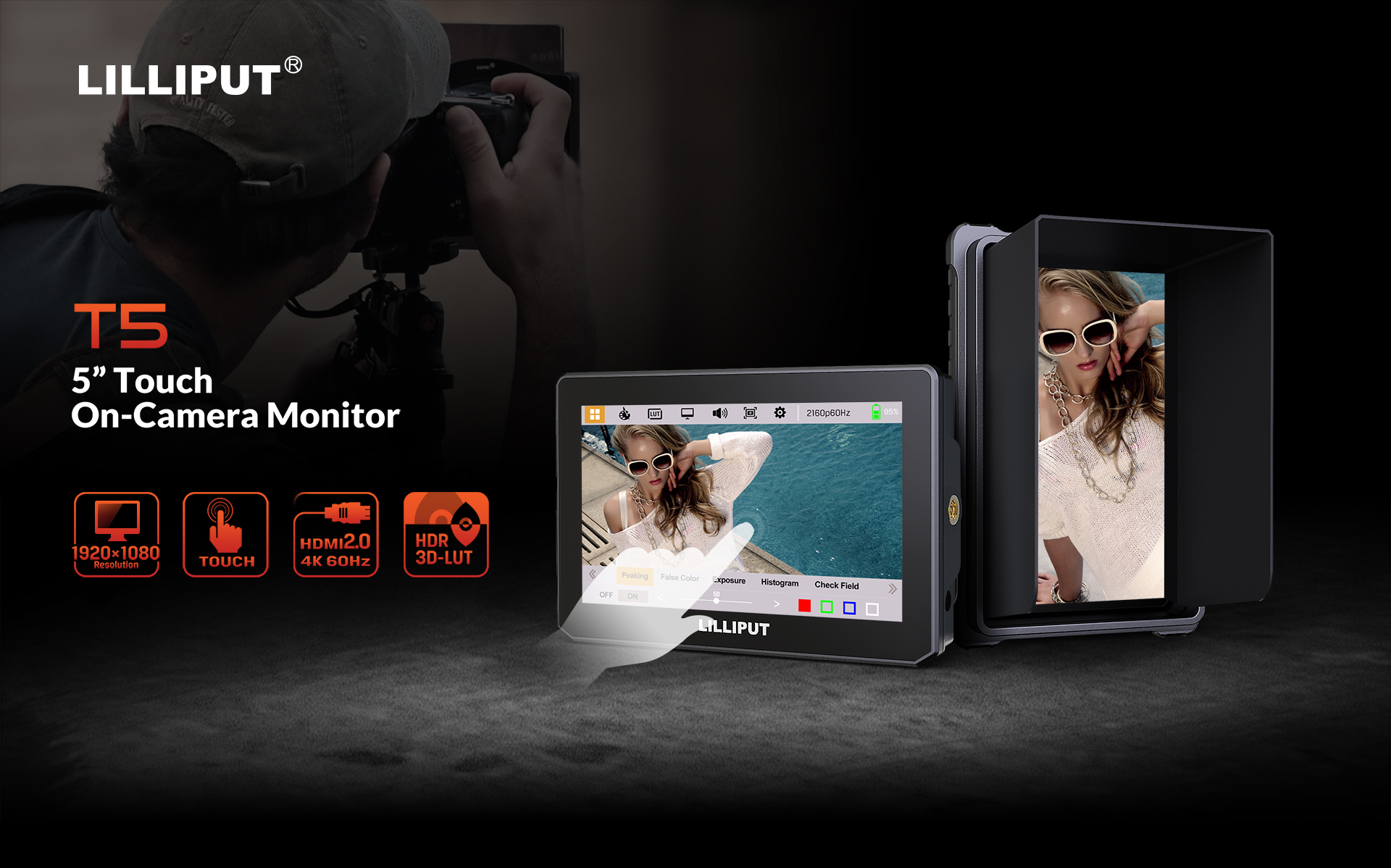

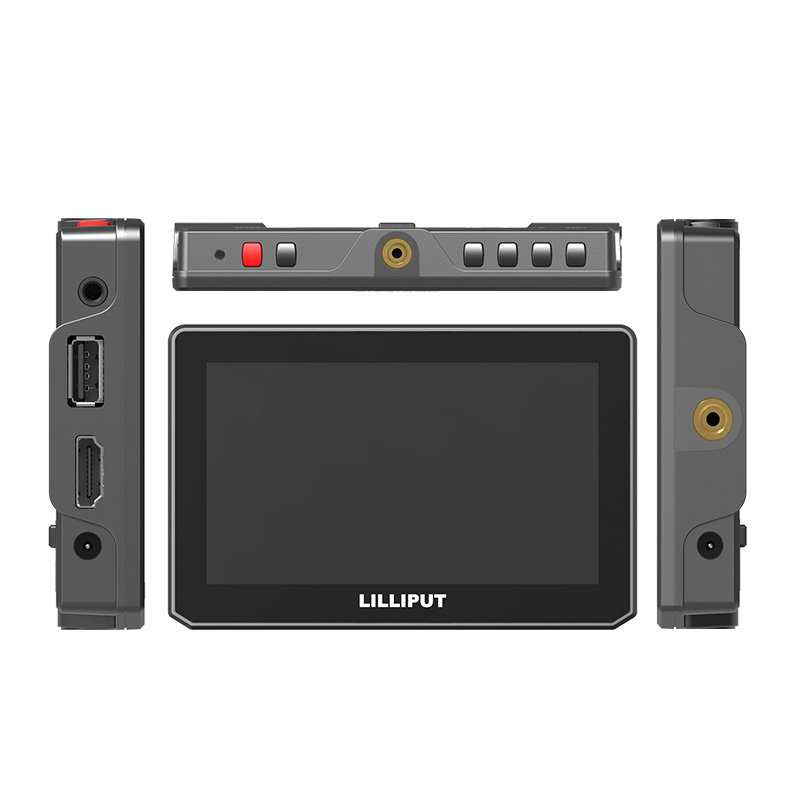

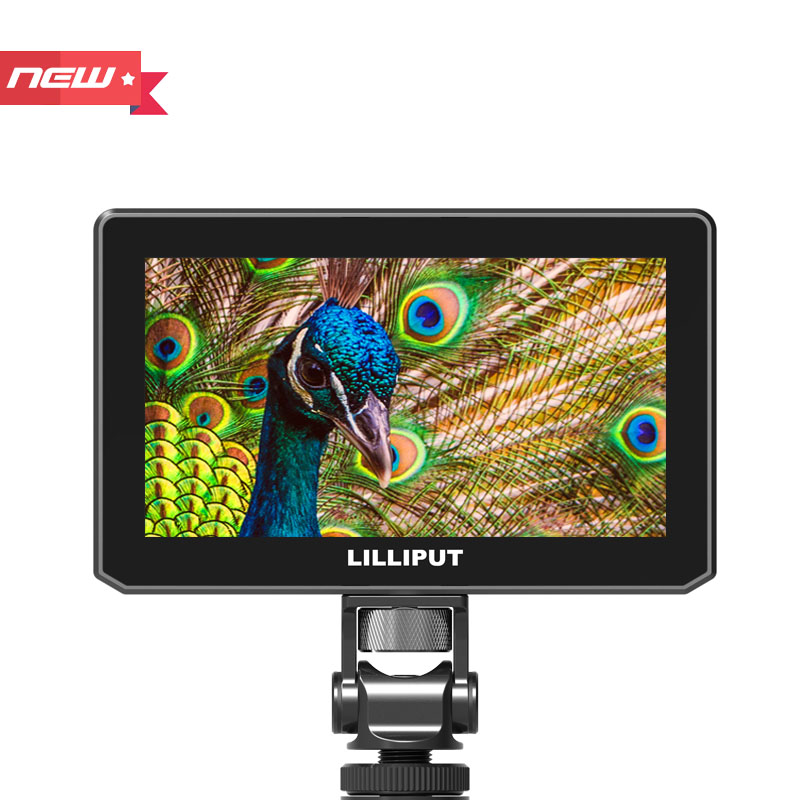

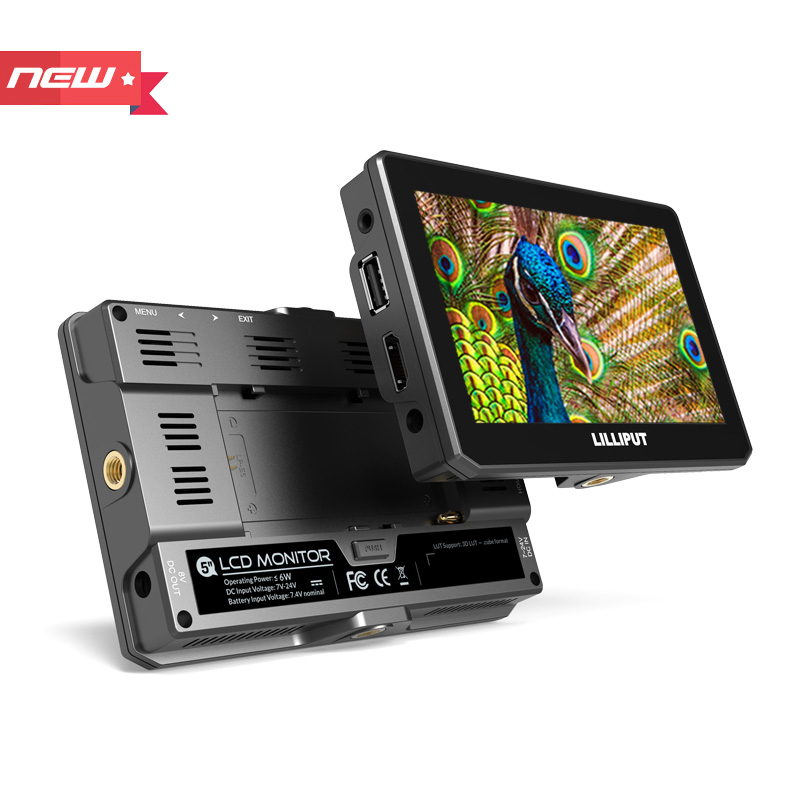

5 inch touch on-camera monitor
Touch On-Camera Monitor with Full HD Resolution, excellent color space. Perfect gear on DSLR for taking photos & making movies.

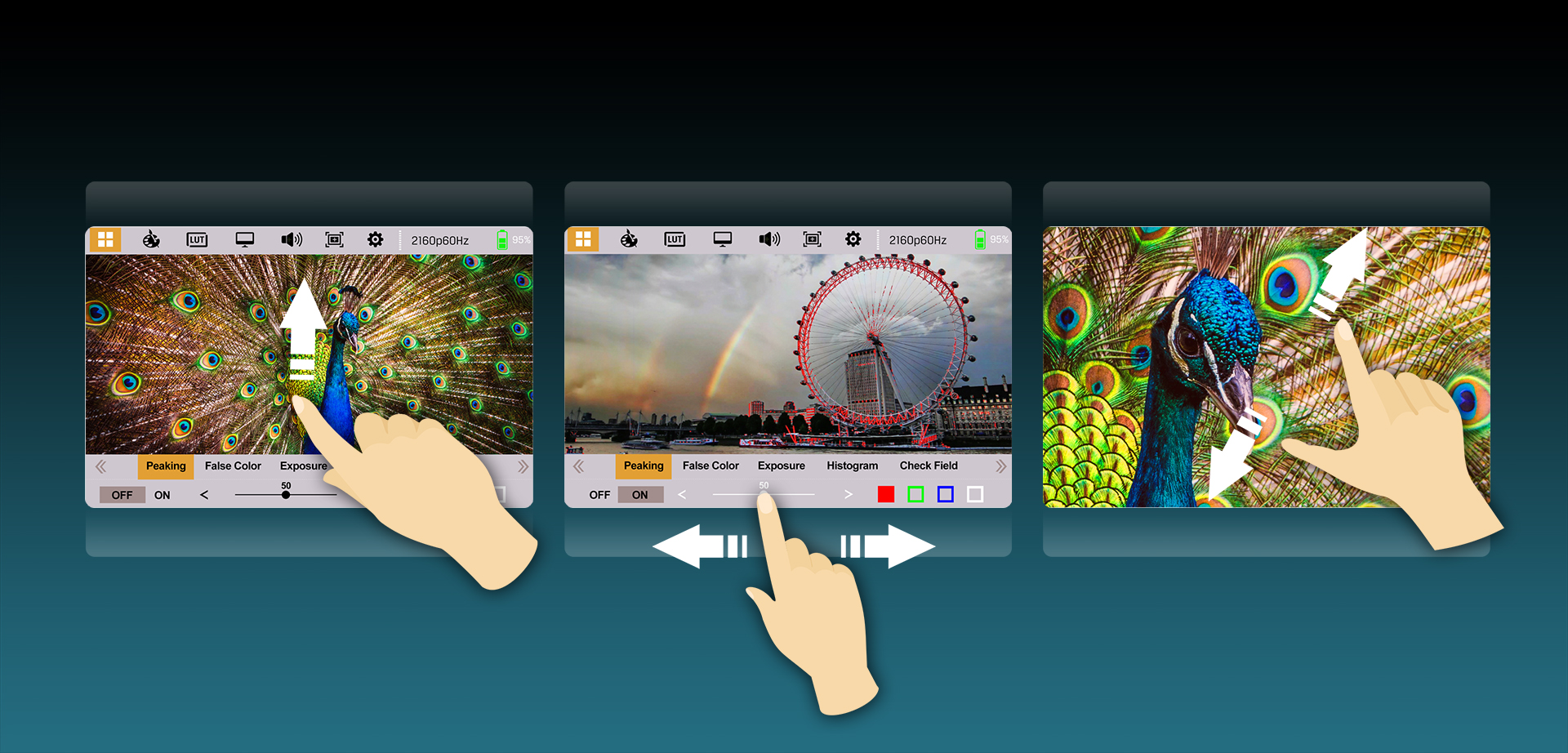

Calling Out Menu
Swipe the screen panel up or down quickly will summon the menu. Then repeat action to close the menu.
Quick Adjustment
Quickly select the function on or off from the menu, or slide freely to adjust the value.
Zoom In Anywhere
You can slide on the screen panel with two fingers anywhere to enlarge the image, and easy drag it to any position.
Penetratingly Minute
Creatively integrated the 1920×1080 native resolution (441ppi), 1000:1 contrast, and 400cd/m² into a 5 inch LCD panel, which is far beyond from retina identification.

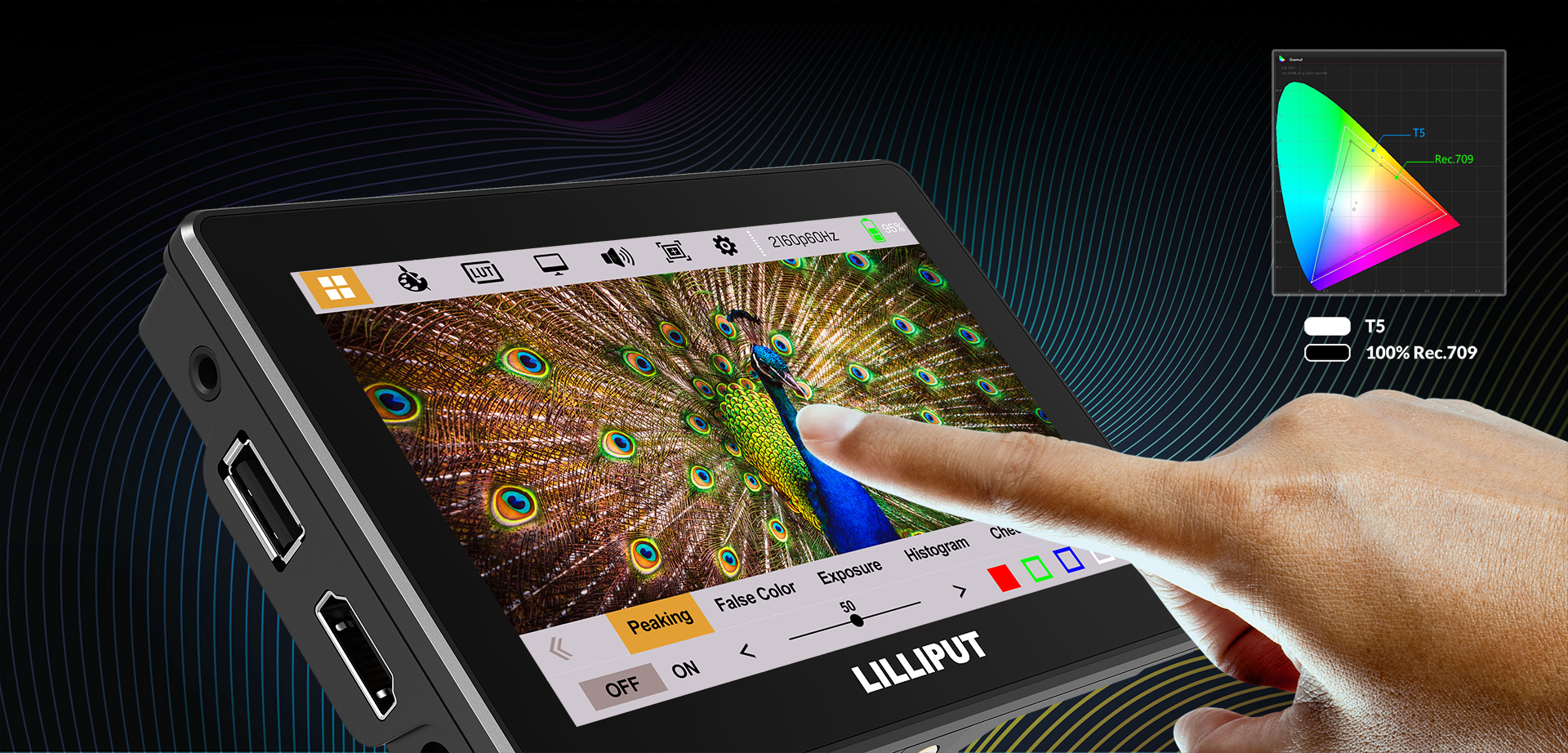

Excellent Color Space
Cover 131% Rec.709 color space, accurately reflect the original colors of an A+ level screen.
HDR
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly. Effectively enhancing the overall picture quality. Support ST 2084 300 / ST 2084 1000 / ST2084 10000 / HLG.

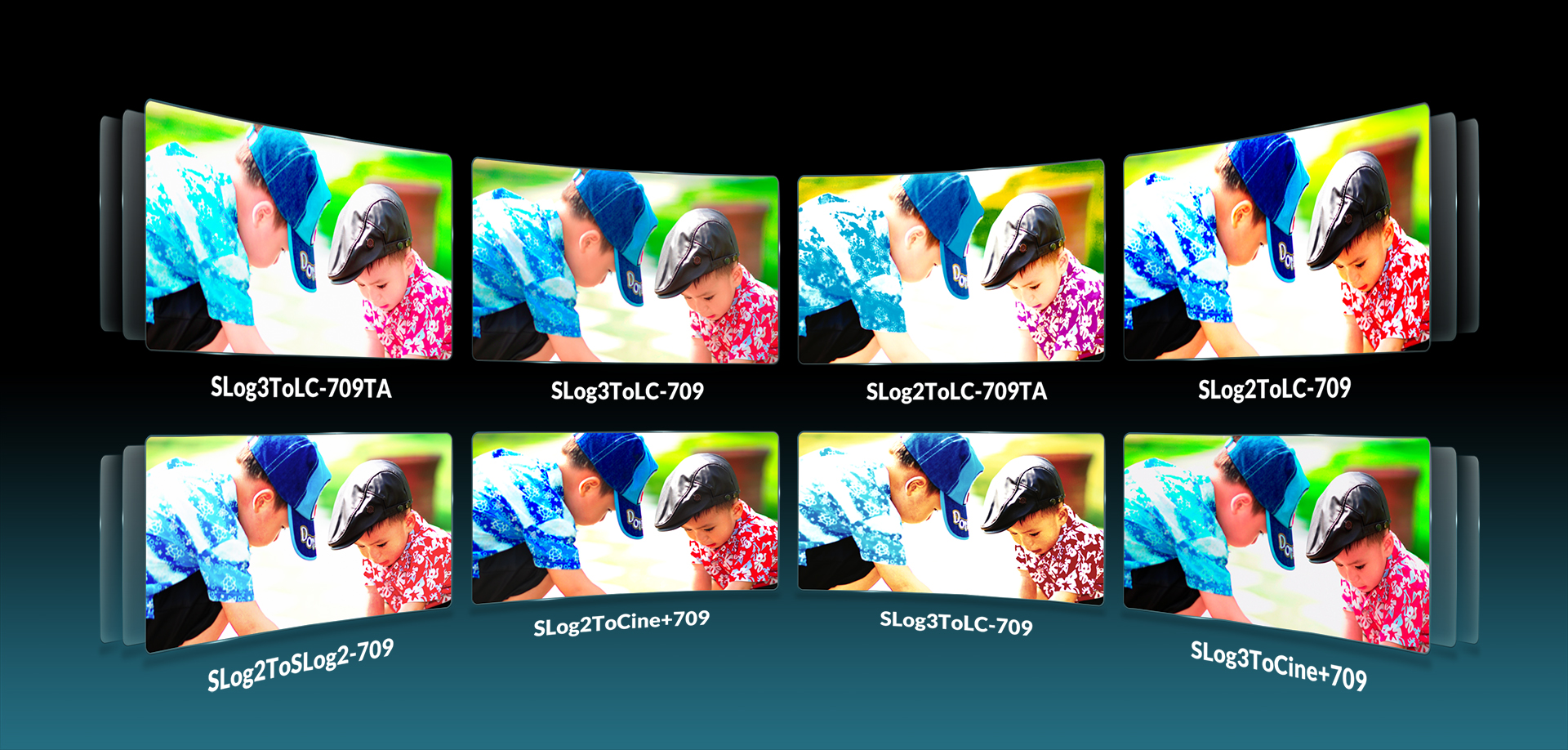

3D LUT
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 3D-LUT, featuring 8 default logs and 6 user logs.Supports loading the .cube file via USB flash disk.

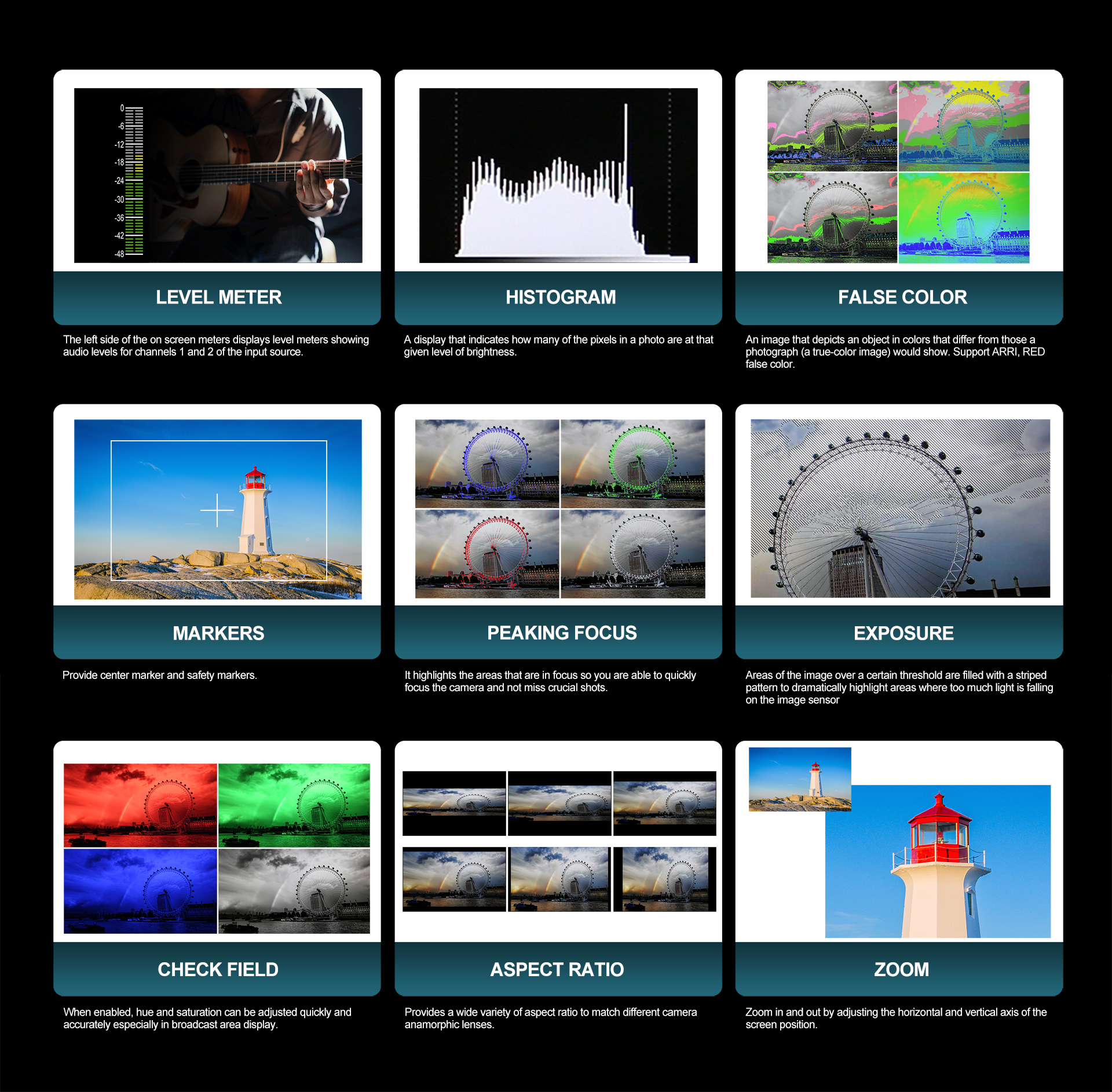

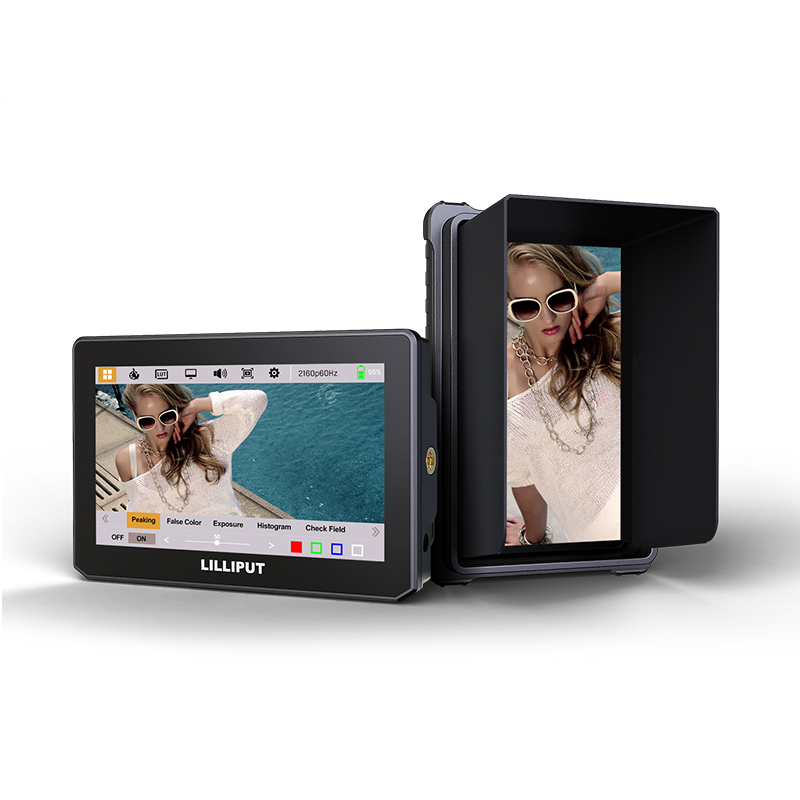

Camera Auxiliary Functions
Povides plenty of auxiliary functions for taking photos and making movies, such as peaking, false color and audio level meter.
| Display | |
| Size | 5” IPS |
| Resolution | 1920 x 1080 |
| Brightness | 400cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 1000:1 |
| Viewing Angle | 170°/170°(H/V) |

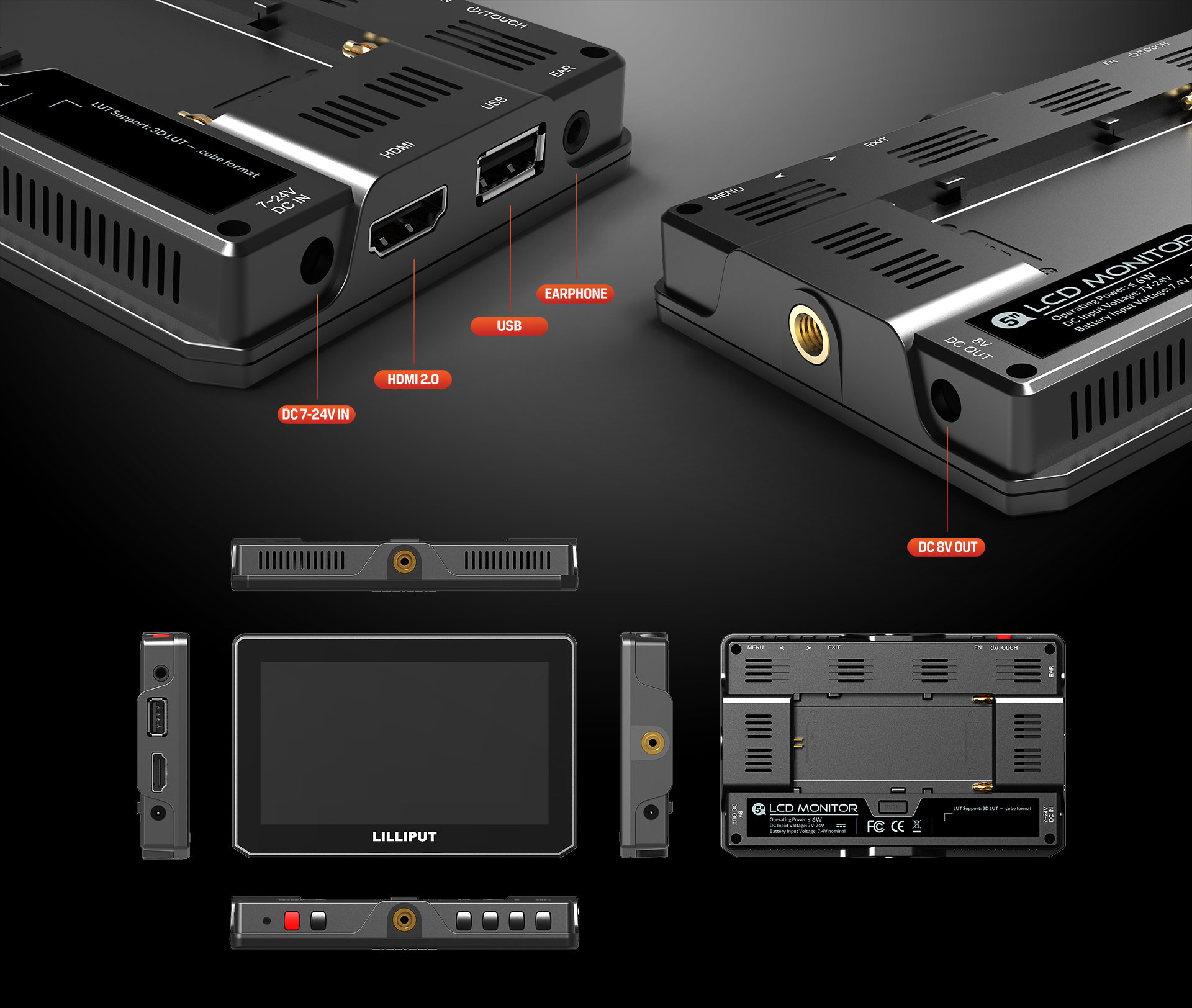

| Video Input | |
| HDMI | 1×HDMI 2.0 |
| Supported Formats | |
| HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… |
| Audio In/Out | |
| HDMI | 8ch 24-bit |
| Ear Jack | 3.5mm – 2ch 48kHz 24-bit |

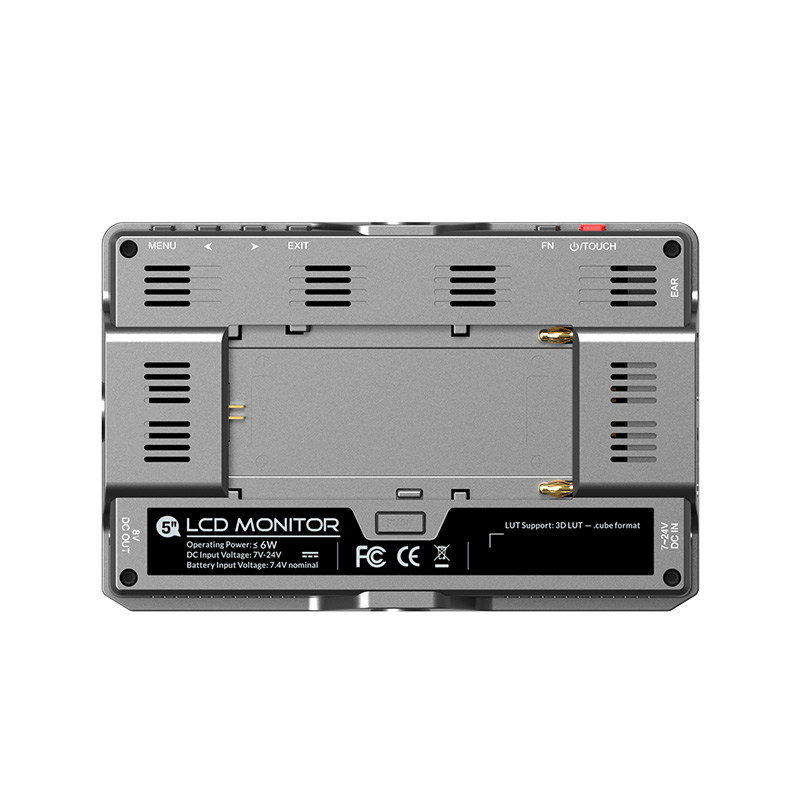

| Power | |
| Power Consumption | ≤6W / ≤17W (DC 8V power output in operation) |
| Input voltage | DC 7-24V |

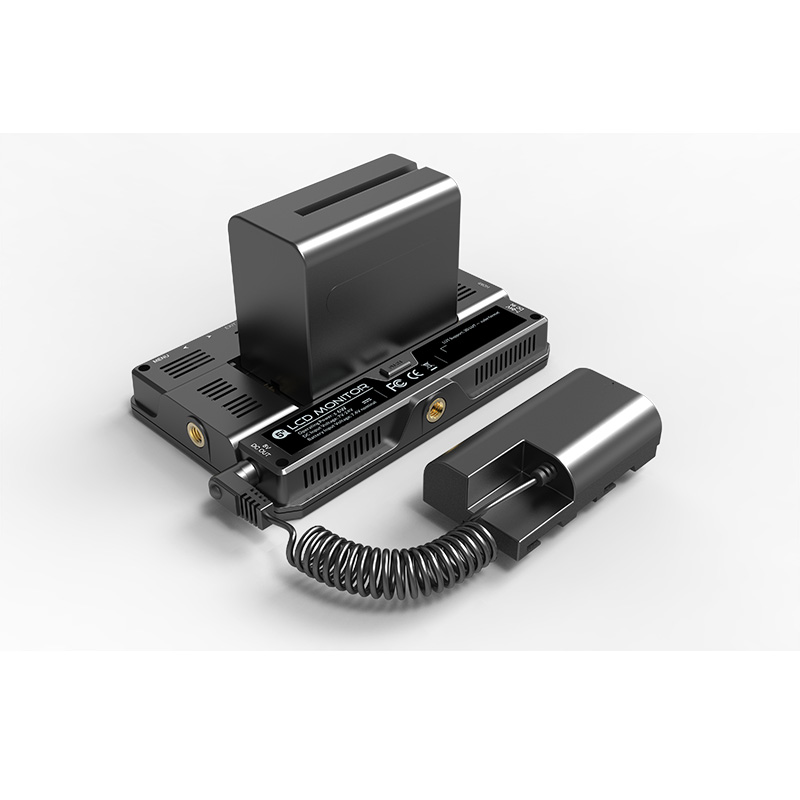

| Compatible batteries | Canon LP-E6 & Sony F-series |
| Power Output | DC 8V |
| Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -10℃~60℃ |
| Other | |
| Dimension(LWD) | 132×86×18.5mm |
| Weight | 200g |
