A7S A7S A7S A7S A7S

Key Features

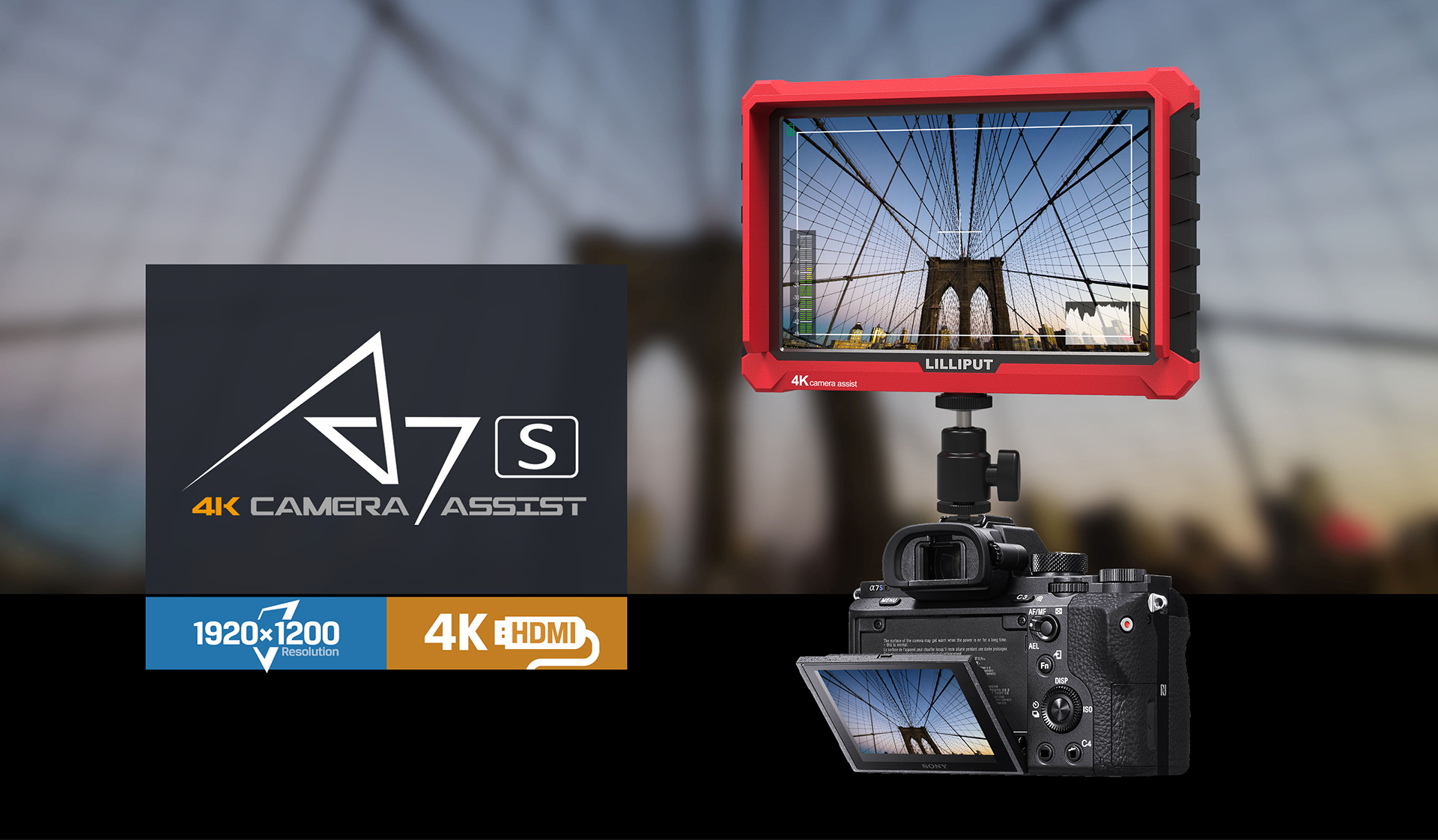

  • 7 inch 1920 x 1200 IPS display, 500 cd/m², 1000:1 contrast, 16:10 aspect ratio
  • 1x HDMI 1.4 input and loop output — 4K passthrough (2160p 24/25/30)
  • 320 g; 182.1 x 124 x 20.5 mm; ultra-slim 20 mm profile
  • Shoe mount: 1/4 inch British Standard Whitworth (BSW) thread
  • NP-F (F970) and LP-E6 battery compatible; F1/F2 user-definable (peaking, level meter, false colour, etc.)

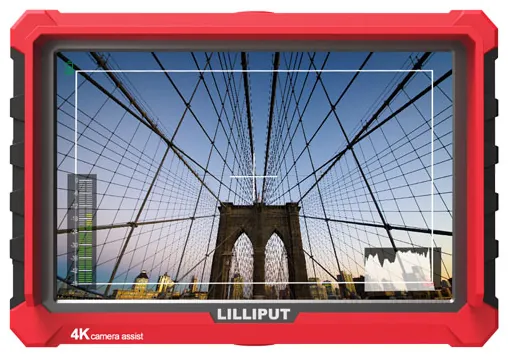

  • Centre marker, aspect marker, safety marker, peaking, false colour, exposure, histogram, level meter; DSLR presets (5D2, 5D3)

Product Enquiry

Request a quote or ask a question about the A7S. Our UK team will respond promptly.

Technical Data

Display

Screen size7 inch
Aspect ratio16:10
Native resolution1920 x 1200
Panel typeIPS
Brightness500 cd/m²
Contrast1000:1
Viewing angle170°/170° (H/V)
Colour spaceITU-R BT.709

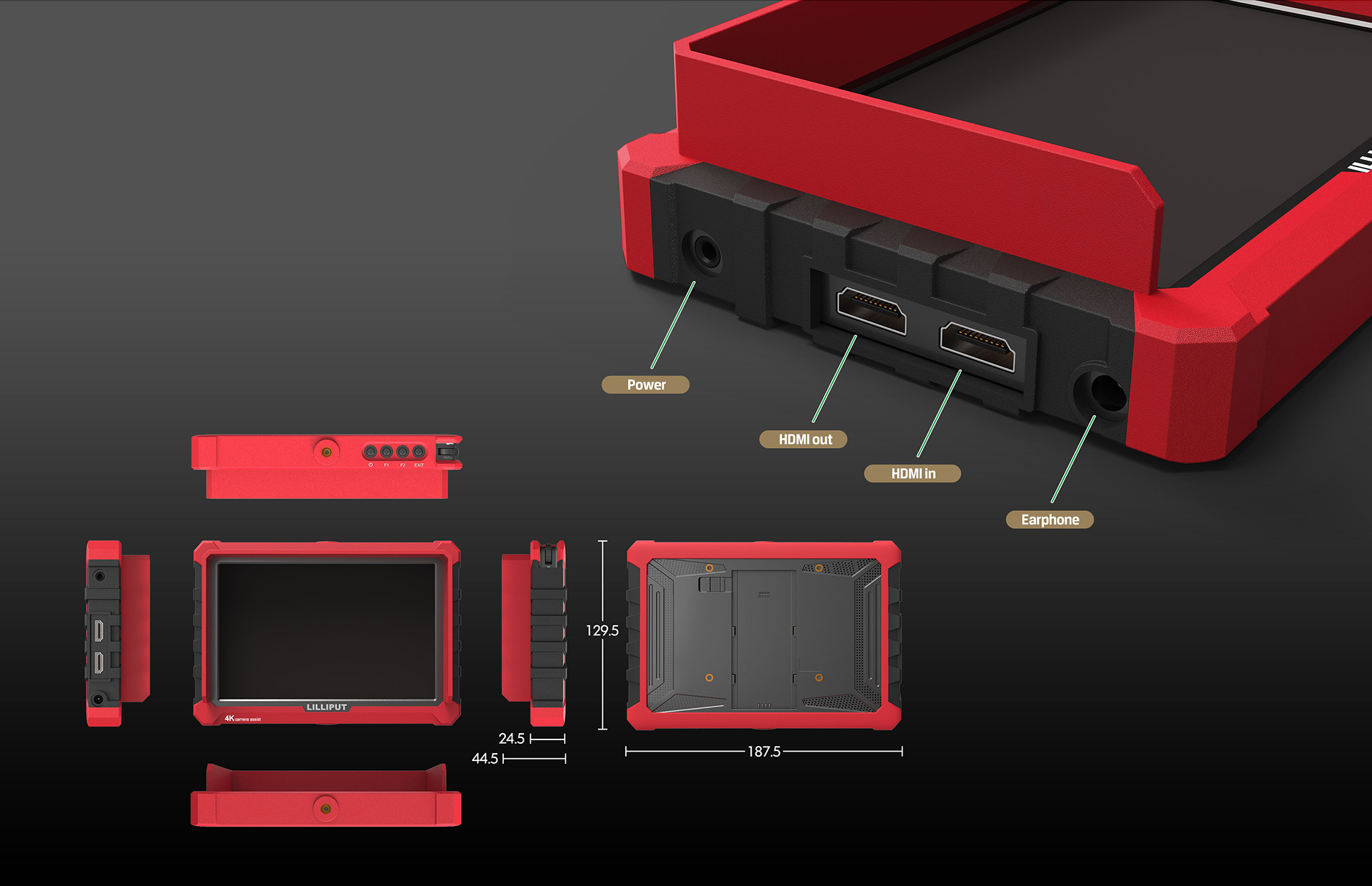

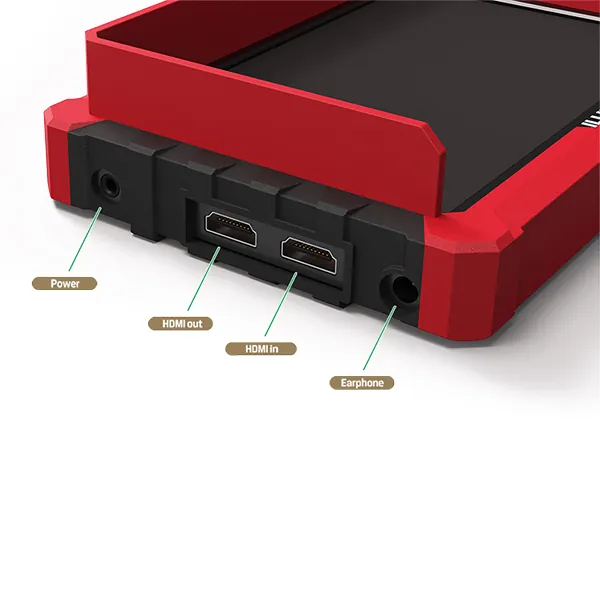

Connections

Video inputs1x HDMI 1.4
Video outputs1x HDMI 1.4
AudioHDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), Built-in speaker x 1

Video Standards

HDMI720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30

Scopes

Video analysisPeaking, False colour, Exposure, Histogram
Audio analysisLevel meter

Operational Features

Function buttonsUser-definable (peaking, level meter, centre marker, aspect marker, false colour, exposure, histogram, etc.)

Power

Input voltageDC 7 to 24V
Power consumption≤12 W
Compatible batteriesSony NP-F (F970), Canon LP-E6
Input voltage (battery)7.2V nominal

Environmental

Operating temperature0°C to 50°C
Storage temperature-20°C to 60°C

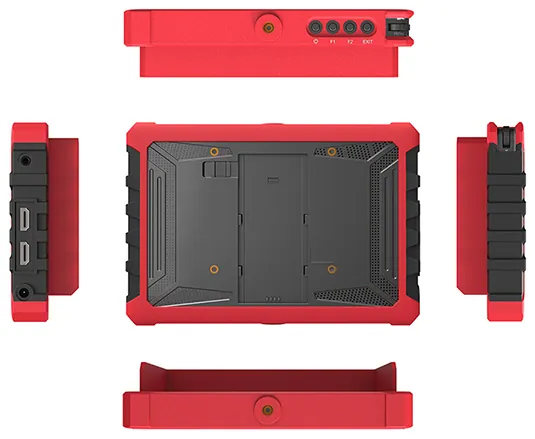

Mechanical

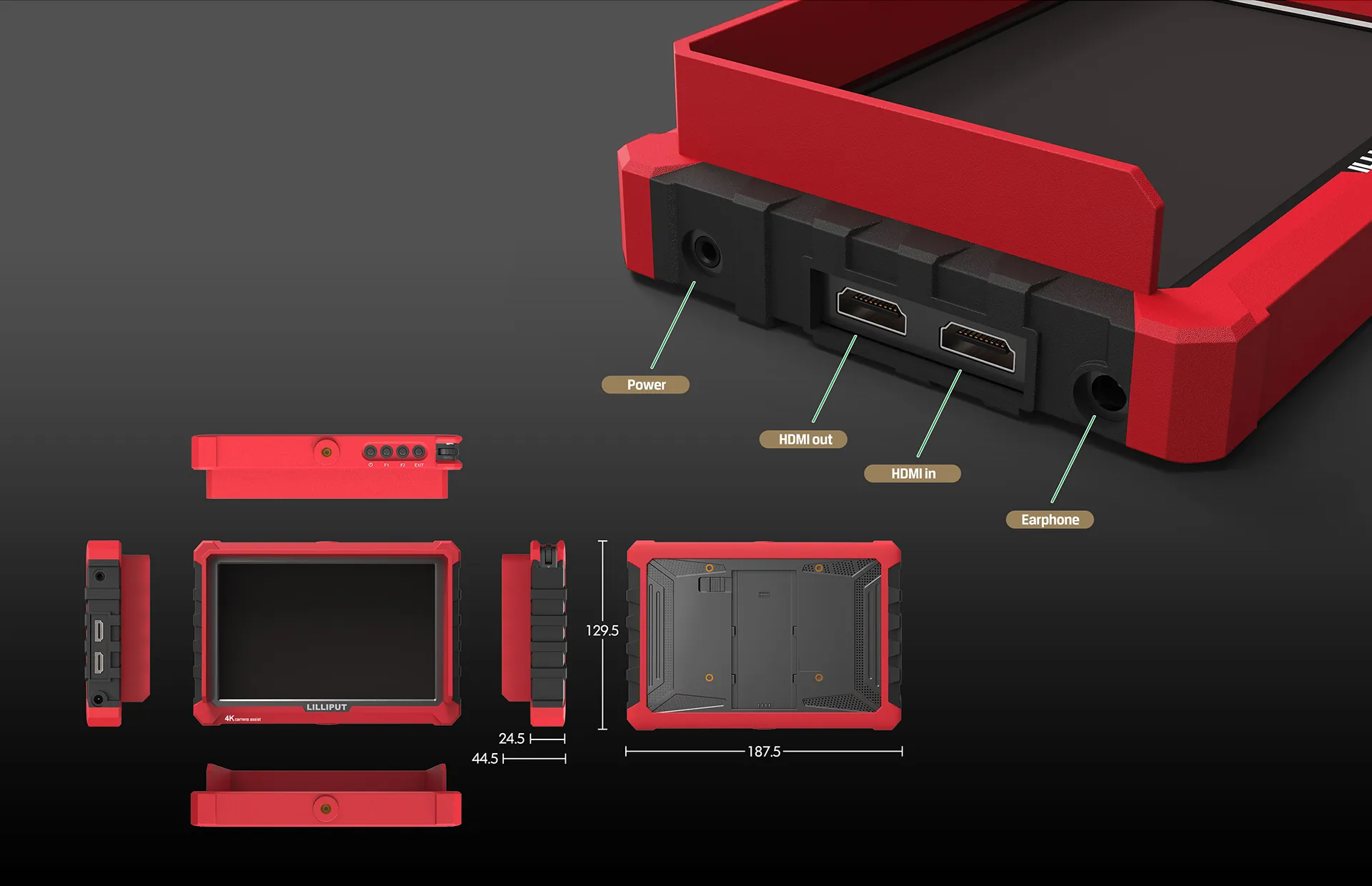

Dimensions182.1 x 124 x 20.5 mm
Weight320 g

Mounting

Shoe mount1/4 inch British Standard Whitworth (BSW) thread

Accessories

Included

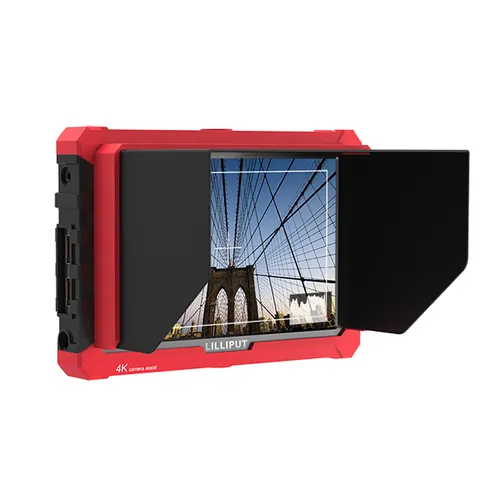

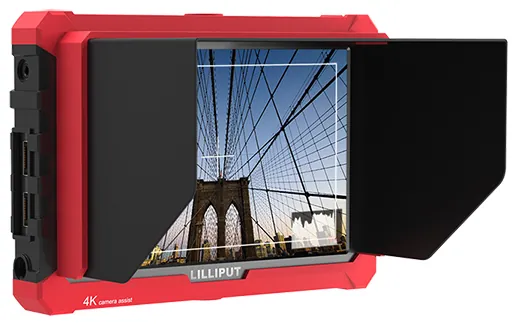

  • Folding sun shade

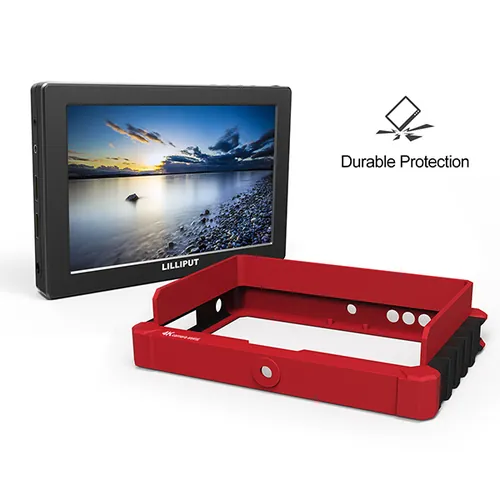

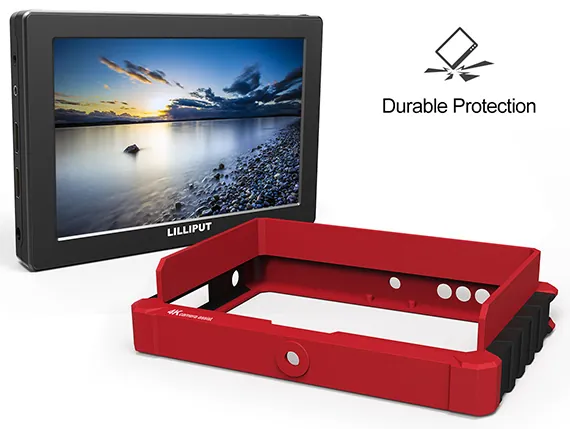

  • Silicone rubber case
  • HDMI A/C cable
  • Battery plate (F970)
  • Hot shoe mount
  • User manual

Product Downloads

Similar Products

Compare key technical data across similar products.

Technical Data A7S Q7-12G HT7S FS7 FS5 A5 HT5S
Display
Screen size 7 inch 7 inch 7 inch 7 inch 5.4 inch 5 inch 5.5 inch
Native resolution 1920 x 1200 1920 x 1200 1920 x 1200 1920 x 1200 1920 x 1200 1920 x 1080 1920 x 1080
Aspect ratio 16:10 16:10 16:10 16:10 16:10 16:9 16:9
Brightness 500 cd/m² 2000 cd/m² 2000 cd/m² 500 cd/m² 600 cd/m² 400 cd/m² 2000 cd/m²
Colour space ITU-R BT.709 — 100% BT.709 ITU-R BT.709 — ITU-R BT.709 100% BT.709
Contrast 1000:1 1200:1 1200:1 1000:1 1100:1 1000:1 1000:1
HDR — ST 2084 300/1000/10000 cd/m², HLG ST 2084 300/1000/10000 cd/m², HLG — ST 2084 300/1000/10000 cd/m², HLG — ST 2084 300/1000/10000 cd/m², HLG
LUT support — 3D-LUT (.cube format) — — 3D-LUT (.cube format) — —
Panel type IPS LCD LCD IPS LTPS IPS LCD
Supported log formats — SLog2/SLog3, CLog, NLog, ArriLog, JLog or User — — SLog2/SLog3, ArriLog, CLog, JLog, VLog, NLog or User — —
Touch screen — — Capacitive touch — — — Capacitive touch
Viewing angle 170°/170° (H/V) 170°/170° (H/V) 160°/160° (H/V) 170°/170° (H/V) 160°/160° (H/V) 170°/170° (H/V) 160°/160° (H/V)
Connections
Video inputs 1x HDMI 1.4 2x 12G-SDI, 1x HDMI 2.0 (4K 60Hz), 1x Tally 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) 1x 3G-SDI, 1x HDMI 1.4 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) 1x HDMI 1.4 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz)
Video outputs 1x HDMI 1.4 2x 12G-SDI, 1x HDMI 2.0 (4K 60Hz) 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) 1x 3G-SDI, 1x HDMI 1.4 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) 1x HDMI 1.4 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz)
Audio HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), Built-in speaker x 1 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speaker x 1 Built-in speaker x 1, 3.5 mm ear jack (2ch 48kHz 24-bit), HDMI 8ch 24-bit 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), Built-in speaker x 1 Built-in speaker x 1, 3.5 mm ear jack x 1 HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), Built-in speaker x 1 Built-in speaker x 1, 3.5 mm ear jack (2ch 48kHz 24-bit), HDMI 8ch 24-bit
Video Standards
3G-SDI — 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 — 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
Operational Features
Camera control — — LANC (Sony S-Lanc compatible) — — — LANC (Sony S-Lanc compatible)
Function buttons User-definable (peaking, level meter, centre marker, aspect marker, false colour, exposure, histogram, etc.) User-definable (default: Peaking) — User-definable (peaking, level meter, centre marker, aspect marker, false colour, exposure, histogram, etc.) — User-definable (peaking, waveform, histogram, false colour, exposure, centre marker, aspect marker, etc.) —
Time code — — — — LTC, VITC — —
Touch gestures — — Centre swipe: menu; left/right swipe: backlight/volume; two-finger zoom — — — Centre swipe: menu; left/right swipe: backlight/volume; two-finger zoom
Power
Compatible batteries Sony NP-F (F970), Canon LP-E6 Sony NP-F (F970) via VESA 75 plate Sony NP-F series Sony NP-F (F970), Canon LP-E6 Sony NP-F, Canon LP-E6 Sony NP-F (F970), Canon LP-E6 Sony NP-F series
Current — — — — 0.75 A (12V) — —
Input voltage DC 7 to 24V DC 7 to 24V DC 7 to 24V DC 7 to 24V DC 7 to 24V DC 7 to 24V DC 7 to 24V
Input voltage (battery) 7.2V nominal — — 7.2V nominal — 7.2V nominal —
Power consumption ≤12 W ≤20 W (12V) ≤16 W (15V) ≤12 W ≤9 W ≤9 W ≤14 W (15V)
Mechanical
Dimensions 182.1 x 124 x 20.5 mm 186 x 128 x 32.5 mm 186 x 128 x 29 mm 182 x 124 x 22 mm 154.5 x 90 x 20 mm 129.6 x 80.1 x 23.6 mm 154.8 x 93.8 x 26.5 mm
Weight 320 g 785 g 520 g 405 g 295 g 118 g 310 g
Mounting
Gimbal bracket — Included — — — — —
Mini hot shoe — Compatible — — — — —
Shoe mount 1/4 inch British Standard Whitworth (BSW) thread — 1/4 inch thread 1/4 inch British Standard Whitworth (BSW) thread 1/4 inch British Standard Whitworth (BSW) thread 1/4 inch British Standard Whitworth (BSW) thread 1/4 inch thread
VESA mount — VESA 75 mm (battery plate included) — — — — —
Other
Included Folding sun shade, Silicone rubber case, HDMI A/C cable, Battery plate (F970), Hot shoe mount, User manual 12V 2A DC power adapter, Suitcase, Gimbal bracket, VESA 75 mm F970 battery plate, Tally connector, User manual 0.8 m HDMI A-D cable, LANC cable, Mini shoe mount, USB drive disk 12V DC adapter, Sun shade, HDMI A/C cable, Shoe mount, NP-F series battery plate, User manual 12V 2A DC power adapter, 0.8 m HDMI A-C cable, Battery plate (NP-F / LP-E6), Silicone case, Sunshade, Hot shoe mount, Mini USB to USB-A connector Sun Shade, HDMI A/C Cable, Shoe Mount, User Manual 0.8 m HDMI A-D cable, LANC cable, Mini shoe mount, USB drive disk
Optional — — 12V 2A DC power adapter, Battery plate adapter, Wireless video transmission, Carry-on bag VESA mount plate, V-Lock / Anton Bauer battery mount — — 12V 2A DC power adapter
Environmental
Operating temperature 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C -20°C to 50°C -20°C to 50°C 0°C to 50°C
Storage temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -30°C to 70°C -30°C to 70°C -20°C to 60°C
Scopes
Audio analysis Level meter Level meter Level meter Level meter Audio vector, Level meter Level meter Level meter
Video analysis Peaking, False colour, Exposure, Histogram Waveform, Peaking, False colour, Exposure, Histogram Waveform (Multi, Y, YCbCr, RGB), Vector, Peaking, False colour, Exposure, Histogram Peaking, False colour, Exposure, Histogram Waveform, Vector, Peaking, Histogram, False colour Peaking, False colour, Exposure, Histogram Waveform (Multi, Y, YCbCr, RGB), Vector, Peaking, False colour, Exposure, Histogram

Compare all technical data

Ready to order?

7 inch on-camera monitor. 1920 x 1200, 500 cd/m², 4K HDMI passthrough. Shoe mount with 1/4 inch BSW thread for film and broadcast.
