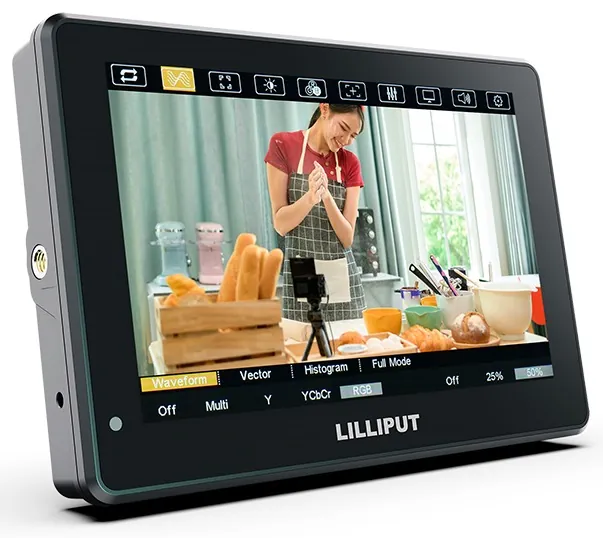

HT7S HT7S HT7S HT7S HT7S HT7S HT7S HT7S

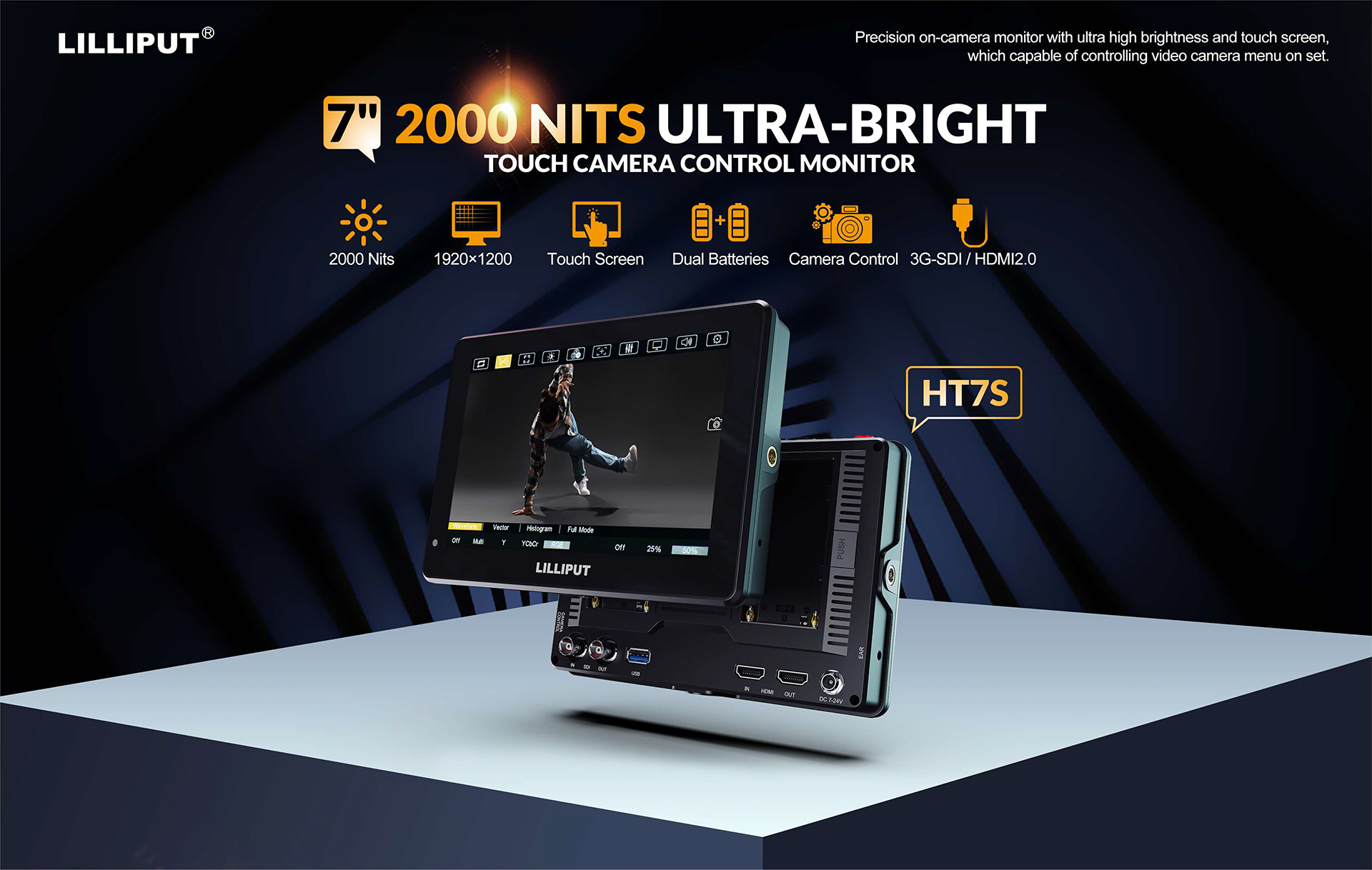

Key Features

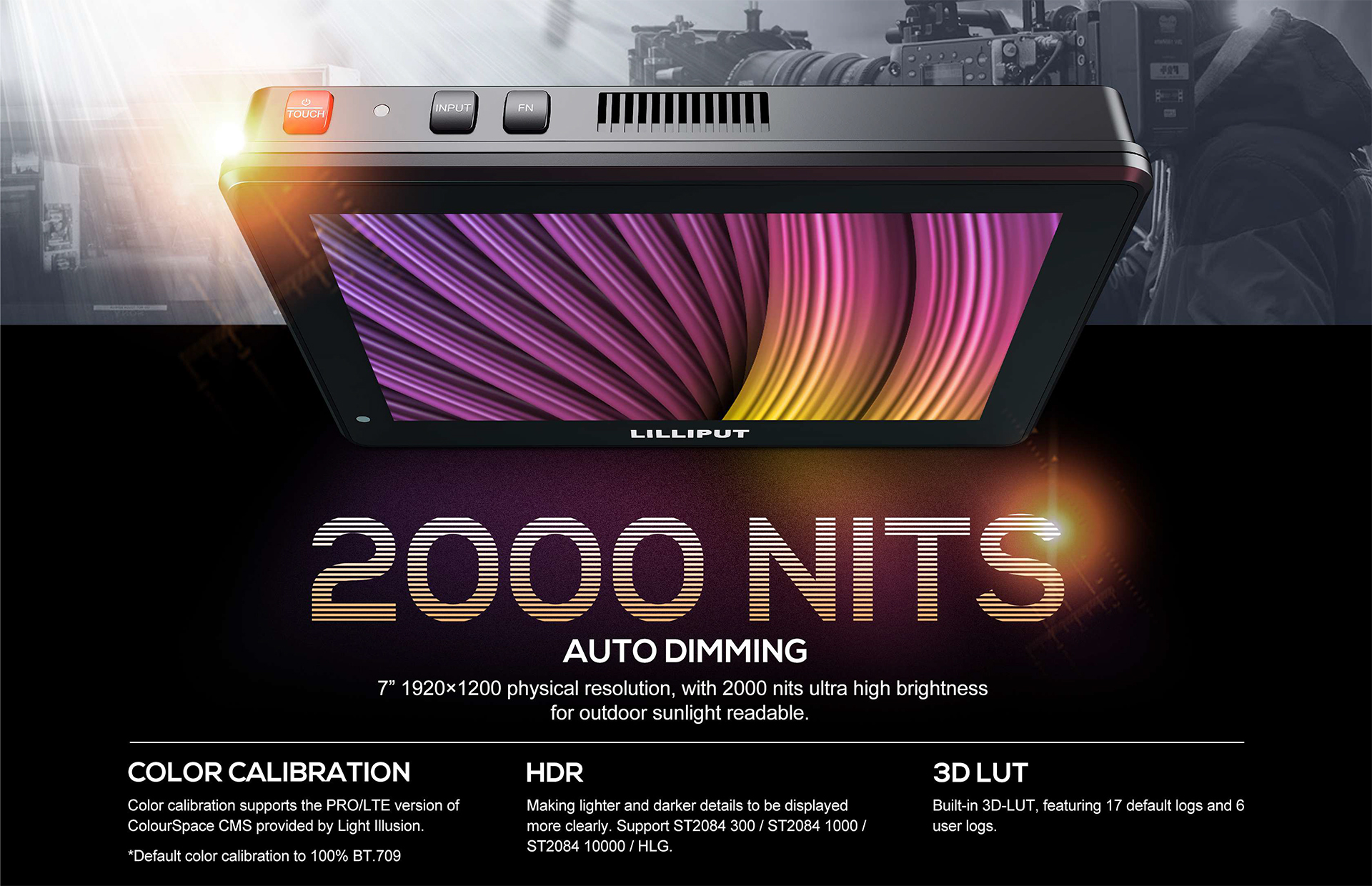

  • 7 inch 1920 x 1200 LCD display, 2000 cd/m² high brightness, 1200:1 contrast, 100% BT.709, 16:10 aspect ratio

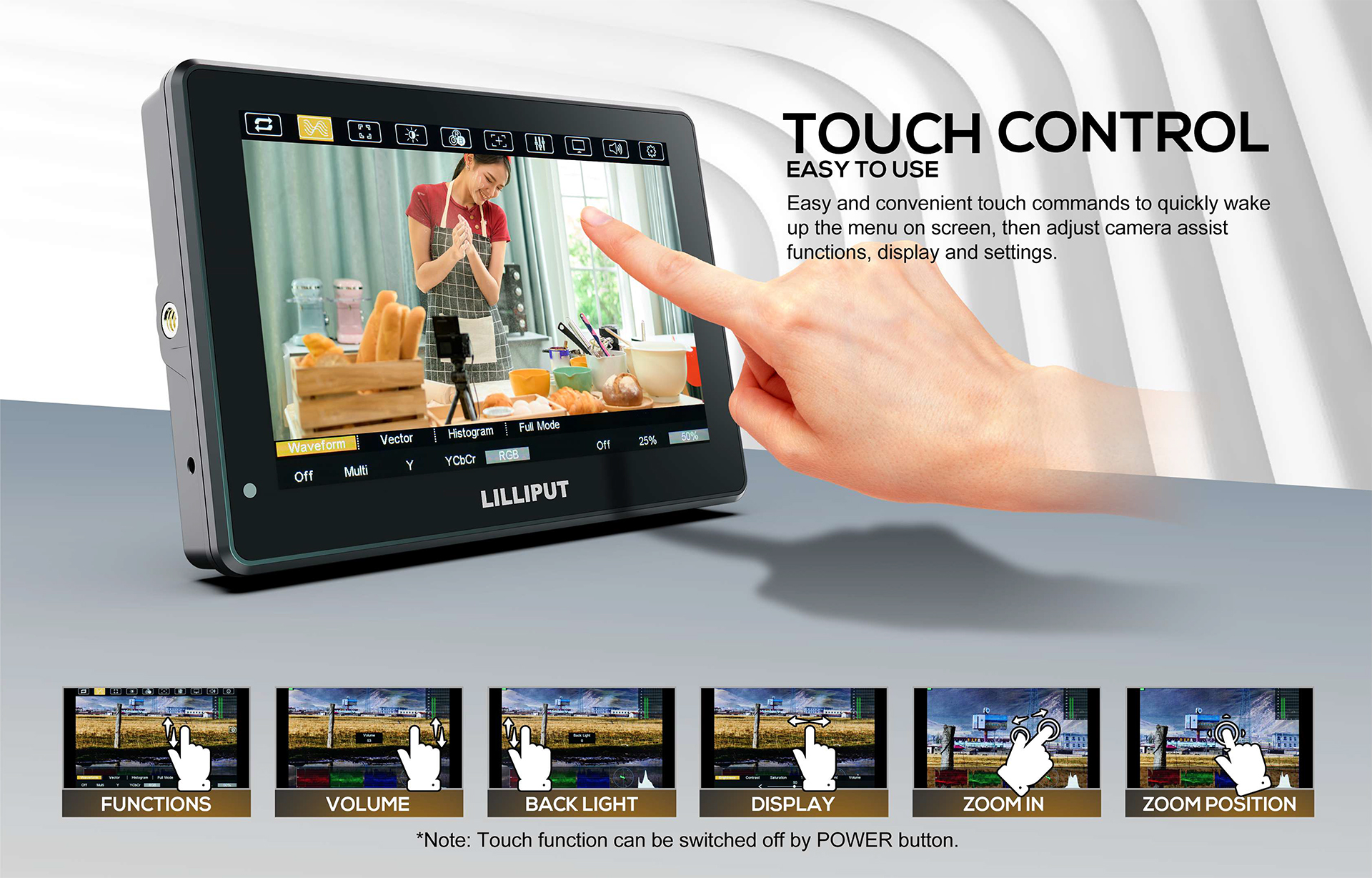

  • Capacitive touch screen — menu control via touch gestures; shortcut swipes for backlight, volume, zoom

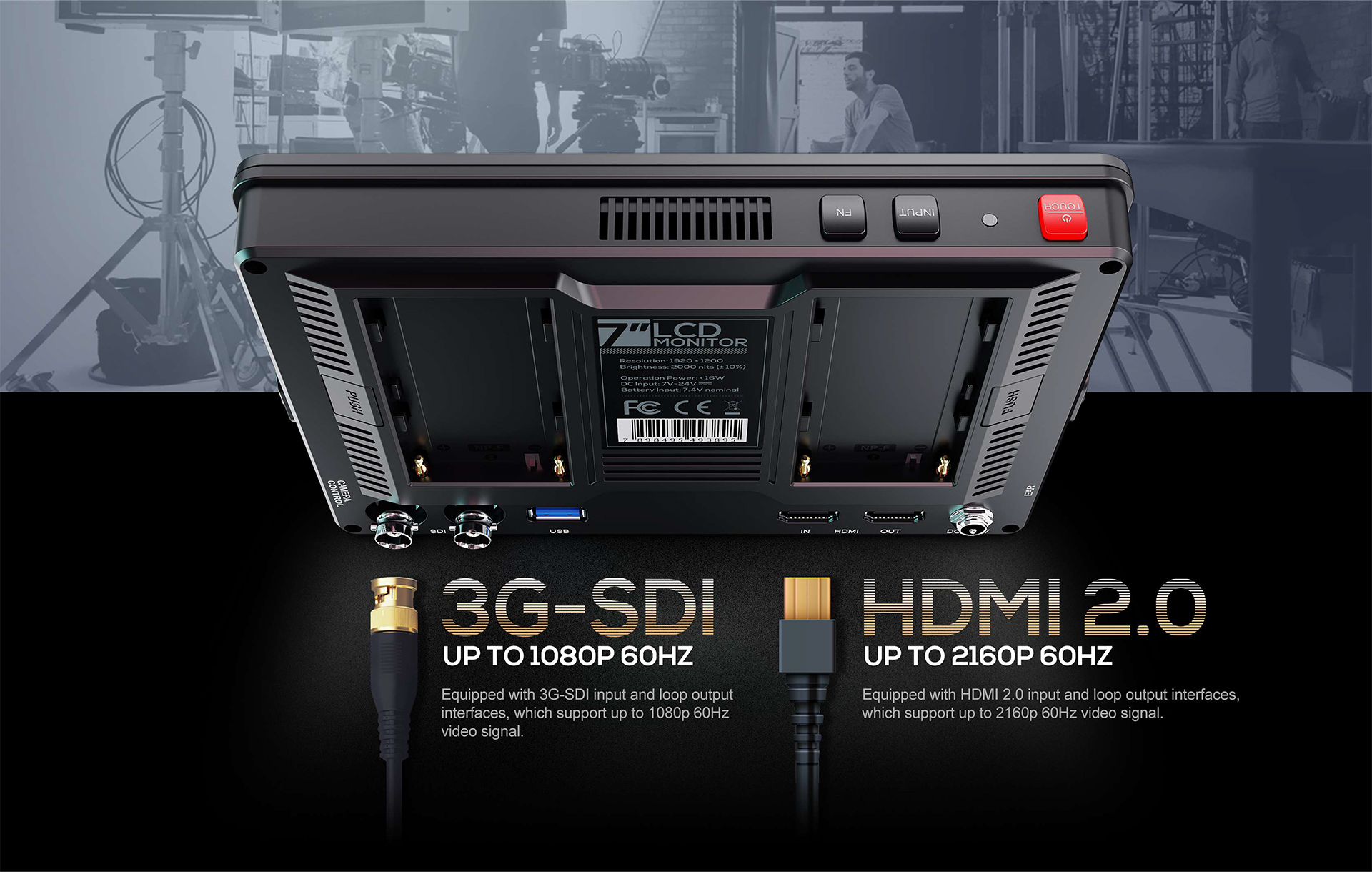

  • 1x 3G-SDI and 1x HDMI 2.0 input/output — 4K 60Hz support
  • HDR ST 2084 (300/1000/10000 cd/m²) and HLG; 3D LUT (.cube); 17 default camera logs plus 6 user LUTs

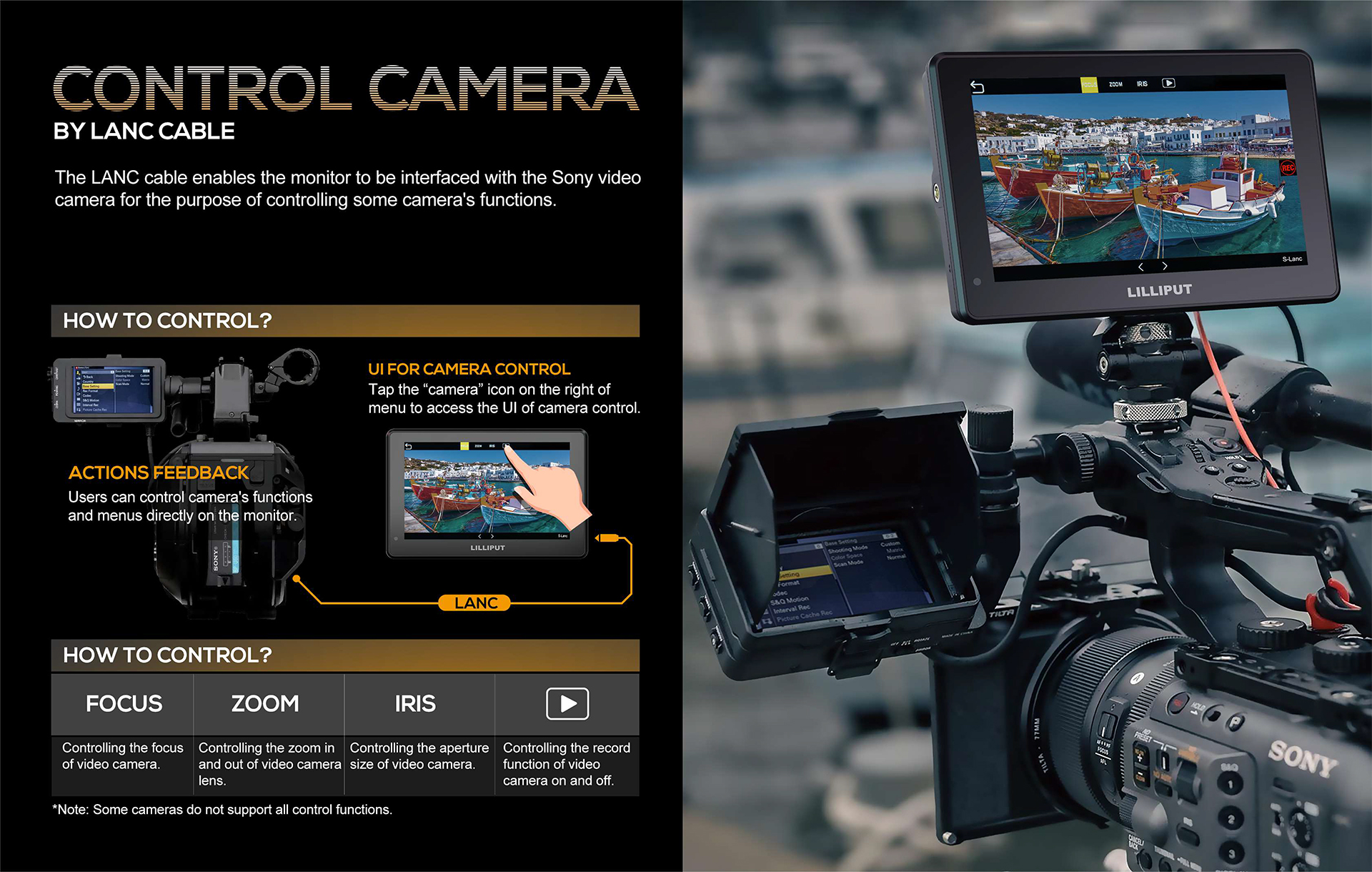

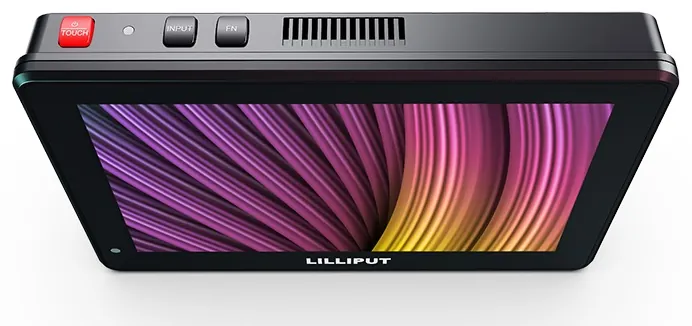

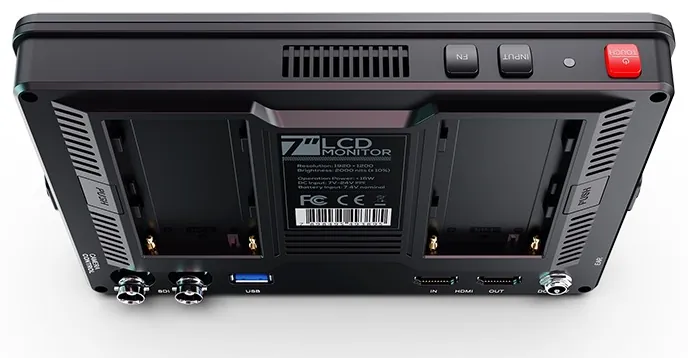

  • LANC port for Sony camera control; FN user-definable function button; dual battery plate
  • 520 g; 186 x 128 x 29 mm; shoe mount 1/4 inch thread; NP-F battery compatible

Product Enquiry

Request a quote or ask a question about the HT7S. Our UK team will respond promptly.

Technical Data

Display

Screen size7 inch
Aspect ratio16:10
Native resolution1920 x 1200
Panel typeLCD
Brightness2000 cd/m²
Contrast1200:1
Viewing angle160°/160° (H/V)
Colour space100% BT.709
HDRST 2084 300/1000/10000 cd/m², HLG
Touch screenCapacitive touch

Connections

Video inputs1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz)
Video outputs1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz)
AudioBuilt-in speaker x 1, 3.5 mm ear jack (2ch 48kHz 24-bit), HDMI 8ch 24-bit

Video Standards

3G-SDI1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60

Scopes

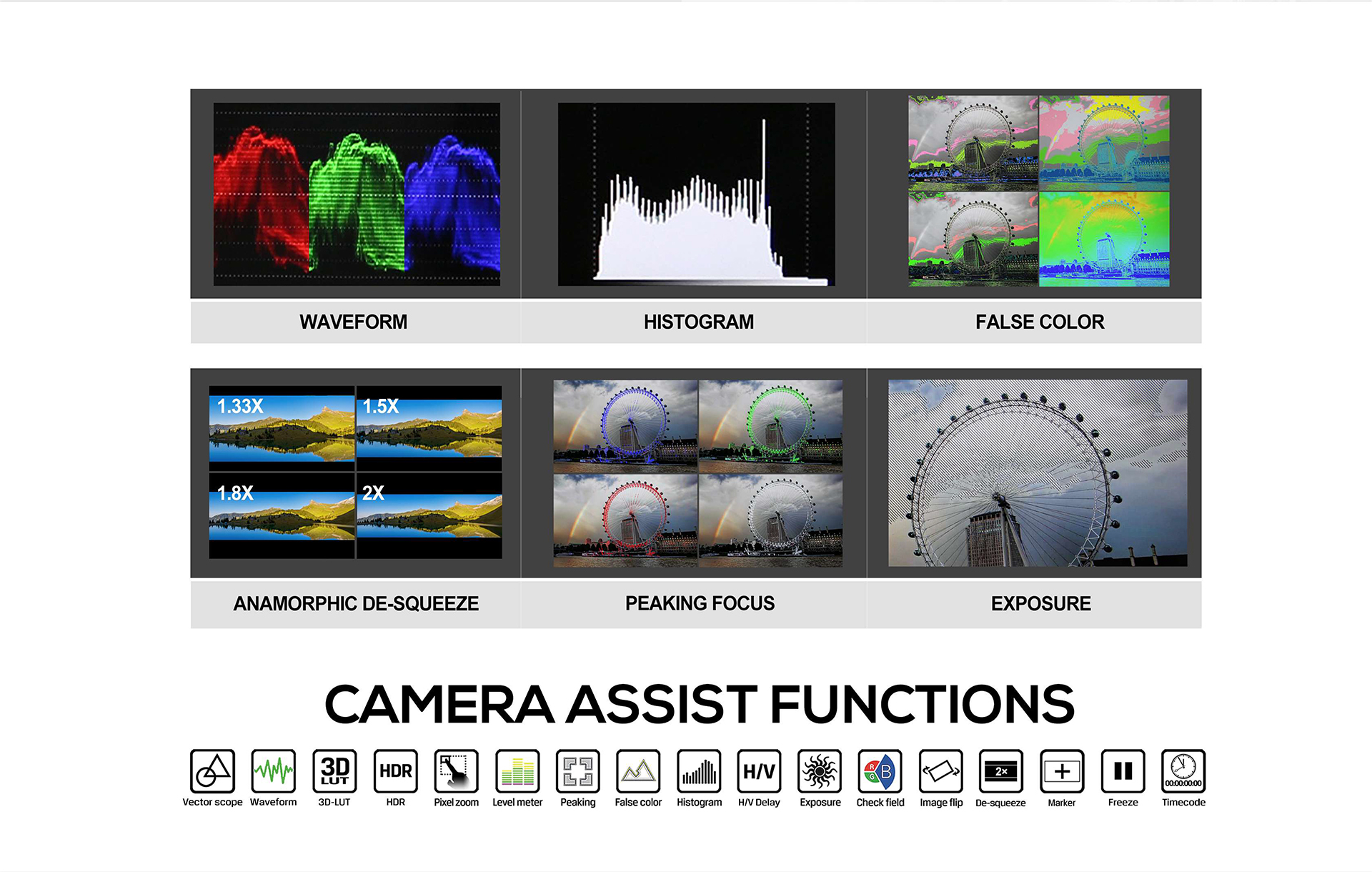

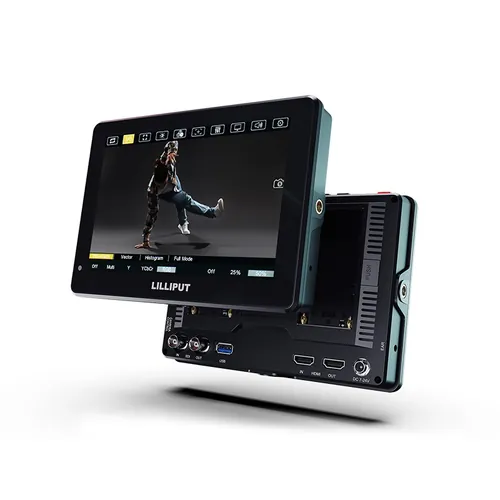

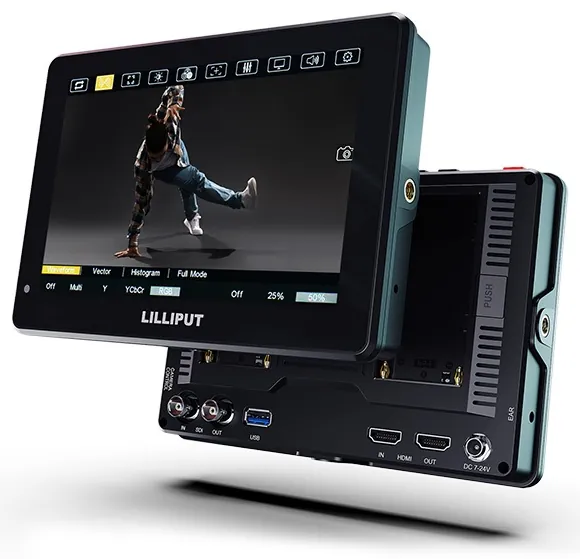

Video analysisWaveform (Multi, Y, YCbCr, RGB), Vector, Peaking, False colour, Exposure, Histogram
Audio analysisLevel meter

Operational Features

Touch gesturesCentre swipe: menu; left/right swipe: backlight/volume; two-finger zoom

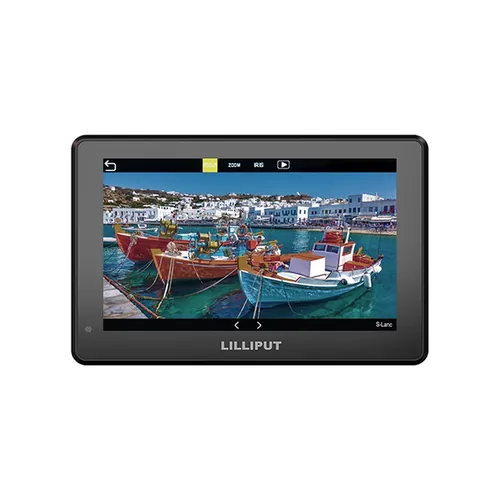

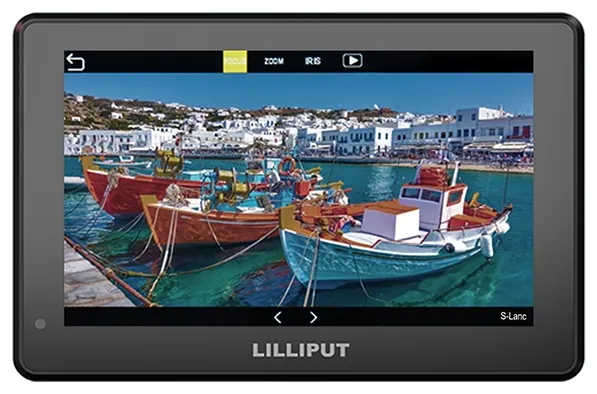

Camera controlLANC (Sony S-Lanc compatible)

Power

Input voltageDC 7 to 24V
Power consumption≤16 W (15V)
Compatible batteriesSony NP-F series

Environmental

Operating temperature0°C to 50°C
Storage temperature-20°C to 60°C

Mechanical

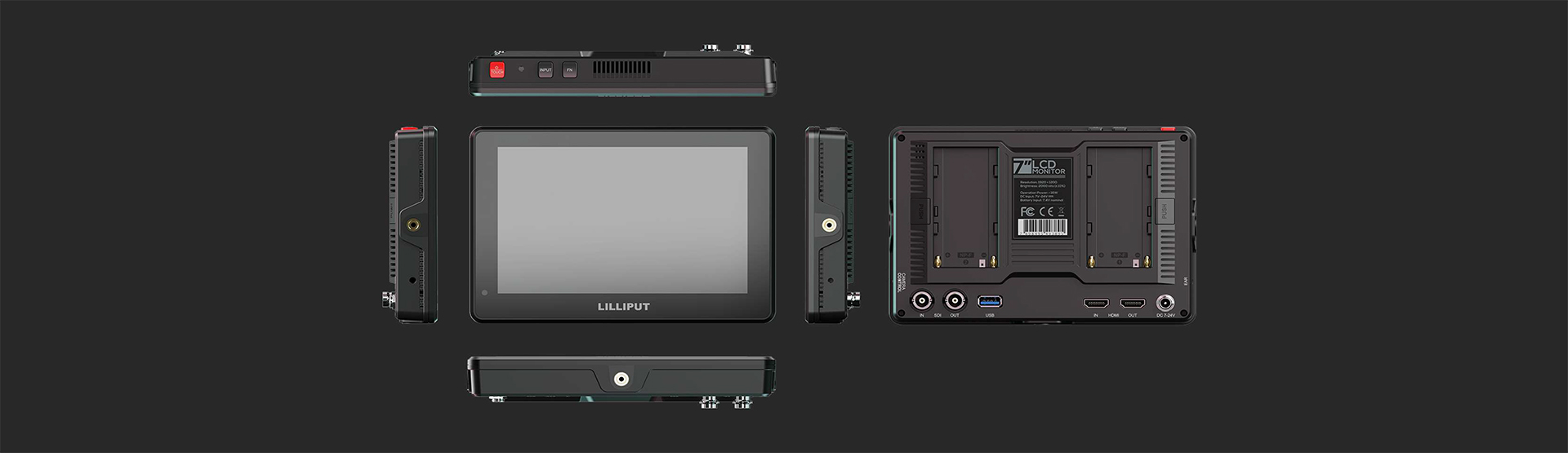

Dimensions186 x 128 x 29 mm
Weight520 g

Mounting

Shoe mount1/4 inch thread

Accessories

Included

  • 0.8 m HDMI A-D cable
  • LANC cable
  • Mini shoe mount
  • USB drive disk

Optional

  • 12V 2A DC power adapter

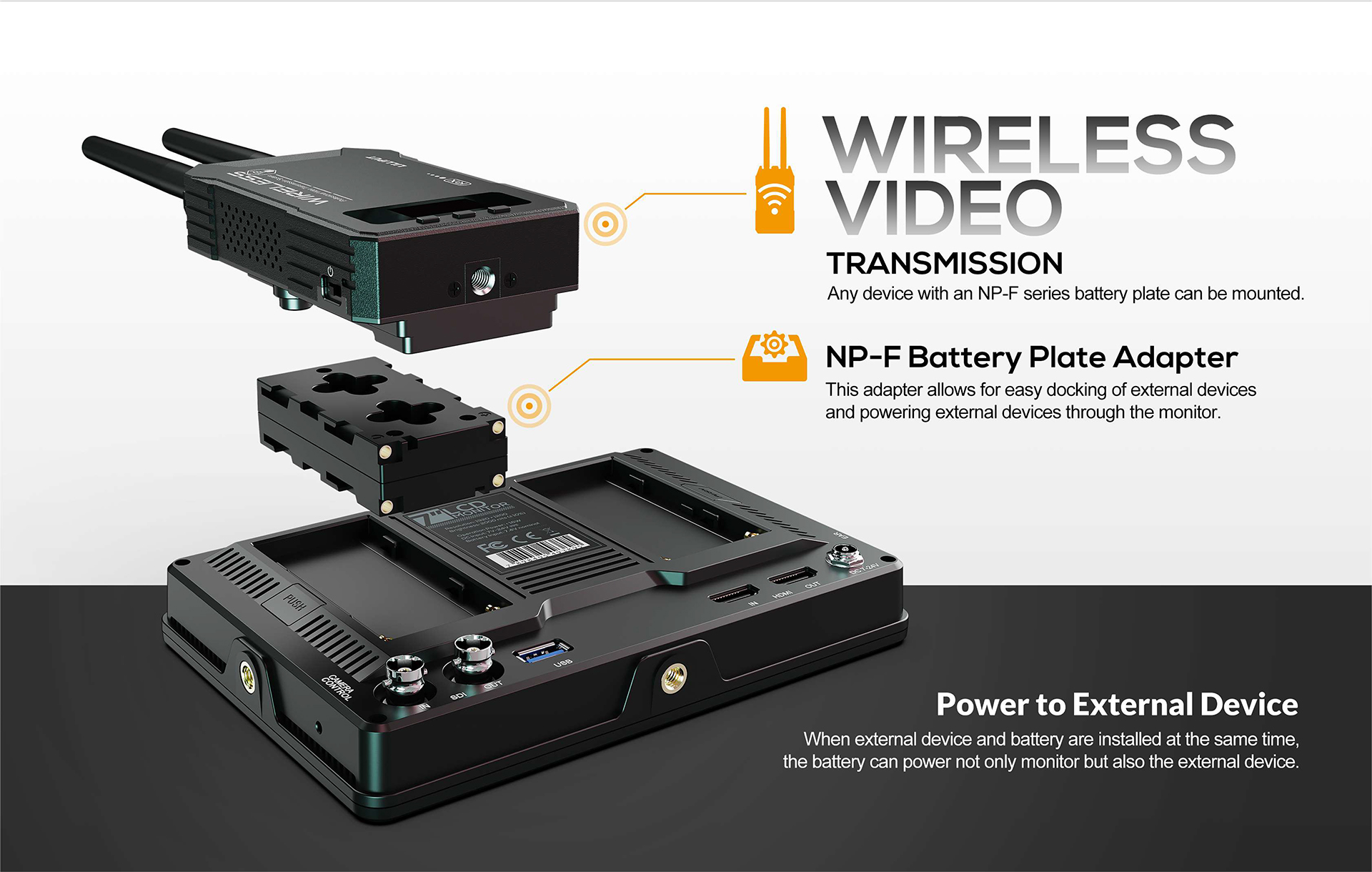

  • Battery plate adapter

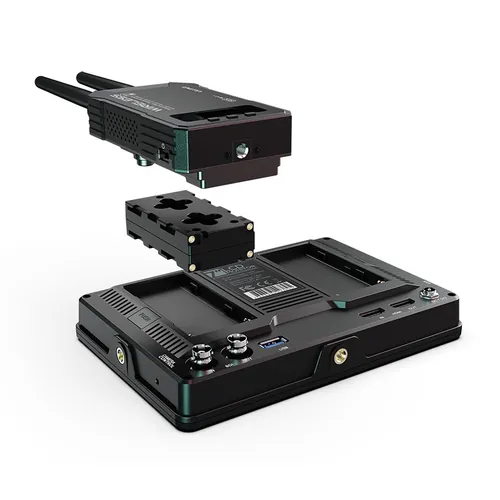

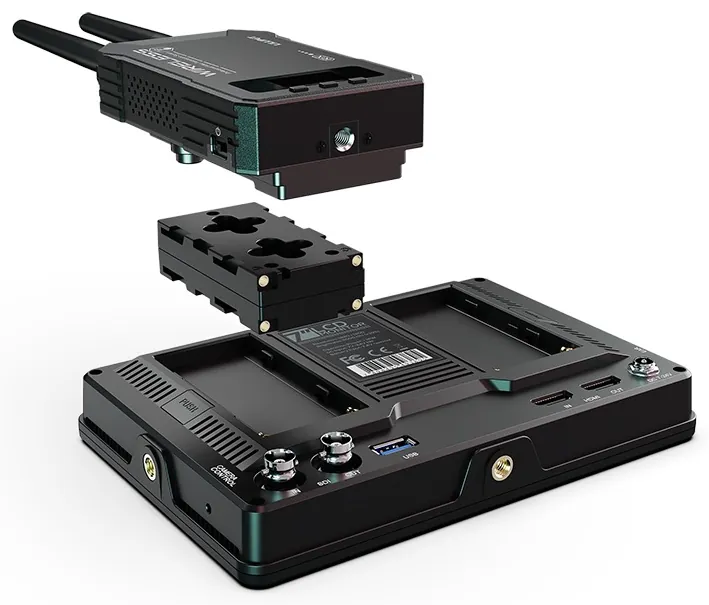

  • Wireless video transmission
  • Carry-on bag

Product Downloads

Similar Products

Compare key technical data across similar products.

Technical Data HT7S A11 A13 HT10S Q7-12G HT5S FS7 A7S FS5 A5
Display
Screen size 7 inch 10.1 inch 13.3 inch 10.1 inch 7 inch 5.5 inch 7 inch 7 inch 5.4 inch 5 inch
Native resolution 1920 x 1200 1920 x 1200 3840 x 2160 1920 x 1200 1920 x 1200 1920 x 1080 1920 x 1200 1920 x 1200 1920 x 1200 1920 x 1080
Aspect ratio 16:10 16:10 16:9 16:10 16:10 16:9 16:10 16:10 16:10 16:9
Brightness 2000 cd/m² 320 cd/m² 400 cd/m² 1500 cd/m² 2000 cd/m² 2000 cd/m² 500 cd/m² 500 cd/m² 600 cd/m² 400 cd/m²
Colour space 100% BT.709 — 100% DCI-P3 125% BT.709 / 92.5% DCI-P3 — 100% BT.709 ITU-R BT.709 ITU-R BT.709 — ITU-R BT.709
Contrast 1200:1 1000:1 100,000:1 1000:1 1200:1 1000:1 1000:1 1000:1 1100:1 1000:1
HDR ST 2084 300/1000/10000 cd/m², HLG — PQ ST 2084 300/1000/10000 cd/m², HLG ST 2084 300/1000/10000 cd/m², HLG ST 2084 300/1000/10000 cd/m², HLG — — ST 2084 300/1000/10000 cd/m², HLG —
LED lifetime — — — 50,000 h — — — — — —
LUT support — — — — 3D-LUT (.cube format) — — — 3D-LUT (.cube format) —
Panel type LCD 8-bit LCD OLED LCD LCD LCD IPS IPS LTPS IPS
Supported log formats — — — — SLog2/SLog3, CLog, NLog, ArriLog, JLog or User — — — SLog2/SLog3, ArriLog, CLog, JLog, VLog, NLog or User —
Touch screen Capacitive touch — — Capacitive touch — Capacitive touch — — — —
Viewing angle 160°/160° (H/V) 175°/175° (H/V) 170°/170° (H/V) 170°/170° (H/V) 170°/170° (H/V) 160°/160° (H/V) 170°/170° (H/V) 170°/170° (H/V) 160°/160° (H/V) 170°/170° (H/V)
Connections
Video inputs 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) 1x 3G-SDI, 1x HDMI 1.4, 1x VGA 1x HDMI 2.0 (4K 60Hz), 3x HDMI 1.4b (4K 30Hz), 1x 3G-SDI, 1x DisplayPort 1.2 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) 2x 12G-SDI, 1x HDMI 2.0 (4K 60Hz), 1x Tally 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) 1x 3G-SDI, 1x HDMI 1.4 1x HDMI 1.4 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) 1x HDMI 1.4
Video outputs 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) 1x 3G-SDI, 1x HDMI 1.4 1x 3G-SDI 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) 2x 12G-SDI, 1x HDMI 2.0 (4K 60Hz) 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) 1x 3G-SDI, 1x HDMI 1.4 1x HDMI 1.4 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) 1x HDMI 1.4
Audio Built-in speaker x 1, 3.5 mm ear jack (2ch 48kHz 24-bit), HDMI 8ch 24-bit 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), Built-in speaker x 1 Built-in speakers x 2, 3.5 mm ear jack (2ch 48kHz 24-bit) Built-in speaker x 1, 3.5 mm ear jack (2ch 48kHz 24-bit), HDMI 8ch 24-bit 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speaker x 1 Built-in speaker x 1, 3.5 mm ear jack (2ch 48kHz 24-bit), HDMI 8ch 24-bit 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), Built-in speaker x 1 HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), Built-in speaker x 1 Built-in speaker x 1, 3.5 mm ear jack x 1 HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), Built-in speaker x 1
Video Standards
3G-SDI 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 — 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 —
DisplayPort — — 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 — — — — — — —
HDMI 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30 — 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30
HDMI 1.4b — — 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 — — — — — — —
HDMI 2.0 — — 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 — — — — — — —
Operational Features
Camera control LANC (Sony S-Lanc compatible) — — LANC (Sony S-Lanc compatible) — LANC (Sony S-Lanc compatible) — — — —
Display modes — — 1P, 2P LR, 2P TB, 2P PIP, 4P — — — — — — —
Function buttons — User-definable (default: F1 Peaking, F2 Level Meter) User-definable (default: Display Mode) — User-definable (default: Peaking) — User-definable (peaking, level meter, centre marker, aspect marker, false colour, exposure, histogram, etc.) User-definable (peaking, level meter, centre marker, aspect marker, false colour, exposure, histogram, etc.) — User-definable (peaking, waveform, histogram, false colour, exposure, centre marker, aspect marker, etc.)
Time code — — — — — — — — LTC, VITC —
Touch gestures Centre swipe: menu; left/right swipe: backlight/volume; two-finger zoom — — Centre swipe: menu; left/right swipe: backlight/volume; two-finger zoom — Centre swipe: menu; left/right swipe: backlight/volume; two-finger zoom — — — —
Power
Compatible batteries Sony NP-F series NP-F Series (Sony F970) — — Sony NP-F (F970) via VESA 75 plate Sony NP-F series Sony NP-F (F970), Canon LP-E6 Sony NP-F (F970), Canon LP-E6 Sony NP-F, Canon LP-E6 Sony NP-F (F970), Canon LP-E6
Current — — — — — — — — 0.75 A (12V) —
Input voltage DC 7 to 24V DC 7 to 24V DC 7 to 24V DC 7 to 24V DC 7 to 24V DC 7 to 24V DC 7 to 24V DC 7 to 24V DC 7 to 24V DC 7 to 24V
Input voltage (battery) — 7.2V nominal — — — — 7.2V nominal 7.2V nominal — 7.2V nominal
Power consumption ≤16 W (15V) ≤13 W ≤20 W (12V) ≤23 W (12V) ≤20 W (12V) ≤14 W (15V) ≤12 W ≤12 W ≤9 W ≤9 W
Mechanical
Dimensions 186 x 128 x 29 mm 252 x 157 x 25 mm 320 x 208 x 26.5 mm 251 x 170 x 26.5 mm 186 x 128 x 32.5 mm 154.8 x 93.8 x 26.5 mm 182 x 124 x 22 mm 182.1 x 124 x 20.5 mm 154.5 x 90 x 20 mm 129.6 x 80.1 x 23.6 mm
Weight 520 g 550 g 1.15 kg 850 g 785 g 310 g 405 g 320 g 295 g 118 g
Mounting
Gimbal bracket — — Included — Included — — — — —
Mini hot shoe — — — — Compatible — — — — —
Shoe mount 1/4 inch thread Included — 1/4 inch thread (x3) — 1/4 inch thread 1/4 inch British Standard Whitworth (BSW) thread 1/4 inch British Standard Whitworth (BSW) thread 1/4 inch British Standard Whitworth (BSW) thread 1/4 inch British Standard Whitworth (BSW) thread
VESA mount — 75 mm holes VESA mount plate bracket included 4x screw mounts VESA 75 mm (battery plate included) — — — — —
Other
Included 0.8 m HDMI A-D cable, LANC cable, Mini shoe mount, USB drive disk 12V DC Adapter, HDMI A/C Cable, VESA F970 Battery plate, Sun shade, Shoe mount, Manual Gimbal bracket, 0.8 m HDMI A-A cable, 12V 3A DC power adapter, Sunshade, VESA mount plate bracket, User manual card 0.8 m HDMI A-D cable, LANC cable, Hot shoe mount, USB drive disk, Sunshade, F970 battery plate 12V 2A DC power adapter, Suitcase, Gimbal bracket, VESA 75 mm F970 battery plate, Tally connector, User manual 0.8 m HDMI A-D cable, LANC cable, Mini shoe mount, USB drive disk 12V DC adapter, Sun shade, HDMI A/C cable, Shoe mount, NP-F series battery plate, User manual Folding sun shade, Silicone rubber case, HDMI A/C cable, Battery plate (F970), Hot shoe mount, User manual 12V 2A DC power adapter, 0.8 m HDMI A-C cable, Battery plate (NP-F / LP-E6), Silicone case, Sunshade, Hot shoe mount, Mini USB to USB-A connector Sun Shade, HDMI A/C Cable, Shoe Mount, User Manual
Optional 12V 2A DC power adapter, Battery plate adapter, Wireless video transmission, Carry-on bag VESA Mount Plate, V-Lock / Anton Bauer Mount, VESA Folding Bracket, Gimbal bracket V-mount or Anton Bauer battery plate Battery plate adapter (with cable), Gimbal bracket, V-Lock battery plate + VESA adapter plate, 12V 3A DC power adapter — 12V 2A DC power adapter VESA mount plate, V-Lock / Anton Bauer battery mount — — —
Environmental
Operating temperature 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C -20°C to 50°C -20°C to 50°C
Storage temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -30°C to 70°C -30°C to 70°C
Scopes
Audio analysis Level meter Level meter — Level meter Level meter Level meter Level meter Level meter Audio vector, Level meter Level meter
Video analysis Waveform (Multi, Y, YCbCr, RGB), Vector, Peaking, False colour, Exposure, Histogram Peaking, False Color, Exposure, Histogram, Center/Aspect/Safety marker, Grid, Scan, Check Field, Zoom, Freeze, Image Flip — Waveform (Multi, Y, YCbCr, RGB), Vector, Peaking, False colour, Exposure, Histogram Waveform, Peaking, False colour, Exposure, Histogram Waveform (Multi, Y, YCbCr, RGB), Vector, Peaking, False colour, Exposure, Histogram Peaking, False colour, Exposure, Histogram Peaking, False colour, Exposure, Histogram Waveform, Vector, Peaking, Histogram, False colour Peaking, False colour, Exposure, Histogram
