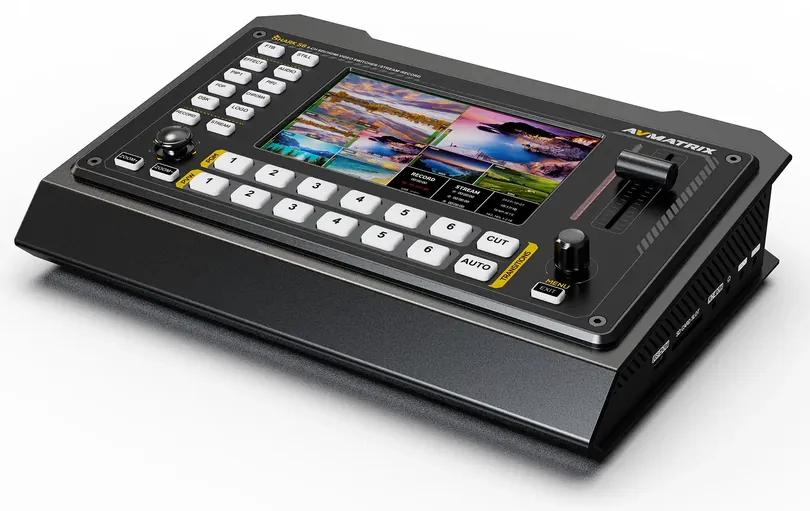

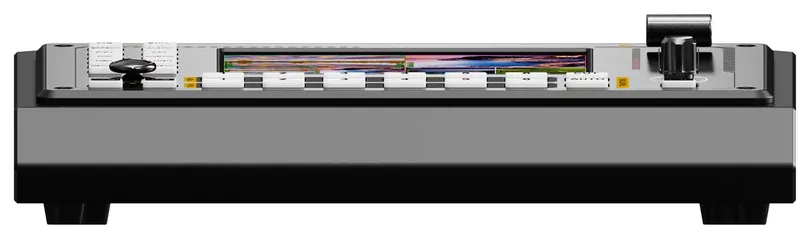

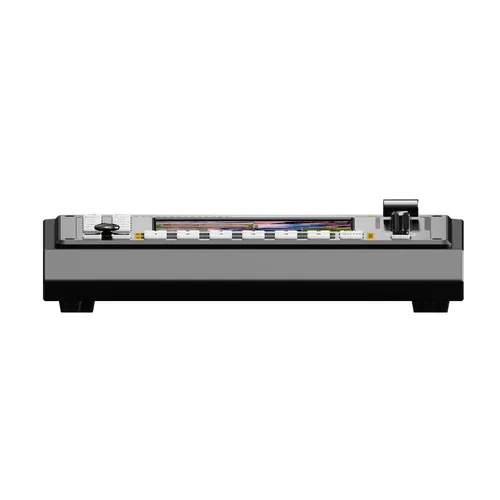

Key Features

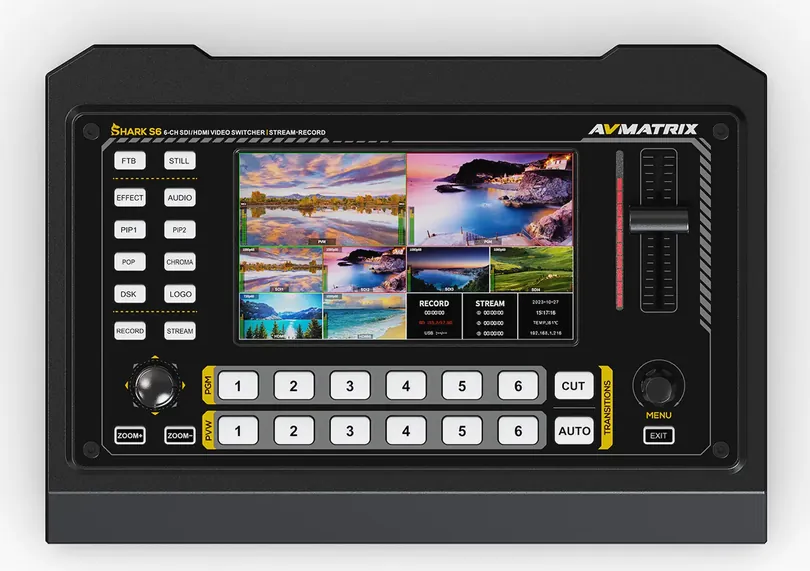

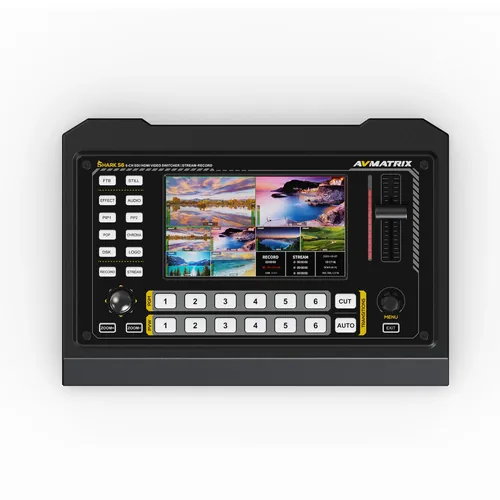

  • Built-in 5 inch LCD display for multiview monitoring
  • 4×3G-SDI and 2×HDMI inputs with multi-format auto signal detection up to 1080p 60
  • T-Bar, AUTO, and CUT transitions with 11×3 WIPE patterns, MIX, DIP, FTB
  • Upstream keying (chroma key, 2×PIP, POP) and downstream keying (DSK, logo)
  • RTMP(S), RTSP, SRT streaming up to 32 Mbps with dual platform support
  • USB and SD card recording in MP4/TS; USB Type-C capture output up to 1080p 60

Product Enquiry

Request a quote or ask a question about the S6. Our UK team will respond promptly.

Technical Data

Display

Screen size5 inch
Panel typeLCD

Connections

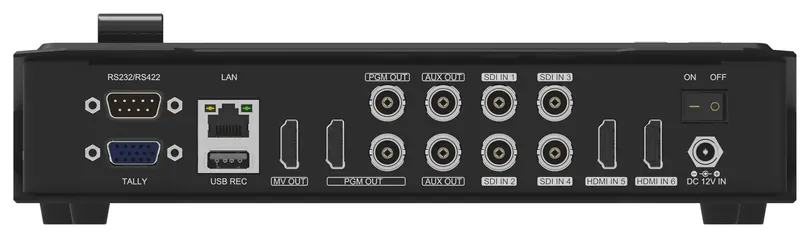

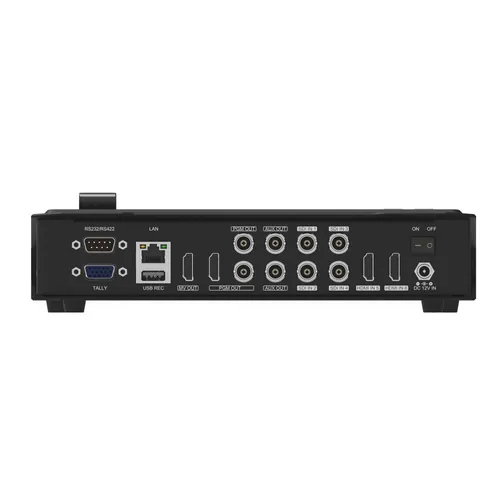

Video inputs4x 3G-SDI (BNC), 2x HDMI Type-A
Video outputs2x 3G-SDI PGM, 1x HDMI PGM, 2x 3G-SDI AUX (IN1 to 6, PVW, PGM, Colour Bar, Multiview), 1x HDMI Multiview, 1x LAN (RJ45 stream), 1x USB Type-C (UVC capture)
Other interfaces1x USB-A + SD card slot (record/storage), 1x Tally (DB-15 GPIO), 1x RS232/RS422/RS485 (DB-9, PTZ control)

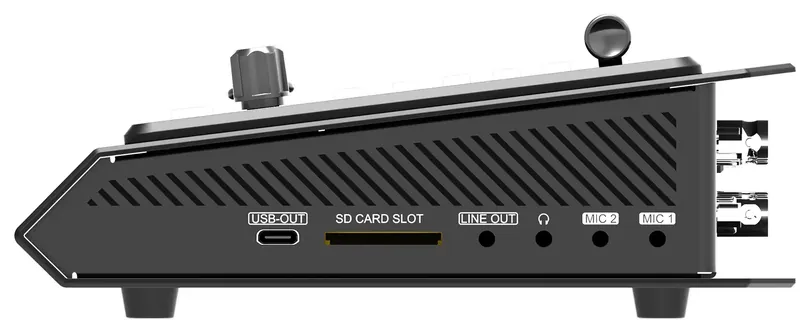

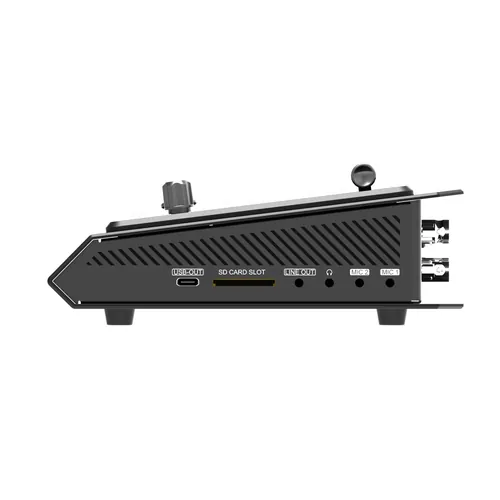

AudioInputs: 2x MIC (3.5 mm); Outputs: 1x line (3.5 mm), 1x earphone (3.5 mm)

Video Standards

Input format supportMulti-format auto signal detection, up to 1080p 60
3G-SDI input1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94
HDMI input1200p 60/50/30, 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 576i 50, 576p 50
3G-SDI output1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 60/59.94/50
HDMI PGM/MV outputPGM: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 60/59.94/50, Multiview: 1080p 60
Colour spaceRGB Full, RGB Limited, YUV
3G-SDI complianceSMPTE 259M, SMPTE 292M, SMPTE 424M
USB capture outputMJPG, up to 1080p 60

Power

Input voltageDC 12V
Power consumption≤20.4 W (12V 1.7A)

Environmental

Operating temperature-20°C to 60°C
Storage temperature-30°C to 70°C

Mechanical

Dimensions238.5 x 168.2 x 47.5 mm
Weight1450 g (net), 2370 g (gross)

Switching

TransitionsT-Bar, AUTO, CUT
EffectsWIPE (11 x 3 patterns), MIX, DIP, STILL (freeze), FTB
Multiview layouts2 styles (landscape and portrait)
KeysUpstream: Chroma Key x 1, PIP x 2, POP; Downstream: DSK x 1, Logo x 1

Media

Logo libraryUp to 8 PNG images (max 512 x 320)

Audio

Audio mixerVideo Input x 6 and MIC x 2
Audio delay0 to 500 ms

Streaming & Recording

Streaming protocolsRTMP(S), RTSP, SRT
Encoding bitrate2 to 32 Mbps, CBR/VBR
Storage formatUSB/SD card, FAT32/exFAT/NTFS
Record file formatMP4, TS
Record file segment1 to 120 mins

PTZ Control

CamerasUp to 6
Control protocolsVISCA, VISCA over IP, ONVIF, PELCO-D/P
ConnectionLAN (RJ45), RS232/RS422/RS485 (DB-9)

Accessories

Included

  • 12V 3A Power Supply
  • USB A-C Cable
  • Tally Connector (DB-15)
  • Carry Case

Product Downloads

Similar Products

Compare key technical data across similar products.

Technical Data S6 S4 Plus S6 Plus
Display
Screen size 5 inch 10.1 inch 17.3 inch
Native resolution — 1920 x 1080 1920 x 1080
Panel type LCD IPS IPS
Connections
Video inputs 4x 3G-SDI (BNC), 2x HDMI Type-A 2x HDMI, 2x 3G-SDI 6x 3G-SDI (BNC), 2x 4K HDMI (multiplexed with 3G-SDI 5/6)
Video outputs 2x 3G-SDI PGM, 1x HDMI PGM, 2x 3G-SDI AUX (IN1 to 6, PVW, PGM, Colour Bar, Multiview), 1x HDMI Multiview, 1x LAN (RJ45 stream), 1x USB Type-C (UVC capture) 2x HDMI PGM, 1x HDMI Multiview, 1x LAN (RJ45 stream), 1x USB Type-C (capture) 4x 3G-SDI PGM (A/B pairs), 2x HDMI PGM (A/B), 1x HDMI Multiview, 1x LAN (RJ45 stream), 1x USB Type-C (UVC capture)
Audio Inputs: 2x MIC (3.5 mm); Outputs: 1x line (3.5 mm), 1x earphone (3.5 mm) Inputs: 2x MIC/Line (3.5 mm stereo); Outputs: 1x earphone (3.5 mm stereo) Inputs: 2x XLR/TRS balanced (+48V phantom), 1x 3.5 mm stereo line; Outputs: 2x XLR balanced, 1x 3.5 mm stereo, 1x 3.5 mm headphone
Other interfaces 1x USB-A + SD card slot (record/storage), 1x Tally (DB-15 GPIO), 1x RS232/RS422/RS485 (DB-9, PTZ control) 1x USB-A + SD card slot (record), 1x USB-A (image import and firmware upgrade), 1x Tally (DB-15 GPIO) 1x USB-A + SD card slot (record/storage), 1x Tally (DB-15 GPIO), 1x RS232/RS485 (PTZ control)
Video Standards
Input format support Multi-format auto signal detection, up to 1080p 60 Multi-format auto signal detection, up to 1080p 60 3G-SDI: up to 1080p 60; HDMI: up to 4K 60
HDMI PGM/MV output PGM: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 60/59.94/50, Multiview: 1080p 60 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50
USB capture output MJPG, up to 1080p 60 Up to 1080p 60 Up to 1080p 60 (YUY2, NV12, RGB32, 200 Mbps)
3G-SDI compliance SMPTE 259M, SMPTE 292M, SMPTE 424M — —
3G-SDI input 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94 — 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94
3G-SDI output 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 60/59.94/50 — 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50
Colour space RGB Full, RGB Limited, YUV HDMI: RGB/YUV; 3G-SDI: YUV 3G-SDI: YUV 4:2:2 10-bit; HDMI: YUV, RGB Full, RGB Limit
HDMI input 1200p 60/50/30, 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 576i 50, 576p 50 — 4K 60/50/30, 2K 60/50/30, 1080p 60/59.94/50/30/29.97/25/24/23.98, 720p 60/59.94/50/30/29.97/25/24/23.98, 576p 50, 480p 60/59.94
Switching
Transitions T-Bar, AUTO, CUT T-Bar, AUTO, CUT T-Bar, AUTO, CUT
Effects WIPE (11 x 3 patterns), MIX, DIP, STILL (freeze), FTB WIPE (11 x 3 patterns), MIX, DIP, STILL (freeze), PATTERN, MUTE, FTB WIPE (11 x 4 patterns), MIX, DIP, STILL (freeze), PATTERN, MUTE, FTB
Keys Upstream: Chroma Key x 1, PIP x 2, POP; Downstream: DSK x 1, Logo x 1 Upstream: Luma Key x 1, Chroma Key x 1, PIP x 2, POP; Downstream: DSK x 1, Logo x 1 Upstream: Luma Key x 1, Chroma Key x 1, PIP x 3; Downstream: DSK x 1, Logo x 1
Macros — — 20 macros, recording and playback
Multiview layouts 2 styles (landscape and portrait) 2 styles (landscape and portrait) 2 styles (landscape and portrait)
Streaming & Recording
Streaming protocols RTMP(S), RTSP, SRT RTMP, RTMPS, SRT RTMP
Encoding bitrate 2 to 32 Mbps, CBR/VBR 2/4/8/12/16/24/32 Mbps, CBR/VBR Up to 32 Mbps, CBR/VBR
Record file format MP4, TS MP4, TS MP4, TS
Record file segment 1 to 120 mins 1/5/10/20/30/60/90/120 mins —
Storage format USB/SD card, FAT32/exFAT/NTFS USB/SD card, FAT32/exFAT/NTFS USB/SD card
Media
Generators — Pattern Generator x 1, Colour Generators x 2 Pattern Generator x 1, Colour Generators x 2
Logo library Up to 8 PNG images (max 512 x 320) — —
Media format — Default: 39 preset patterns; Local: up to 16 imported images; Capture: up to 16 captured images Video: MP4, TS; Audio: MP3, AAC; Image: PNG (max 1920 x 1080); Logo: PNG (max 450 x 50)
Power
Input voltage DC 12V DC 7 to 24V DC 9 to 24V
Power consumption ≤20.4 W (12V 1.7A) ≤24 W (12V 2A) ≤50 W (15V)
Mechanical
Dimensions 238.5 x 168.2 x 47.5 mm 261.4 x 193.9 x 58 mm 433 x 307 x 75.5 mm
Weight 1450 g (net), 2370 g (gross) 1734.5 g (net), 2240 g (gross) 5240 g (net)
Other
Included 12V 3A Power Supply, USB A-C Cable, Tally Connector (DB-15), Carry Case 12V 2A Power Adapter, USB A-C Cable, Tally Connector 15V 4A Power Adapter, USB 3.0 Type-C Cable, Tally Connector (DB-15)
Optional — Carry Case —
Environmental
Operating temperature -20°C to 60°C -20°C to 50°C 0°C to 60°C
Storage temperature -30°C to 70°C — -30°C to 70°C
Audio
Audio delay 0 to 500 ms 0 to 500 ms 0 to 500 ms
Audio mixer Video Input x 6 and MIC x 2 Video Input x 4 and MIC/Line x 2 Video Input x 6 and XLR/TRS x 2
PTZ Control
Cameras Up to 6 — Up to 6
Connection LAN (RJ45), RS232/RS422/RS485 (DB-9) — LAN (RJ45), RS232/RS485 (DB-9)
Control protocols VISCA, VISCA over IP, ONVIF, PELCO-D/P — VISCA, ONVIF, PELCO-D/P
