SE1217 SE1217 SE1217 SE1217

Key Features

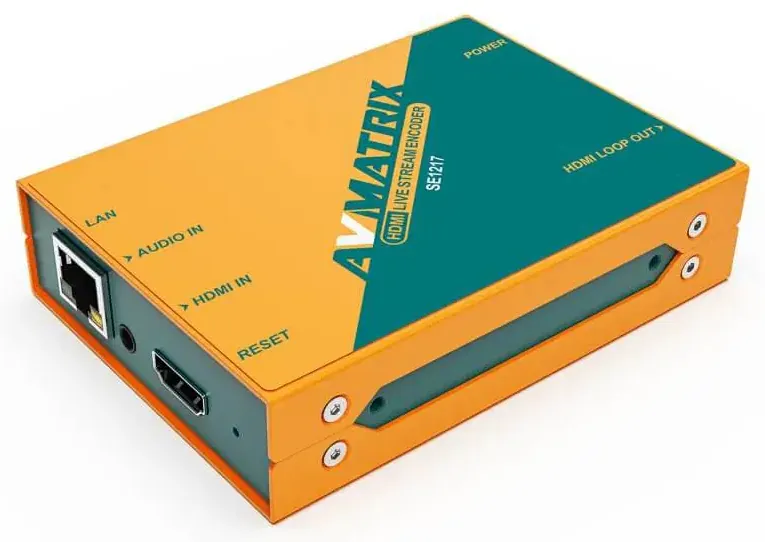

  • HDMI streaming encoder — 1x HDMI in, 1x HDMI loop out, 3.5 mm line in, RJ-45 100/1000 Mbps
  • HDMI input: 1080p 24 to 60, 1080i 50/60, 720p 24 to 60, 576i/p 50, 480i/p 60
  • Video bitrate 16 Kbps to 12 Mbps; audio AAC/MP3/MP2/G711, 24 to 320 Kbps
  • Encoding: 1920x1080 down to 640x360. Frame rate 5 to 60 fps
  • Protocols: HTTP, RTSP, RTMPS, RTMP, RTP, UDP, Multicast, Unicast, SRT
  • Web configuration, remote upgrade. DC 12V 2A, 5 W. 104 x 75.5 x 24.5 mm, 310 g

Product Enquiry

Request a quote or ask a question about the SE1217. Our UK team will respond promptly.

Technical Data

Connections

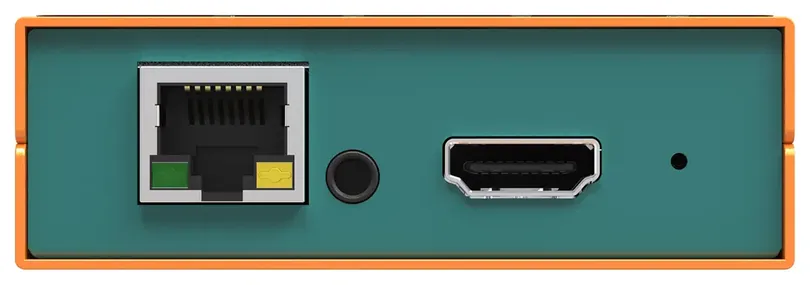

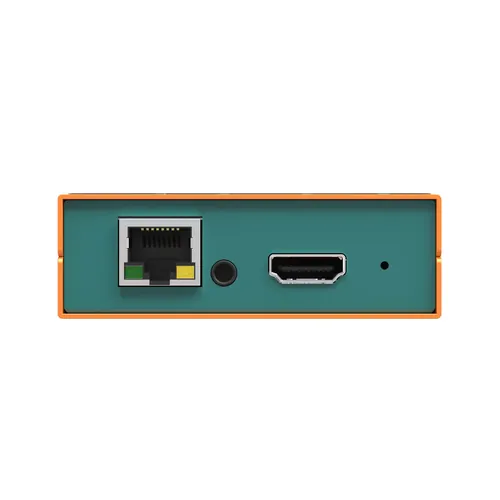

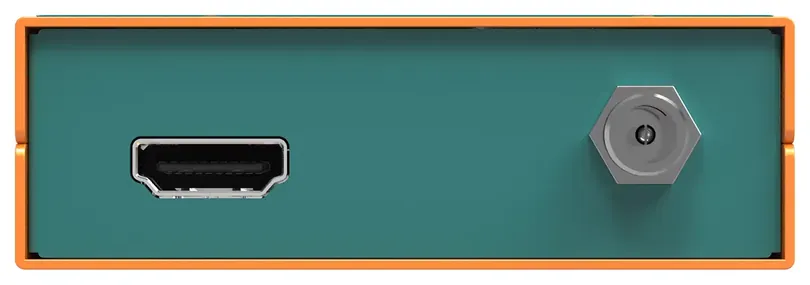

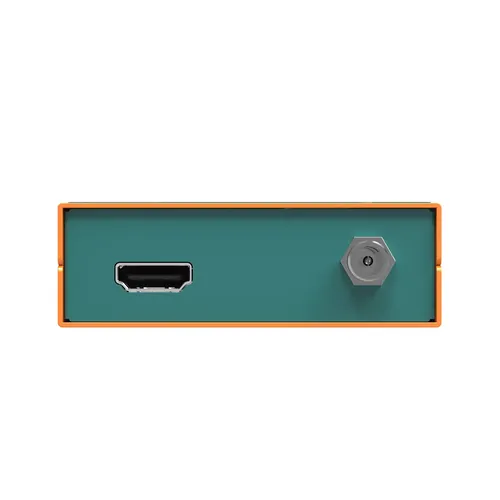

Video interfaces1x HDMI input, 1x HDMI loop out
Audio1x 3.5 mm line in
Network1x RJ-45 100/1000 Mbps
Power input1x DC 12V 2A

Video Standards

HDMI1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60, 576p 50, 576i 50, 480p 60, 480i 60
Video encodingBitrate 16 Kbps to 12 Mbps, Resolutions 1920x1080 down to 640x360, Frame rate 5 to 60 fps
Audio encodingAAC/MP3/MP2/G711, 24 to 320 Kbps
Streaming protocolsHTTP, RTSP, RTMPS, RTMP, RTP, UDP, Multicast, Unicast, SRT

Power

Input voltageDC 12V
Power consumption5 W

Environmental

Operating temperature0°C to 40°C
Storage temperature-20°C to 70°C

Mechanical

Dimensions104 x 75.5 x 24.5 mm
Weight310 g (net) / 690 g (gross)

Other

ConfigurationWeb configuration, remote upgrade

Product Downloads

Similar Products

Compare key technical data across similar products.

Technical Data SE1217 DE21-4K PRO SE1117 SE2017
Connections
Audio 1x 3.5 mm line in 1x 3.5 mm line in and out 1x 3.5 mm line in 1x 3.5 mm line in
Network 1x RJ-45 100/1000 Mbps 1x NDI/PoE RJ45 1x RJ-45 100/1000 Mbps 1x RJ-45 100/1000 Mbps
Power input 1x DC 12V 2A 1x DC 5 to 18V USB-C 1x DC 12V 2A 1x DC 12V 2A
Recording — — — SD card slot, USB disk
Video interfaces 1x HDMI input, 1x HDMI loop out 1x HDMI input, 1x HDMI output 1x 3G-SDI input, 1x 3G-SDI loop out 1x HDMI input, 1x HDMI loop out, 1x 3G-SDI input, 1x 3G-SDI loop out
Video Standards
3G-SDI — — 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60, 576p 50, 576i 50, 480p 60, 480i 60 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60, 576p 50, 576i 50, 480p 60, 480i 60
Audio encoding AAC/MP3/MP2/G711, 24 to 320 Kbps — AAC/MP3/MP2/G711, 24 to 320 Kbps AAC, 64 to 320 Kbps
HDMI 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60, 576p 50, 576i 50, 480p 60, 480i 60 2160p 24/25/30/50/60, 2560x1080 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 — 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60, 576p 50, 576i 50, 480p 60, 480i 60
NDI — 1x NDI encoding or 1x NDI decoding, YCbCr 4:2:2 8bit NDI High Bandwidth HD, 250 Mbps @ 4K60, 125 Mbps @ 1080p60 — —
NDI codec — 1x NDI encoding or decoding; YCbCr 4:2:2 8bit; 250 Mbps @ 4K60, 125 Mbps @ 1080p60 — —
Streaming protocols HTTP, RTSP, RTMPS, RTMP, RTP, UDP, Multicast, Unicast, SRT — HTTP, RTSP, RTMPS, RTMP, RTP, UDP, Multicast, Unicast, SRT RTSP, RTMP, SRT
Video encoding Bitrate 16 Kbps to 12 Mbps, Resolutions 1920x1080 down to 640x360, Frame rate 5 to 60 fps NDI High Bandwidth HD, YCbCr 4:2:2 8bit, 250 Mbps @ 4K60, 125 Mbps @ 1080p60, Up to 2160p 24/25/30/50/60 Bitrate 16 Kbps to 12 Mbps, Resolutions 1920x1080 down to 640x360, Frame rate 5 to 60 fps Bitrate 2 to 32 Mbps, Resolutions 1920x1080, 1280x720, 720x480, Frame rate 24/25/30/50/60 fps
Other
Configuration Web configuration, remote upgrade — Web configuration, remote upgrade Web configuration, remote upgrade
Optional — Mounting Brackets — —
Warranty — 3 years — —
Power
Input voltage DC 12V DC 5 to 18V (USB-C) DC 12V DC 12V
Power consumption 5 W 5 W ±10% 5 W 4.5 W
Mechanical
Dimensions 104 x 75.5 x 24.5 mm 104 x 125.5 x 24.5 mm 104 x 75.5 x 24.5 mm 104 x 125.5 x 24.5 mm
Weight 310 g (net) / 690 g (gross) 501 g (net) / 750 g (gross) 340 g (net) / 730 g (gross) 550 g (net) / 905 g (gross)
Record
File segment — — — 1/5/10/20/30/60/90/120 mins
SD card format — — — FAT32, exFAT, NTFS
Storage — — — SD card, USB disk
USB disk format — — — FAT32, exFAT, NTFS
Environmental
Operating temperature 0°C to 40°C -20°C to 60°C 0°C to 40°C -20°C to 60°C
Storage temperature -20°C to 70°C -30°C to 70°C -20°C to 70°C -30°C to 70°C
