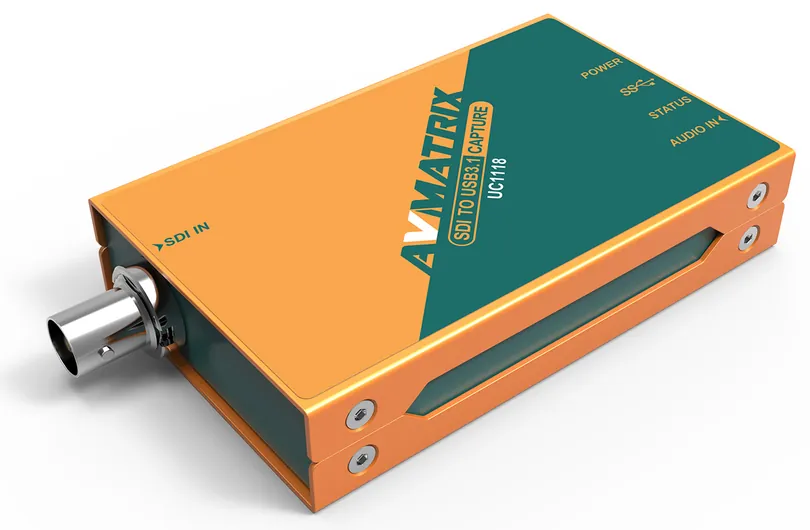

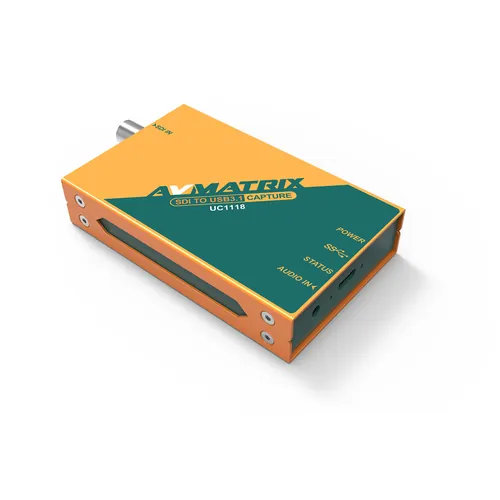

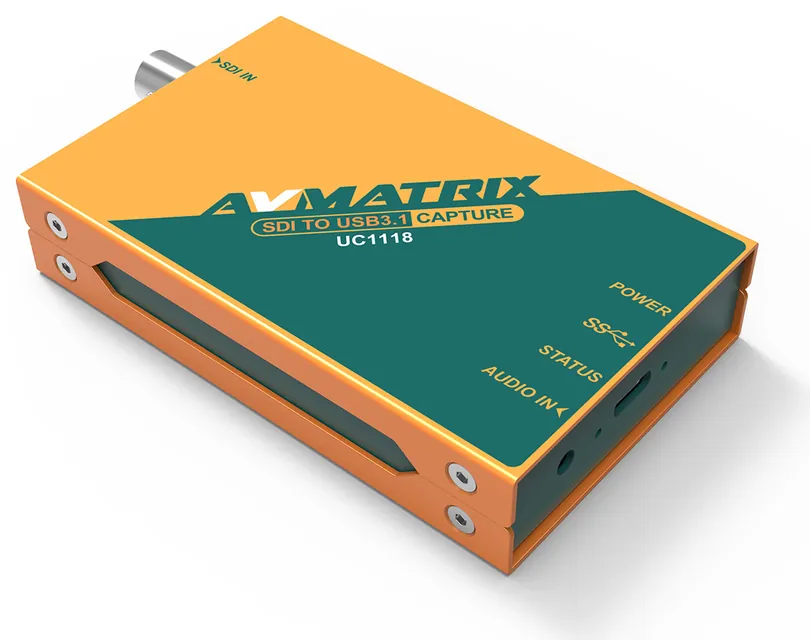

UC1118 UC1118

Key Features

  • 3G-SDI to USB 3.0 capture — 1x SD/HD/3G-SDI input only
  • USB 3.0 Type C output (USB 3.1 Gen1, up to 200 MB/s)
  • 3G-SDI: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 24/25/30/50/60, 625i 50, 525i 59.94
  • USB output up to 1920 x 1200. YUY2. UVC/UAC
  • 2ch 16 bit PCM 48 kHz. 1x 3.5 mm stereo (line in)
  • USB bus-powered, 3.5 W max. Windows 7/8/10, Linux, macOS 10.8+

Product Enquiry

Request a quote or ask a question about the UC1118. Our UK team will respond promptly.

Technical Data

Connections

Host interfaceUSB 3.0 Type C (USB 3.1 Gen1, up to 200 MB/s)
Video interfaces1x SD/HD/3G-SDI input
Audio input1x 3.5 mm stereo (line in)

Video Standards

3G-SDI1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 24/25/30/50/60, 625i 50, 525i 59.94
USB output resolution1920 x 1200 down to 640 x 360 (1920 x 1080, 1680 x 1050, 1600 x 1200, 1440 x 900, 1368 x 768, 1280 x 1024/960/800/720, 1024 x 768/576, 960 x 540, 856 x 480, 800 x 600, 768 x 576, 720 x 576/480, 640 x 480/360)
Video color spaceYUY2
Capture standardUVC (USB Video Class), UAC (USB Audio Class)
Audio sampling48 kHz 16 bit

Power

Power consumption3.5 W max (USB bus-powered)

Environmental

Operating temperature-20°C to 60°C
Storage temperature-30°C to 70°C
Relative humidity20 to 90% non-condensing

Mechanical

Dimensions92 x 58 x 19 mm
Weight205 g

Support

SystemWindows 7/8/10, Linux (kernel 2.6.38+), macOS 10.8+
SoftwareOBS Studio, Skype, Zoom, Teams, Google Meet, YouTube Live, QuickTime Player, FaceTime, Wirecast, Camtasia, Ecamm.live, Twitch
APIsWindows: DirectShow, DirectSound

Accessories

Included

  • USB 3.0 A to C cable

Product Downloads

Similar Products

Compare key technical data across similar products.

Technical Data UC1118 UC2018 UC7018 VC42 VC41 VC12-4K
Connections
Audio input 1x 3.5 mm stereo (line in) 1x 3.5 mm stereo (line in) 1x 3.5 mm analog — — —
Host interface USB 3.0 Type C (USB 3.1 Gen1, up to 200 MB/s) USB 3.0 Type C (USB 3.1 Gen1, up to 200 MB/s) USB 3.0 Type C (USB 3.1 Gen1, up to 200 MB/s) PCIe x4 Gen2 (2.5 GB/s) PCIe x4 Gen2 (2.5 GB/s) PCIe x4 Gen2 (2.5 GB/s)
Video interfaces 1x SD/HD/3G-SDI input 1x SD/HD/3G-SDI input, 1x HDMI 1.4a input 1x 3G-SDI input, 1x HDMI input, 1x DVI-I/VGA input, 1x S-Video/CVBS/YPbPr input 4x HDMI 1.4 input 4x SD/HD/3G-SDI input 1x HDMI 2.0 input, 1x HDMI 2.0 loop-out
Video Standards
3G-SDI 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 24/25/30/50/60, 625i 50, 525i 59.94 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 24/25/30/50/60, 625i 50, 525i 59.94 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 24/25/30/50/60 — 1080p 25/30/50/60, 1080i 50/60, 720p 25/30/50/60, 720x576 25/30/60, 720x480 30/60 —
3G-SDI standard — — — — HD, 3G, 3Gb, 3Gb-DL, 3Gb-DS (3Gb-DS captures first stream only) —
Audio capture — — — 4x HDMI embedded audio 4x 3G-SDI embedded audio 1x HDMI embedded audio
Audio sampling 48 kHz 16 bit 48 kHz 16 bit 48 kHz 16 bit 48 kHz 16 bit 48 kHz 16 bit 48 kHz 16 bit
Capture format — — — YUY2, uncompressed YUY2, uncompressed YUY2, uncompressed
Capture standard UVC (USB Video Class), UAC (USB Audio Class) UVC (USB Video Class), UAC (USB Audio Class) UVC (USB Video Class), UAC (USB Audio Class) — — —
Color precision — — — YUY2 4:2:2 8bit YUY2 4:2:2 8bit YUY2 4:2:2 8bit
Color sampling — — — — YCbCr 4:4:4, YCbCr 4:2:2 —
DVI/VGA — — 1920 x 1080 down to 640 x 400 — — —
HDMI — 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60, 576p 50, 576i 50, 480i 59.94/60, 480p 59.94/60 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60 1080p 25/30/50/60, 1080i 50/60, 720p 25/30/50/60, 720x576 25/30/60, 720x480 30/60 — 4K 25/30/50/60, 1440p 60/120/144, 1080p 25/30/50/60/120/240, 1080i 50/60, 720p 50/60, 720x576 25/30/60, 720x480 30/60
S-Video/CVBS — — 710 x 484i, 702 x 576i — — —
USB output resolution 1920 x 1200 down to 640 x 360 (1920 x 1080, 1680 x 1050, 1600 x 1200, 1440 x 900, 1368 x 768, 1280 x 1024/960/800/720, 1024 x 768/576, 960 x 540, 856 x 480, 800 x 600, 768 x 576, 720 x 576/480, 640 x 480/360) 1920 x 1200 down to 640 x 360 (1920 x 1080, 1680 x 1050, 1600 x 1200, 1440 x 900, 1368 x 768, 1280 x 1024/960/800/720, 1024 x 768/576, 960 x 540, 856 x 480, 800 x 600, 768 x 576, 720 x 576/480, 640 x 480/360) — — — —
Video color space YUY2 YUY2 RGB, YUY2, NV12 — — —
YPbPr — — 1920 x 1080p, 1280 x 720p, 720 x 576p, 720 x 483p, 710 x 484i, 702 x 576i — — —
Support
APIs Windows: DirectShow, DirectSound Windows: DirectShow, DirectSound Windows: DirectShow, DirectSound Windows: DirectShow, DirectSound/WASAPI; Linux: V4L2, ALSA Windows: DirectShow, DirectSound/WASAPI; Linux: V4L2, ALSA Windows: DirectShow, DirectSound/WASAPI; Linux: V4L2, ALSA
Devices — — — — — XBOX, PS4, SWITCH, video player, TV box, media box
Software OBS Studio, Skype, Zoom, Teams, Google Meet, YouTube Live, QuickTime Player, FaceTime, Wirecast, Camtasia, Ecamm.live, Twitch OBS Studio, Skype, Zoom, Teams, Google Meet, YouTube Live, QuickTime Player, FaceTime, Wirecast, Camtasia, Ecamm.live, Twitch OBS Studio, Skype, Zoom, Teams, Google Meet, YouTube Live, QuickTime Player, FaceTime OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2/AVCaptureSession OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2/AVCaptureSession OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2/AVCaptureSession
System Windows 7/8/10, Linux (kernel 2.6.38+), macOS 10.8+ Windows 7/8/10, Linux (kernel 2.6.38+), macOS 10.8+ Windows 7/8/10/11, Linux (kernel 2.6.38+), macOS 10.8+ Windows 7 and above, Linux 18.04 and above Windows 7 and above, Linux 18.04 and above Windows 7 and above, Linux 18.04 and above
Mechanical
Dimensions 92 x 58 x 19 mm 92 x 58 x 19 mm 104 x 125.5 x 24.5 mm 120.1 x 88.4 x 21.6 mm 120.1 x 88.4 x 21.6 mm 120.1 x 95.7 x 21.6 mm
Weight 205 g 205 g 473 g 150 g 150 g 100 g
Environmental
Operating temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C 0°C to 60°C 0°C to 60°C 0°C to 60°C
Relative humidity 20 to 90% non-condensing 20 to 90% non-condensing 20 to 90% non-condensing 5 to 90% non-condensing 5 to 90% non-condensing 5 to 90% non-condensing
Storage temperature -30°C to 70°C -30°C to 70°C -30°C to 70°C -20°C to 70°C -20°C to 70°C -20°C to 70°C
Other
Features — — — 1080i hardware de-interlacing, 3D noise reduction 1080i hardware de-interlacing, 3D noise reduction 1080i hardware de-interlacing, 3D noise reduction
Included USB 3.0 A to C cable USB 3.0 A to C cable — — — —
Power
Power consumption 3.5 W max (USB bus-powered) 3.5 W max (USB bus-powered) ≤5 W (5V, 1A via USB Type-C) ≤2 W (from PCIe slot) ≤2 W (from PCIe slot) ≤2 W (from PCIe slot)
