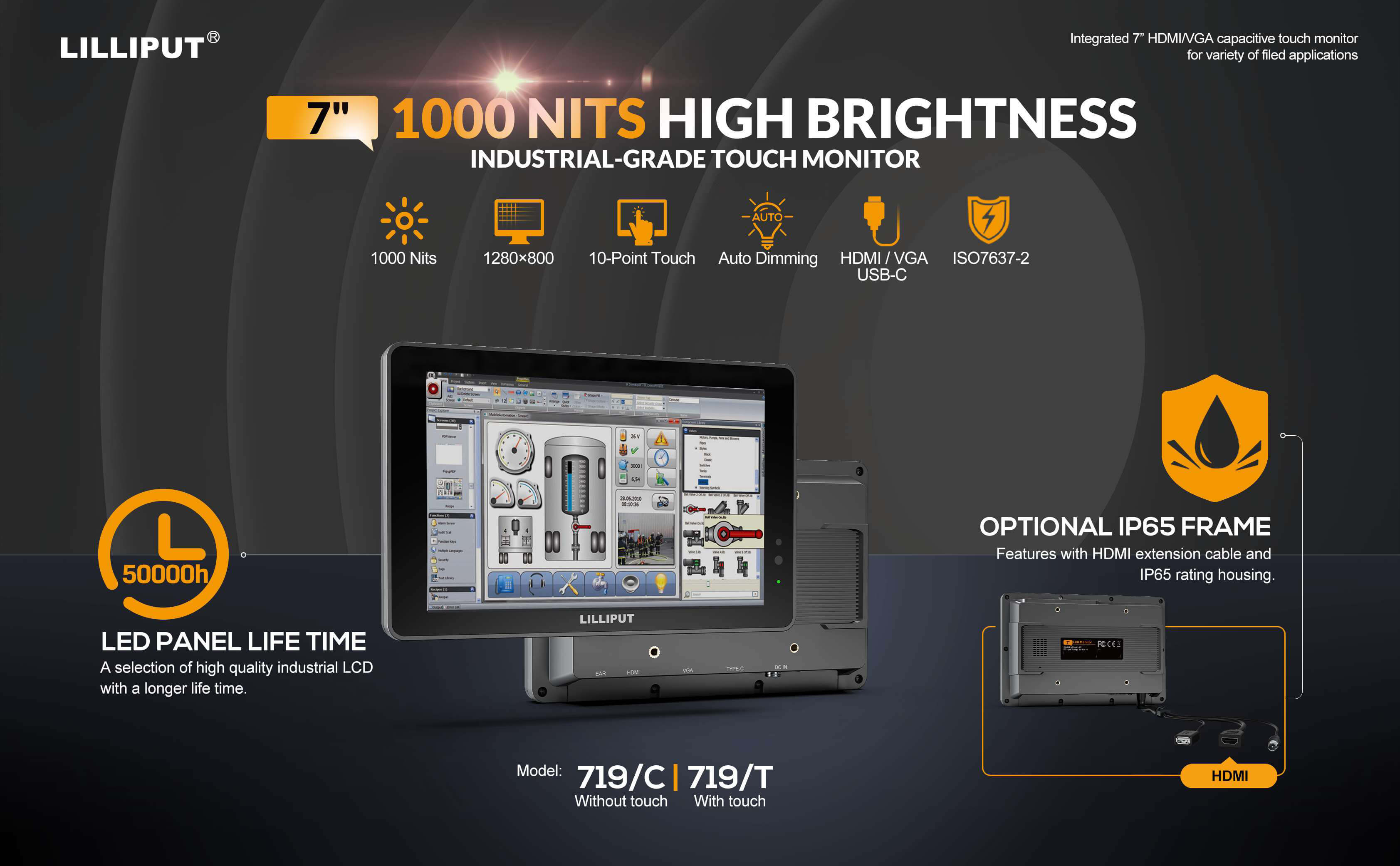

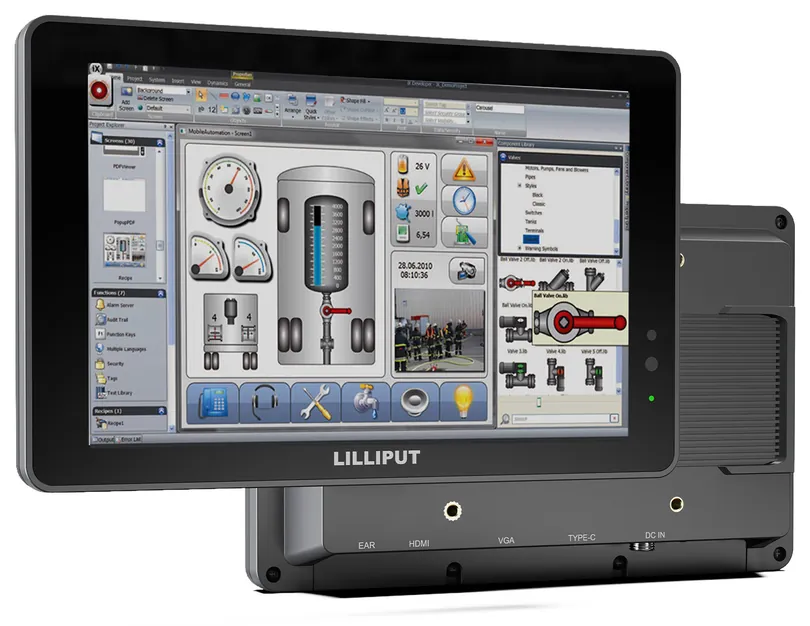

Key Features

  • 7 inch 1280 x 800 LCD, 1000 cd/m², 800:1 contrast, 16:10
  • 1x HDMI, 1x VGA — versatile inputs
  • 3.5 mm ear jack (2ch 48kHz 24-bit); built-in speaker
  • DC 9 to 36V, ≤8.5 W; -20°C to 60°C operating
  • 184.5 x 118.8 x 32 mm; 410 g; VESA 75 mm mount

Product Enquiry

Request a quote or ask a question about the 719. Our UK team will respond promptly.

Technical Data

Display

Screen size7 inch
Aspect ratio16:10
Native resolution1280 x 800
Panel typeLCD

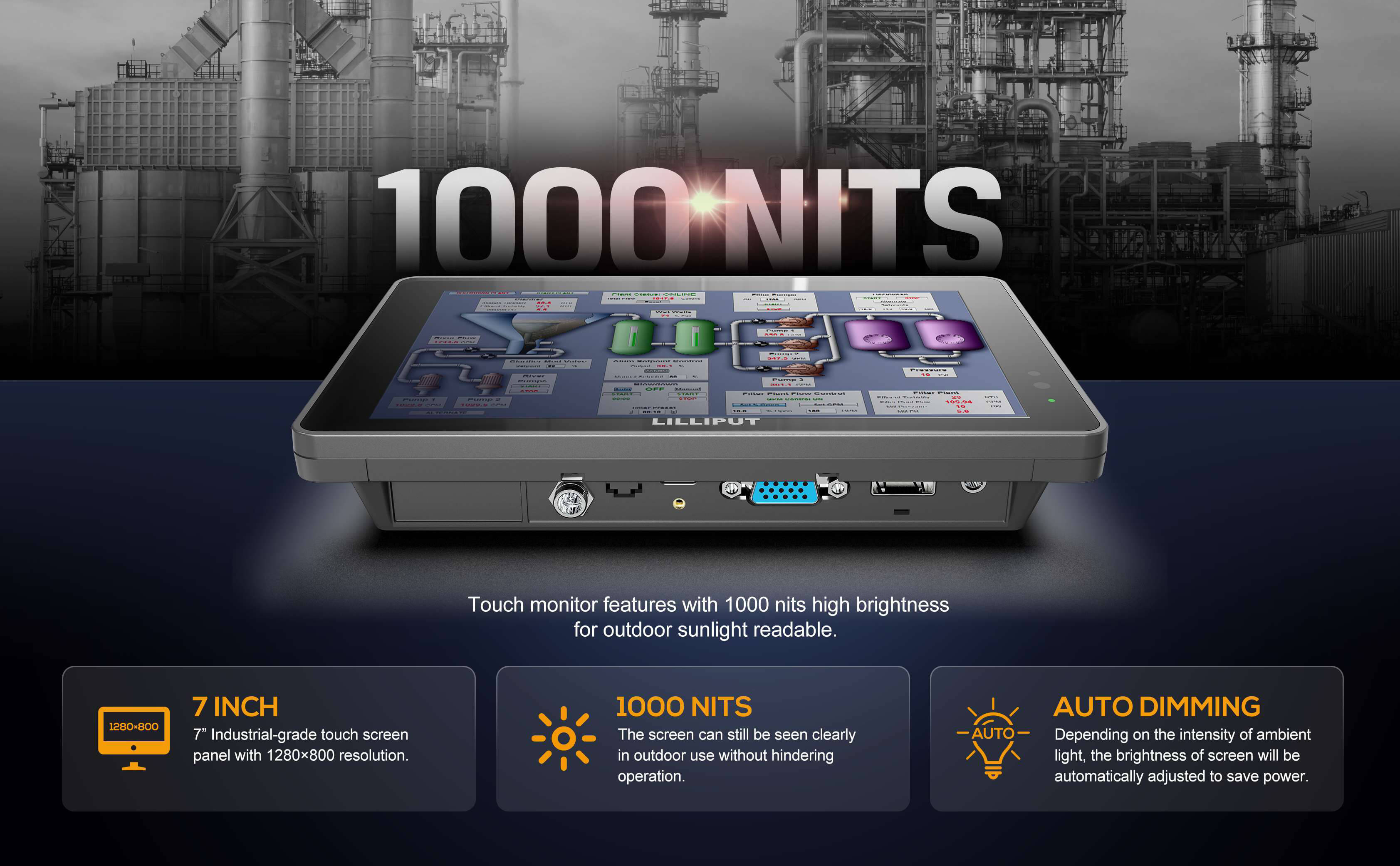

Brightness1000 cd/m²
Contrast800:1
Viewing angle170°/170° (H/V)

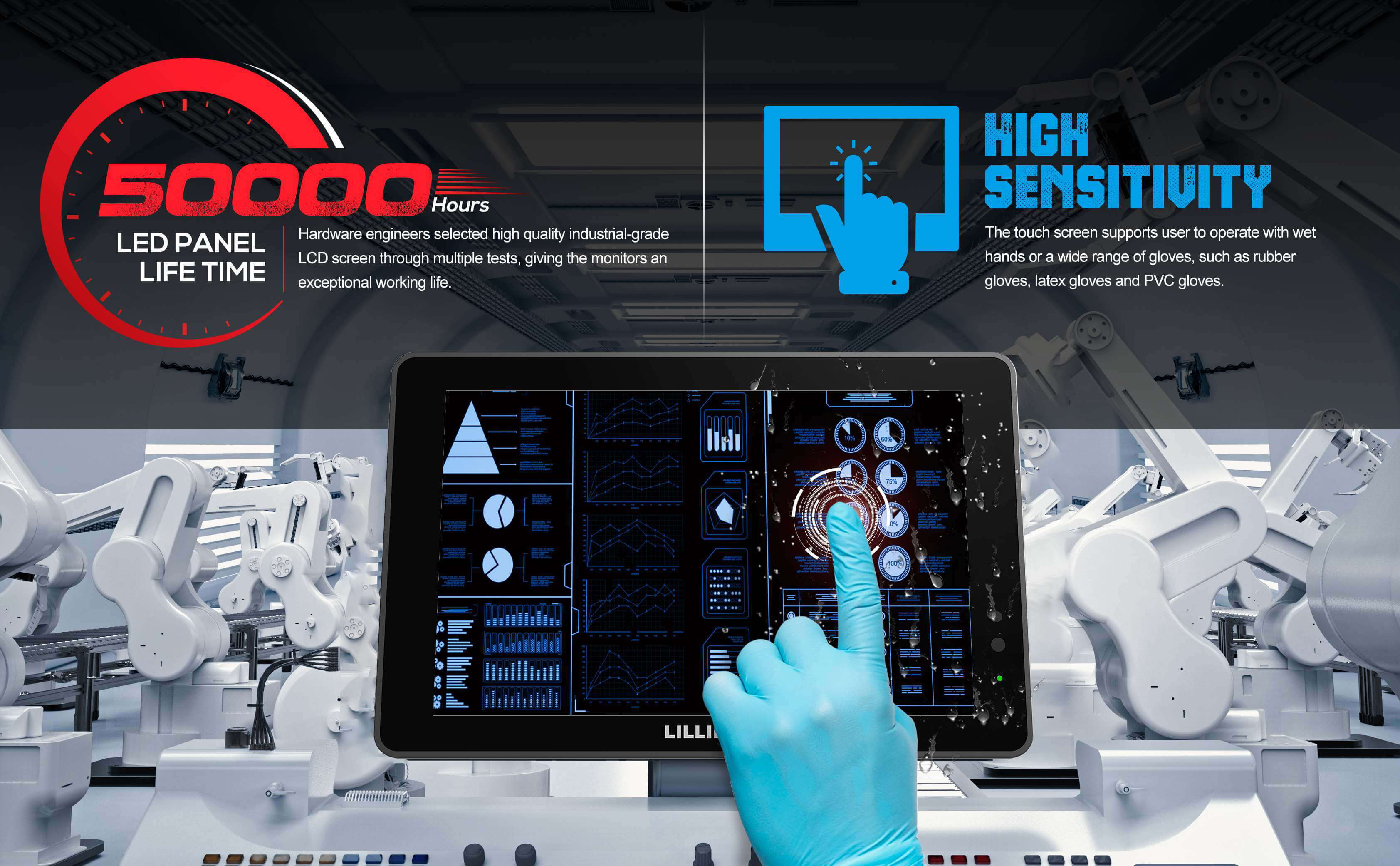

LED lifetime50,000 h
Touch screen (Optional)10-point PCAP

Connections

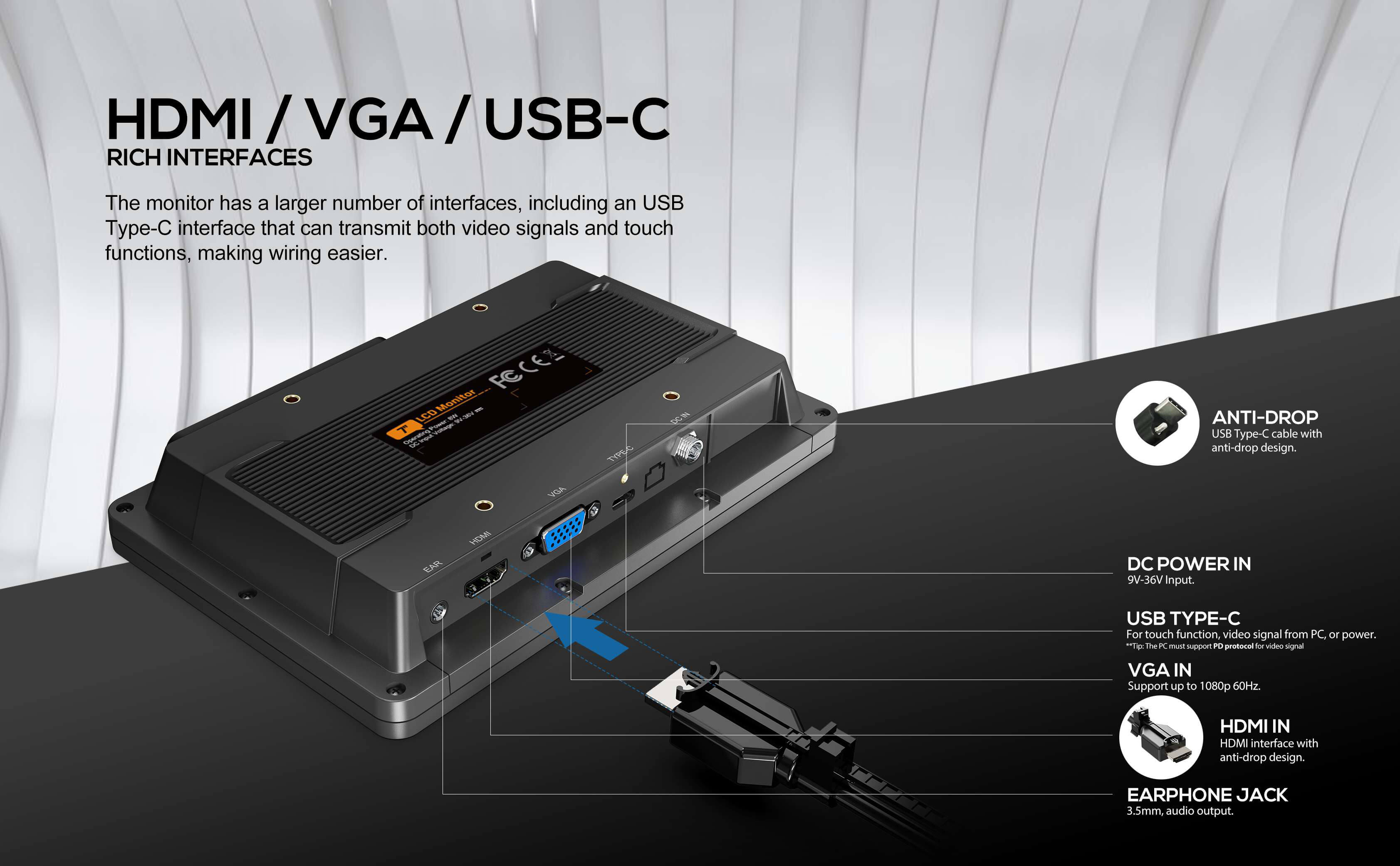

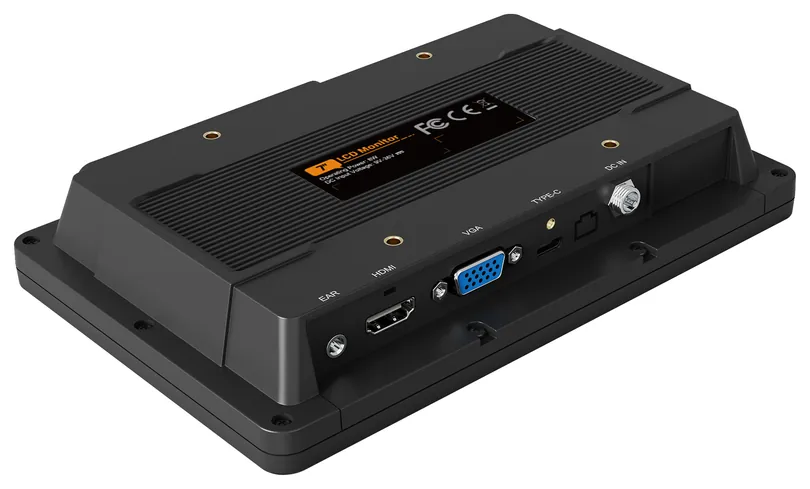

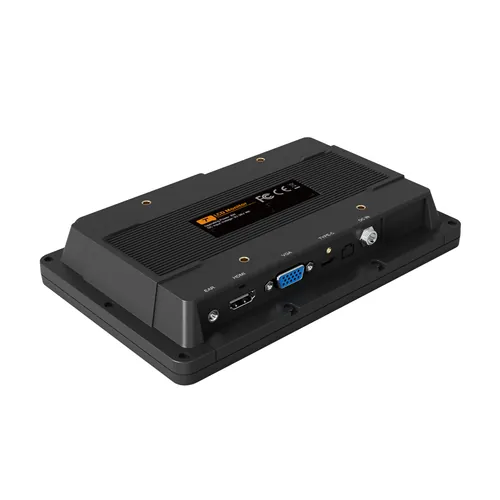

Video inputs1x HDMI, 1x VGA
AudioBuilt-in speaker x 1, HDMI audio, 3.5 mm ear jack (2ch 48kHz 24-bit)
Additional connections (Optional)1x USB-C (touch, video, power)

Video Standards

HDMI2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
VGA1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60

Power

Input voltageDC 9 to 36V
Power consumption≤8.5 W (12V)

Environmental

Operating temperature-20°C to 60°C
Storage temperature-30°C to 80°C

Mechanical

Dimensions184.5 x 118.8 x 32 mm
Weight410 g

Mounting

VESA mount75 mm

Accessories

Included

  • 12V 2A Power Adapter
  • HDMI A-A Cable

Optional

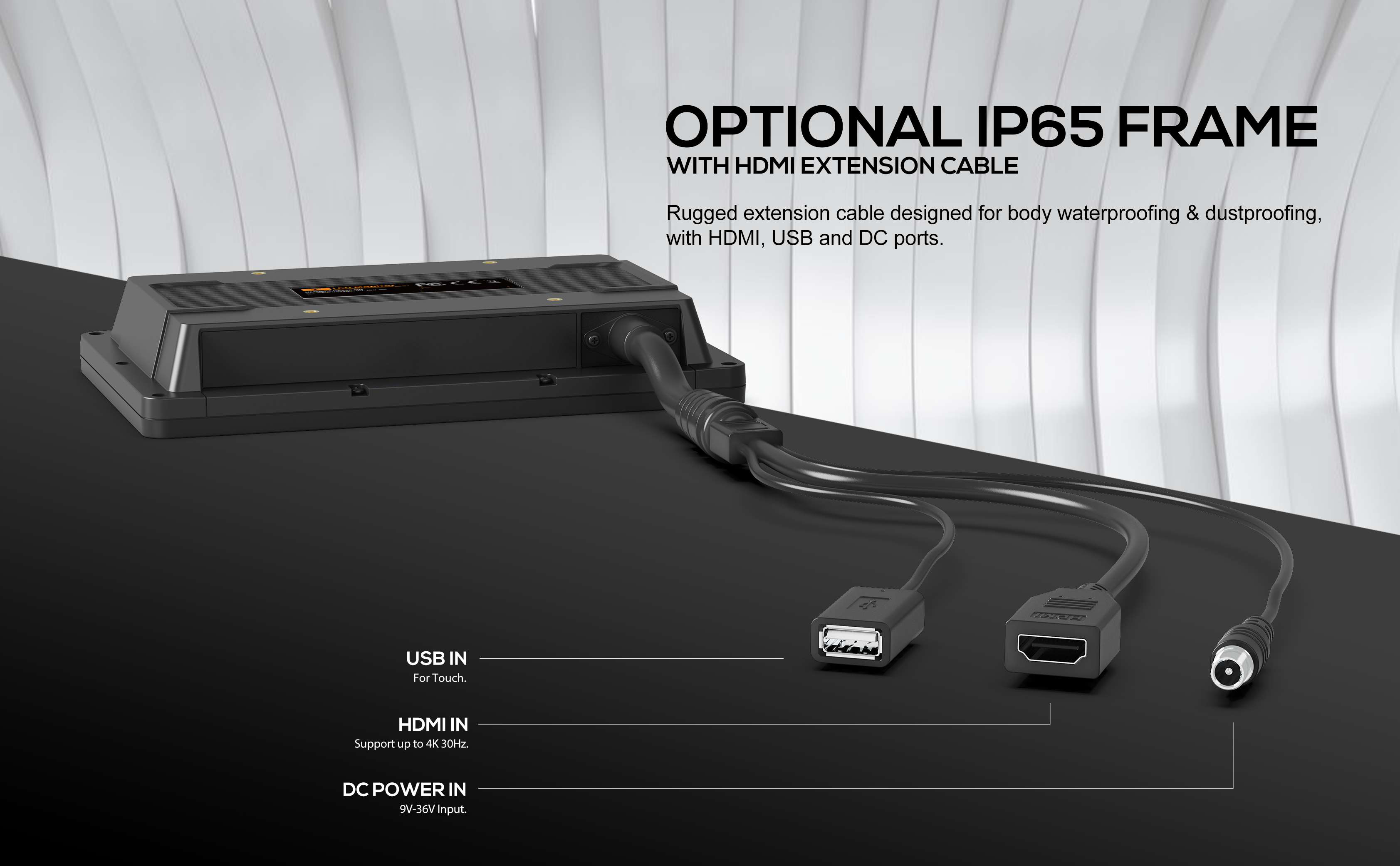

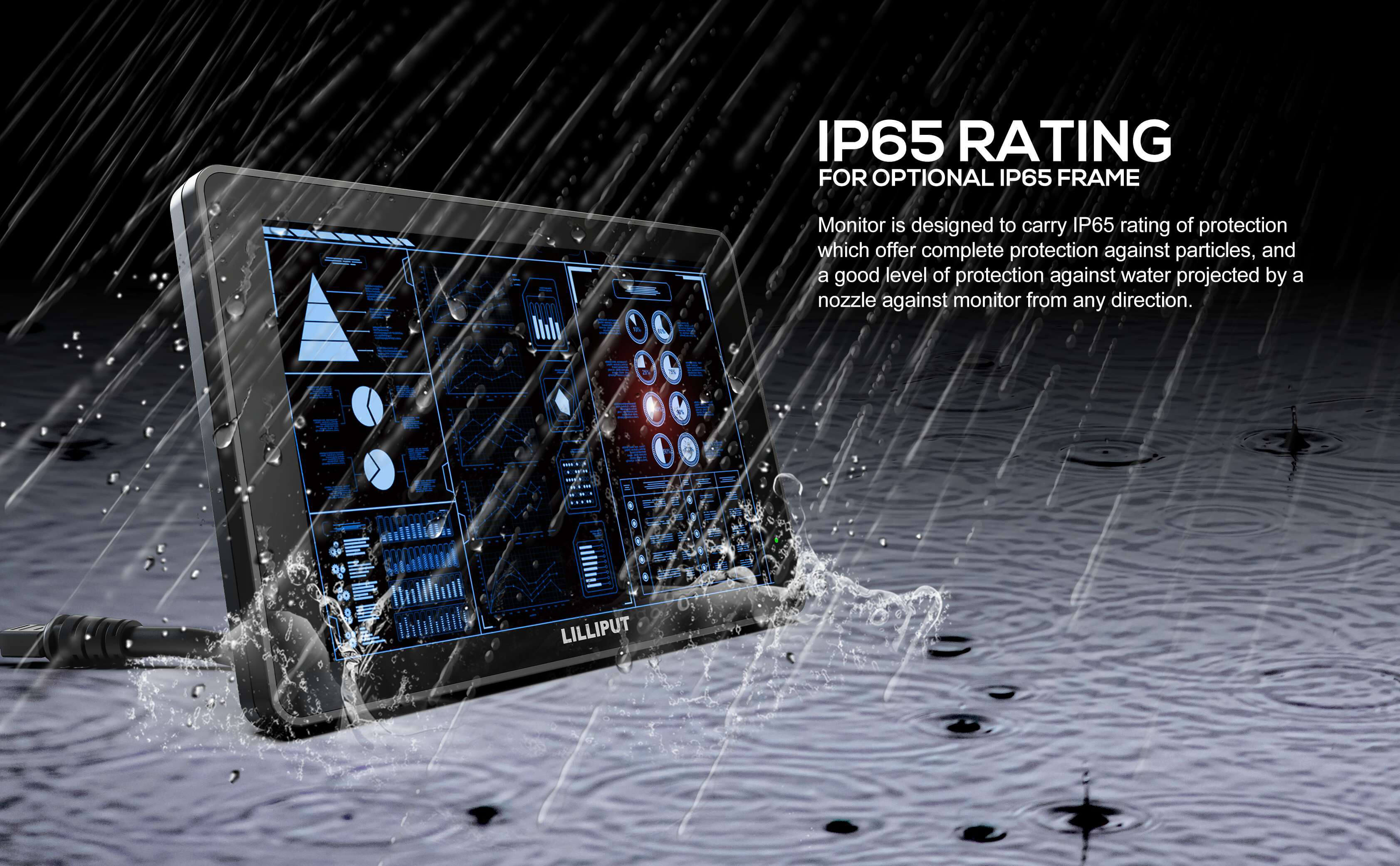

  • IP 65 Frame
  • Remote Control
  • VESA 75 mm Bracket
  • HDMI Cable Lock

Included (with Touch Screen)

  • USB A-C Cable (for touch)
  • USB C-C Cable (With Screw)

Product Downloads

Similar Products

Compare key technical data across similar products.

Technical Data 719 TK701 TK700 UM70 TK1019 TK1330 TK1560 TK1850 TK2150
Display
Screen size 7 inch 7 inch 7 inch 7 inch 10.1 inch 13.3 inch 15.6 inch 18.5 inch 21.5 inch
Native resolution 1280 x 800 800 x 480 800 x 480 800 x 480 1920 x 1200 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080
Aspect ratio 16:10 16:10 16:9 16:9 16:10 16:9 16:9 16:9 16:9
Brightness 1000 cd/m² 1000 cd/m² 1000 cd/m² 250 cd/m² 1500 cd/m² 300 cd/m² 1000 cd/m² 1000 cd/m² 1000 cd/m²
Coating — — — — — — — Anti-glare, anti-fingerprint —
Contrast 800:1 500:1 1000:1 500:1 1000:1 800:1 1000:1 1000:1 1000:1
LED lifetime 50,000 h — — — 50,000 h — — — —
Panel type LCD LCD LCD LCD LCD LCD LCD LCD LCD
Viewing angle 170°/170° (H/V) 140°/120° (H/V) 140°/120° (H/V) 140°/120° (H/V) 170°/170° (H/V) 170°/170° (H/V) 160°/160° (H/V) 170°/170° (H/V) 178°/178° (H/V)
Touch Screen
Touch screen (Optional) 10-point PCAP 10-point capacitive 4-wire resistive 4-wire resistive 10-point PCAP 10-point capacitive 10-point capacitive 10-point PCAP (glove-compatible) 10-point capacitive
Connections
Video inputs 1x HDMI, 1x VGA 1x HDMI 1.4b, 1x VGA, 2x Video (RCA) 1x HDMI, 1x VGA, 2x Composite (RCA) 1x USB Type-A 1x HDMI 1.4b, 1x VGA 1x HDMI, 1x DVI, 1x VGA, 1x Composite 1x HDMI 1.4b, 1x VGA, 1x Audio & Video (RCA) 1x HDMI 1.4b, 1x VGA, 1x Audio & Video (RCA) 1x HDMI 1.4b, 1x VGA, 1x Audio & Video (RCA)
Audio Built-in speaker x 1, HDMI audio, 3.5 mm ear jack (2ch 48kHz 24-bit) Built-in speaker x 1, HDMI 2ch, 3.5 mm ear jack (2ch 48kHz 24-bit), 3.5 mm audio input Built-in speaker x 1, 3.5 mm ear jack (2ch 48kHz 24-bit) — Built-in speaker x 1, HDMI audio, 3.5 mm ear jack (2ch 48kHz 24-bit) 3.5 mm ear jack (2ch 48kHz 24-bit), Built-in speaker x 1 Built-in speakers x 2, HDMI 2ch, 3.5 mm ear jack (2ch 48kHz 24-bit) Built-in speakers x 2, HDMI 2ch, 3.5 mm ear jack (2ch 48kHz 24-bit) Built-in speakers x 2, HDMI 2ch, 3.5 mm ear jack (2ch 48kHz 24-bit)
Additional connections — — — — — — — — —
Video Standards
AV — — — — — — — 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30, 1080p 50/60, 1080i 50/60, 720p 50/60 — 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 720p 50/60, 1080i 50/60, 1080p 50/60 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
VGA 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 — — 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 — — 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
Power
Input voltage DC 9 to 36V DC 12 to 24V DC 12V DC 5V (USB) DC 12 to 24V DC 7 to 24V DC 12 to 24V DC 12 to 24V DC 12 to 24V
Power consumption ≤8.5 W (12V) ≤8.5 W (12V) ≤4.5 W ≤4.5 W ≤19 W (12V) ≤8 W ≤24.5 W (15V) ≤32 W (15V) ≤37 W (15V)
Mechanical
Dimensions 184.5 x 118.8 x 32 mm 210 x 131 x 34.2 mm 226.8 x 124 x 34.7 mm 188 x 123 x 25.8 mm 264 x 183 x 35.6 mm 333.5 x 220 x 34.5 mm 408 x 259 x 36.5 mm 475 x 296 x 45.7 mm 556 x 344.5 x 48.2 mm
Open frame (optional) — — 279.6 x 195.5 x 36.1 mm, 950 g — — — — — —
Weight 410 g 710 g 970 g 385 g 1.31 kg 1.9 kg 2.9 kg 4.6 kg 5.99 kg
Other
Included 12V 2A Power Adapter, HDMI A-A Cable 12V 2A Power Adapter, HDMI A-A Cable, VGA Cable, Audio Input Cable, AV Input Cable x 2, Fixed Screws x 4, Manual 12V DC Adapter, HDMI A-A Cable, VGA Cable, Audio Input Cable, RCA Cable, CD Driver, Manual CD Driver, Manual 12V 3A Power Adapter, HDMI A-A Cable, Screw Kits x 4 12V DC adapter, HDMI A/A cable, VGA Cable, Manual, Screws for VESA mount, Audio BNC cable, Video BNC cable, Drive Disk, Open frame bracket 12V 3A DC Power Adapter, HDMI A to A Cable, VGA Cable, Audio & Video Input Cables, Fixed Screws & Gaskets, Cable Clamps, Manual 15V 3A Power Adapter, 0.8 m HDMI A-A Cable, VGA Cable, Screw Kits x 14, Cable Clamps, Foam Silicone, Audio / Video Cable, Manual 15V 3A Power Adapter, HDMI A-A Cable, VGA Cable, Audio / Video Cable, Fixed Screws, Cable Clamp
Optional IP 65 Frame, Remote Control, VESA 75 mm Bracket, HDMI Cable Lock Remote Control, HDMI Cable Lock Open Frame Bracket — VESA 75 mm Bracket, Remote Control, HDMI Cable Lock VESA folding bracket — VESA 75 mm / 100 mm Bracket, Remote Control —
Environmental
Industrial Ratings — IP64 front panel (IP6X dust, IPX4 water) — — IP65 front panel — IP64 front panel IP65 front (NEMA 4), IK07 IP65 front panel
Operating temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 70°C -20°C to 60°C -20°C to 60°C -10°C to 60°C 0°C to 50°C
Storage temperature -30°C to 80°C -30°C to 70°C -30°C to 70°C -30°C to 70°C -30°C to 80°C -20°C to 70°C -30°C to 70°C -20°C to 60°C -20°C to 60°C
Mounting
VESA mount 75 mm — — — 75 mm VESA mount compatible 75 mm / 100 mm wall mount 75 mm / 100 mm wall mount —
Wall mount — 4 slots — — — — — — Supported
