| Screen size |
10.1 inch |
10.1 inch |
13.3 inch |
7 inch |
5 inch |
7 inch |
| Native resolution |
1920 x 1200 |
1920 x 1200 |
3840 x 2160 |
1920 x 1200 |
1920 x 1080 |
1920 x 1200 |
| Aspect ratio |
16:10 |
16:10 |
16:9 |
16:10 |
16:9 |
16:10 |
| Brightness |
320 cd/m² |
1500 cd/m² |
400 cd/m² |
2000 cd/m² |
400 cd/m² |
500 cd/m² |
| Colour space |
— |
— |
100% DCI-P3 |
100% BT.709 |
ITU-R BT.709 |
ITU-R BT.709 |
| Contrast |
1000:1 |
1000:1 |
100,000:1 |
1200:1 |
1000:1 |
1000:1 |
| HDR |
— |
ST 2084 300/1000/10000 cd/m², HLG |
PQ |
HLG, ST 2084 300, ST 2084 1000, ST 2084 10000 |
— |
— |
| LUT support |
— |
3D-LUT (.cube format) |
— |
3D-LUT (.cube format, 17x17x17 or 33x33x33 BGR) |
— |
— |
| Panel type |
8-bit LCD |
LCD |
OLED |
LCD |
IPS |
IPS |
| Supported log formats |
— |
SLog2/SLog3, CLog, NLog, ArriLog, JLog or User |
— |
SLog2, SLog3, ArriLog, CLog, VLog, JLog, NLog, User (1 to 6) |
— |
— |
| Touch screen |
— |
— |
— |
Capacitive touch |
— |
— |
| Viewing angle |
175°/175° (H/V) |
170°/170° (H/V) |
170°/170° (H/V) |
160°/160° (H/V) |
170°/170° (H/V) |
170°/170° (H/V) |
|
| Video inputs |

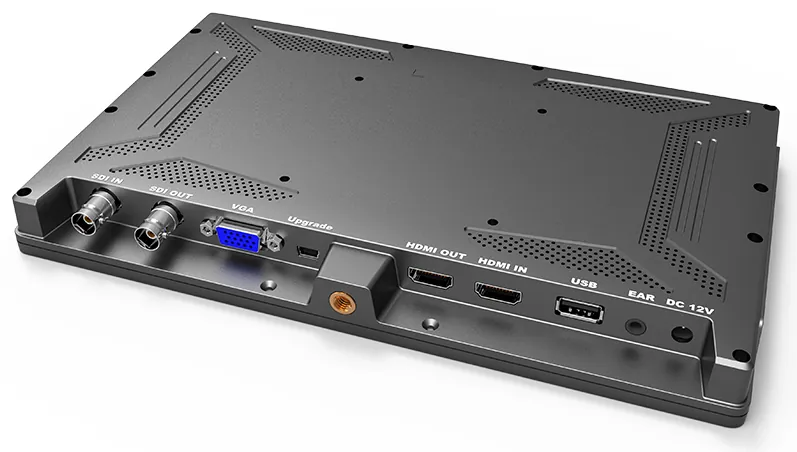

1x 3G-SDI, 1x HDMI 1.4, 1x VGA |
2x 12G-SDI, 1x HDMI 2.0, 1x Tally |
1x HDMI 2.0, 3x HDMI 1.4b (4K 30Hz), 1x 3G-SDI, 1x DisplayPort 1.2 |
1x 3G-SDI, 1x HDMI 2.0 |
1x HDMI 1.4 |
1x HDMI 1.4 |
| Video outputs |
1x 3G-SDI, 1x HDMI 1.4 |
2x 12G-SDI, 1x HDMI 2.0 (4K 60Hz) |
1x 3G-SDI |
1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) |
1x HDMI 1.4 |
1x HDMI 1.4 |
| Audio |
3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker |
3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker |
2x Built-in speakers, 3.5 mm ear jack (2ch 48kHz 24-bit) |
1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit), HDMI 8ch 24-bit |
HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker |
HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker |
|
| 12G-SDI |
— |
2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 |
— |
— |
— |
— |
| 3G-SDI |
1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
— |
1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
— |
— |
| DisplayPort |
— |
— |
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
— |
— |
— |
| HDMI 1.4 |
2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
— |
— |
— |
2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| HDMI 1.4b |
— |
— |
2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
— |
— |
— |
| HDMI 2.0 |
— |
2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 |
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
— |
— |
|
| Audio analysis |
Level meter |
Level meter |
— |
Level meter |
Level meter |
Level meter |

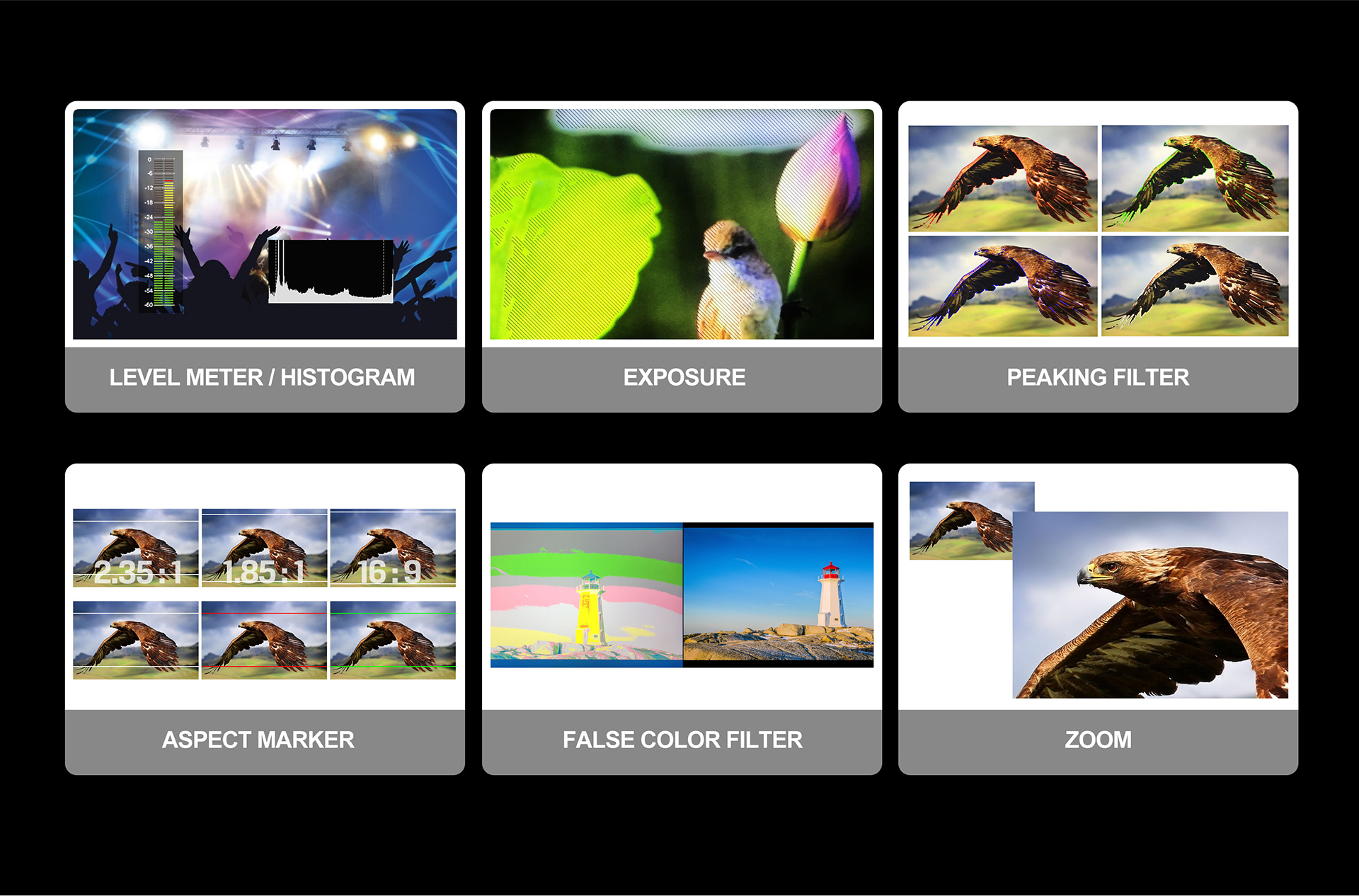

| Video analysis |
Peaking, False Color, Exposure, Histogram, Center/Aspect/Safety marker, Grid, Scan, Check Field, Zoom, Freeze, Image Flip |
Waveform, Peaking, False colour, Exposure, Histogram |
— |
Waveform (Multi, Y, YCbCr, RGB), Vector, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Histogram, Check field |
Peaking, False colour, Exposure, Histogram |
Peaking, False colour, Exposure, Histogram |
|
| Included |
12V DC Adapter, HDMI A/C Cable, VESA F970 Battery plate, Sun shade, Shoe mount, Manual |
12V 3A DC power adapter, Carry case, Gimbal bracket, VESA 75 mm F970 battery plate, Tally connector |
Gimbal bracket, 0.8 m HDMI A-A cable, 12V 3A DC power adapter, Sunshade, VESA mount plate bracket, User manual card |
0.8 m HDMI A-D cable, LANC cable, Mini shoe mount, USB drive disk |
Sun Shade, HDMI A/C Cable, Shoe Mount, User Manual |
Folding sun shade, Silicone rubber case, HDMI A/C cable, Battery plate (F970), Hot shoe mount, User manual |
| Optional |
VESA Mount Plate, V-Lock / Anton Bauer Mount, VESA Folding Bracket, Gimbal bracket |
V-Lock / Anton Bauer battery plate |
V-mount or Anton Bauer battery plate |
12V 2A DC power adapter, Battery plate adapter, Wireless video transmission, Carry case |
— |
— |
|
| Gimbal bracket |
— |
Included |
Included |
— |
— |
— |
| Shoe mount |
3x 1/4 inch BSW |
3x 1/4 inch BSW |
— |
3x 1/4 inch BSW |
3x 1/4 inch BSW |
3x 1/4 inch BSW |
| VESA mount |
75 x 75 mm |
75 x 75 mm (battery plate included) |
75 x 75 mm (battery plate included) |
— |
— |
— |
|
| Anamorphic de-squeeze |
— |
— |
— |
1.33X, 1.5X, 1.8X, 2X, 2X MAG |
— |
— |
| Aspect markers |
— |
— |
— |
16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, Grid, User |
— |
— |
| Camera control |
— |
— |
— |
LANC (Sony S-Lanc compatible) |
— |
— |
| Centre marker |
— |
— |
— |
On/Off |
— |
— |
| Colour temperature |
— |
— |
— |
3200K, 5500K, 6500K, 7500K, 9300K, User |
— |
— |
| Comparison |
— |
— |
— |
Gamma/HDR, Colour space, Camera LUT |
— |
— |
| Display scan |
— |
— |
— |
Aspect, Pixel to pixel, Zoom |
— |
— |
| Freeze |
— |
— |
— |
On/Off |
— |
— |
| Function buttons |
User-definable (default: F1 Peaking, F2 Level Meter) |
User-definable |
User-definable (default: Display Mode) |
FN user-definable |
User-definable (peaking, waveform, histogram, false colour, exposure, centre marker, aspect marker, etc.) |
User-definable (peaking, level meter, centre marker, aspect marker, false colour, exposure, histogram, etc.) |
| Gamma |
— |
— |
— |
1.8 to 2.8 |
— |
— |
| H/V delay |
— |
— |
— |
Horizontal, Vertical, H/V |
— |
— |
| Image mirroring |
Vertical flip, Horizontal flip |
Vertical flip, Horizontal flip |
Vertical flip, Horizontal flip |
Vertical flip, Horizontal flip |
Vertical flip, Horizontal flip |
Vertical flip, Horizontal flip |
| Menu control |
— |
— |
— |
Capacitive touch menu; centre swipe menu; left/right backlight and volume shortcuts |
— |
— |
| Overscan |
— |
— |
— |
On/Off |
— |
— |
| Peaking |
— |
— |
— |
Red, Green, Blue, White |
— |
— |
| Safety marker |
— |
— |
— |
80%, 85%, 88%, 90%, 93%, 95% |
— |
— |
| Time code |
— |
— |
— |
LTC, VITC |
— |
— |
| Touch gestures |
— |
— |
— |
Centre swipe: menu; left/right swipe: backlight/volume; two-finger zoom; shortcut menu swipe |
— |
— |
| View modes |
— |
Picture-by-Picture, Picture-in-Picture |
Picture-by-Picture, Picture-in-Picture, Quad-View |
— |
— |
— |
|

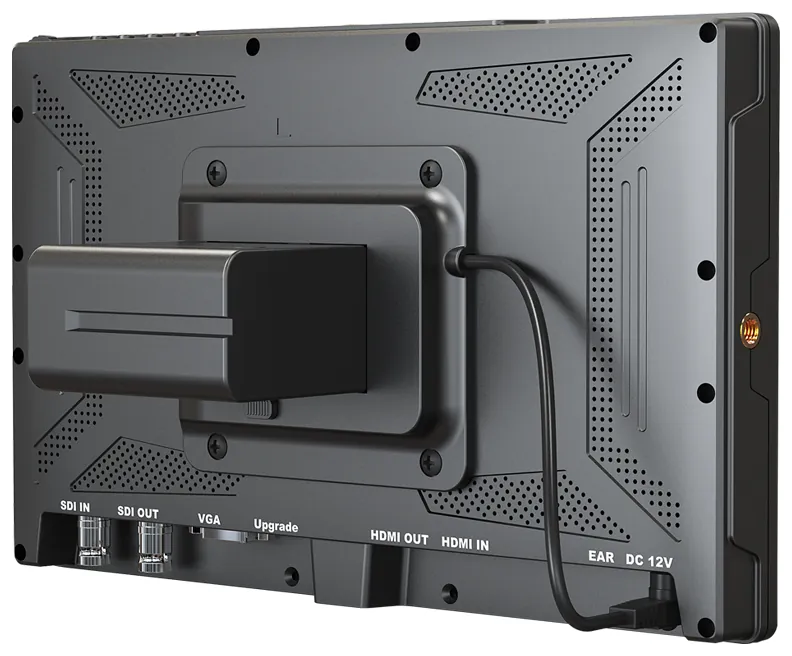

| Compatible batteries |
NP-F Series (Sony F970) |
Sony NP-F (F970) via VESA 75 plate |
— |
Sony NP-F series |
Sony NP-F (F970), Canon LP-E6 |
Sony NP-F (F970), Canon LP-E6 |
| Input voltage |
DC 7 to 24V |
DC 7 to 24V |
DC 7 to 24V |
DC 7 to 24V |
DC 7 to 24V |
DC 7 to 24V |
| Input voltage (battery) |
7.2V nominal |
— |
— |
— |
7.2V nominal |
7.2V nominal |
| Power consumption |
≤13 W |
≤37 W (12V) |
≤20 W (12V) |
≤16 W (15V) |
≤9 W |
≤12 W |
|

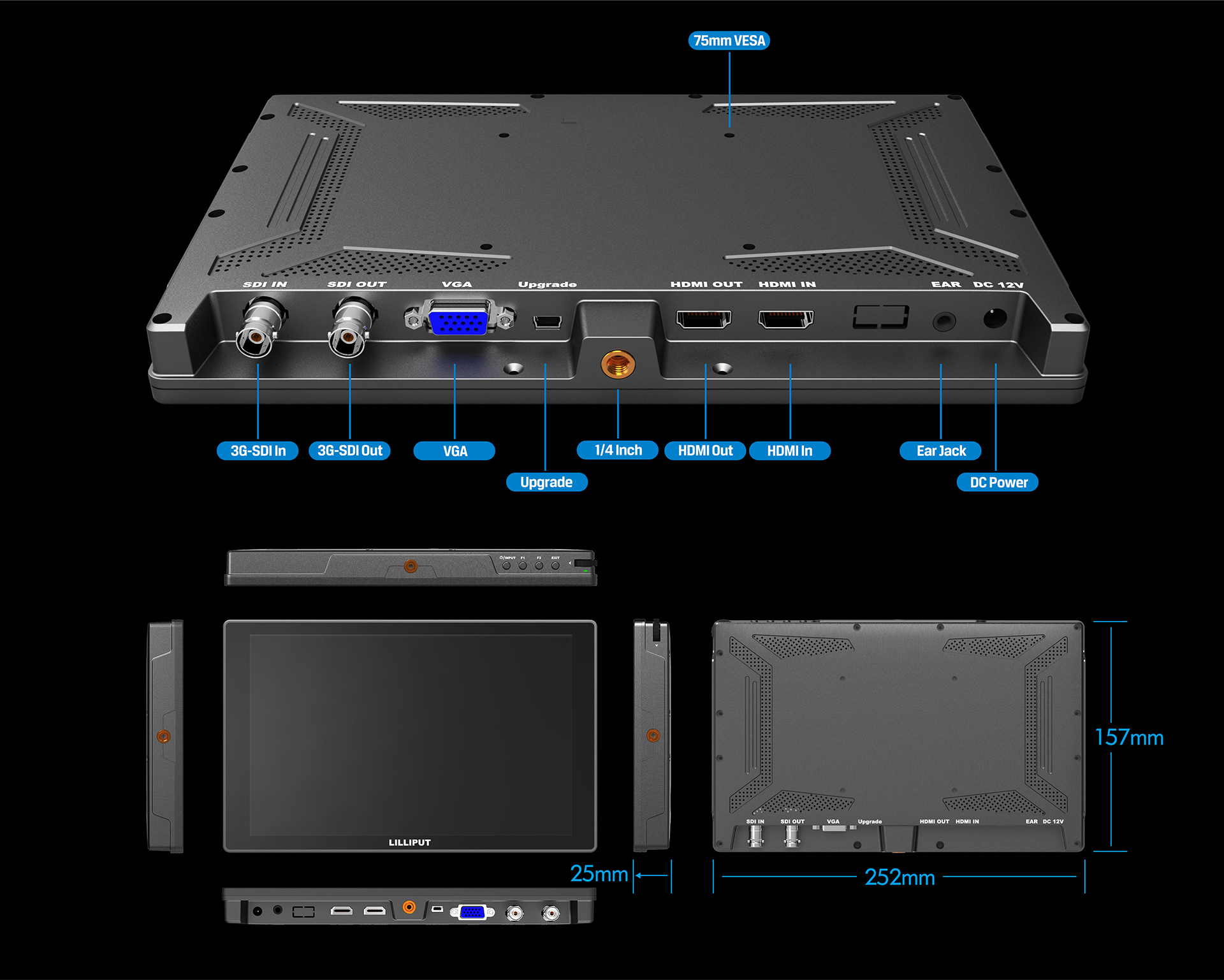

| Dimensions |
252 x 157 x 25 mm |
251 x 170 x 30.5 mm |
320 x 208 x 26.5 mm |
186 x 128 x 29 mm |
129.6 x 80.1 x 23.6 mm |
182.1 x 124 x 20.5 mm |
| Weight |
550 g |
1.1 kg |
1.15 kg |
520 g |
118 g |
320 g |
|
| Operating temperature |
0°C to 50°C |
0°C to 50°C |
0°C to 50°C |
0°C to 50°C |
-20°C to 50°C |
0°C to 50°C |
| Storage temperature |
-20°C to 60°C |
-20°C to 60°C |
-20°C to 60°C |
-20°C to 60°C |
-30°C to 70°C |
-20°C to 60°C |
