BM280-12G BM280-12G BM280-12G BM280-12G BM280-12G BM280-12G BM280-12G BM280-12G

Key Features

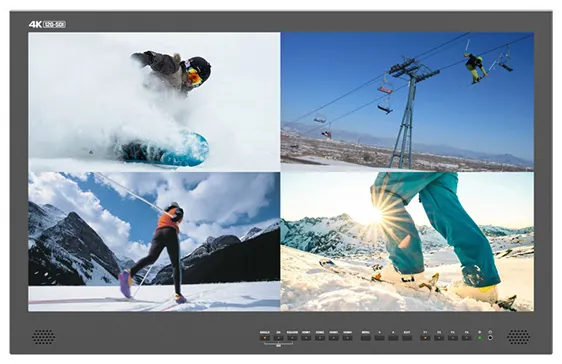

  • 28 inch 4K display, 300 cd/m², 1000:1 contrast

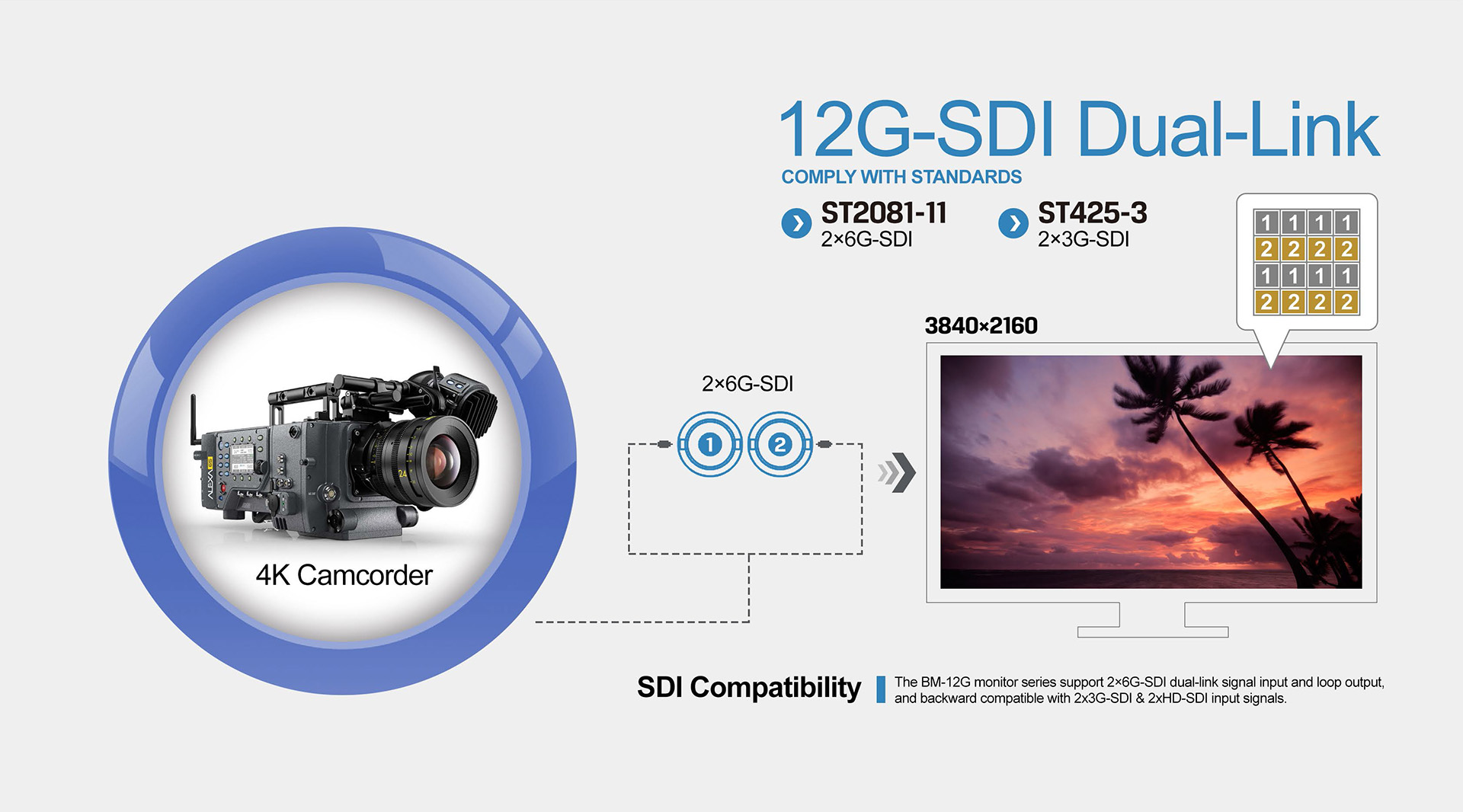

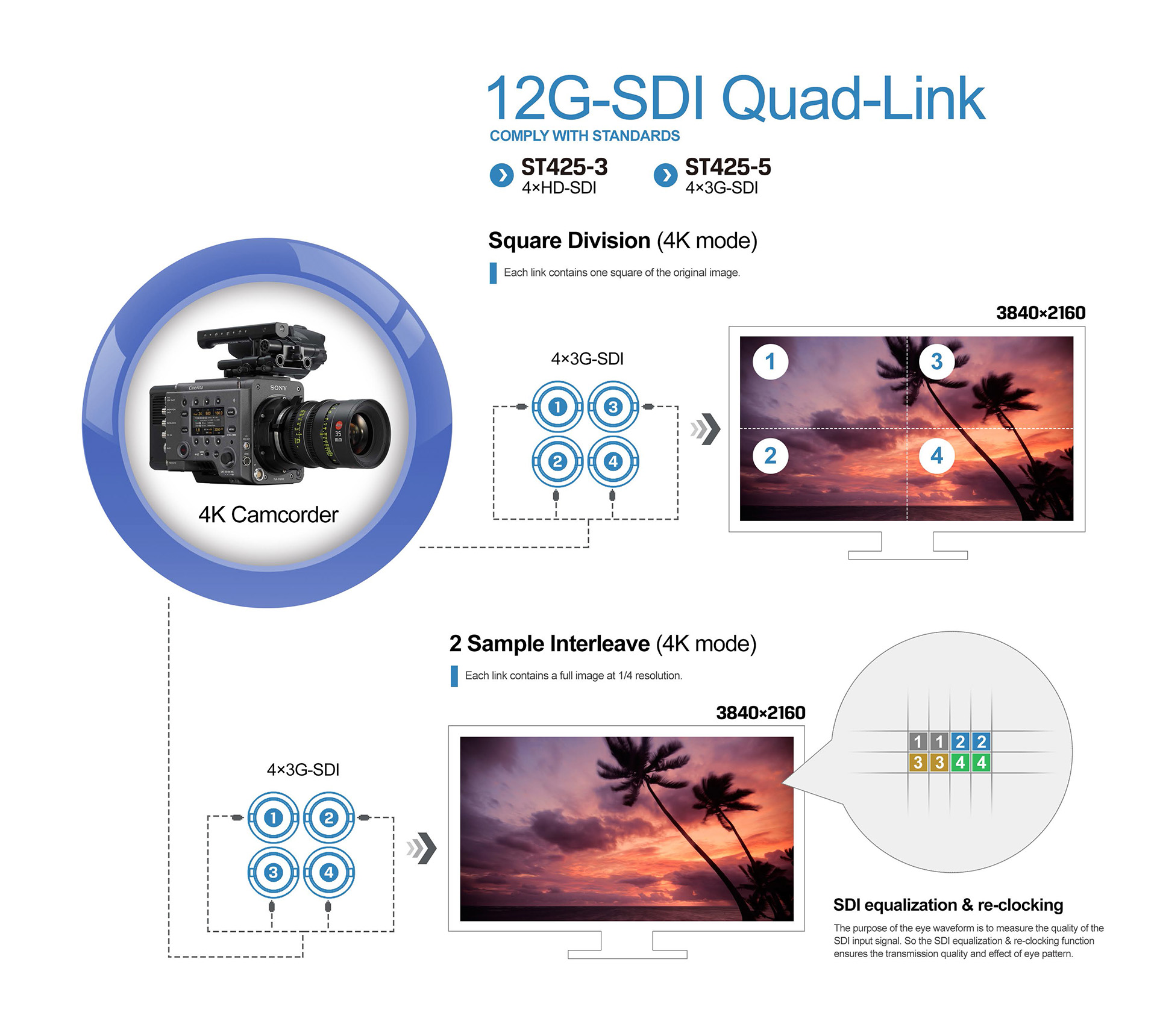

  • 2x 12G-SDI, 2x 3G-SDI (4K single/dual/quad link)
  • 1x HDMI 2.0, 3x HDMI 1.4 — multi-input flexibility
  • Video loop output: uncompressed true 10-bit or 8-bit 4:2:2

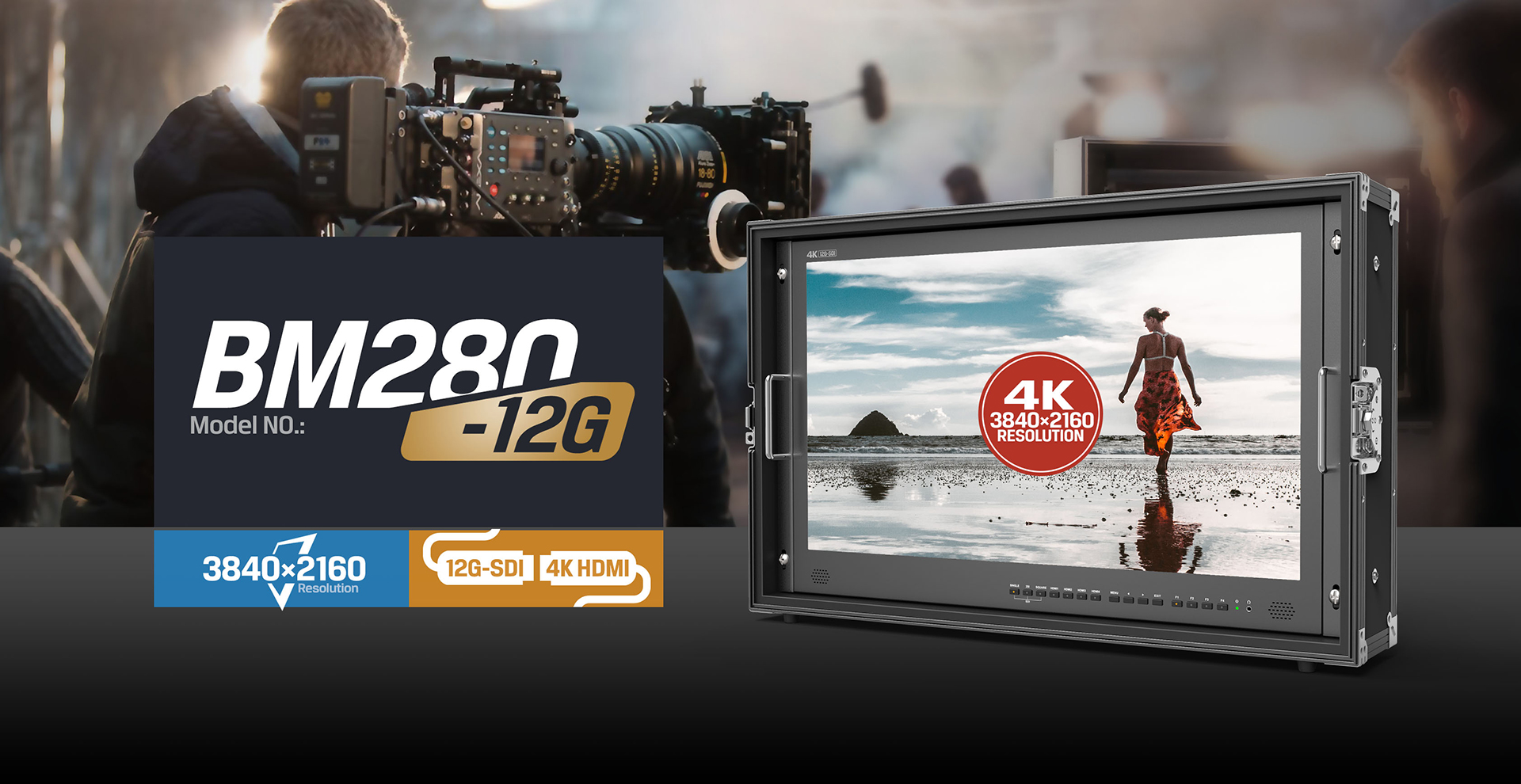

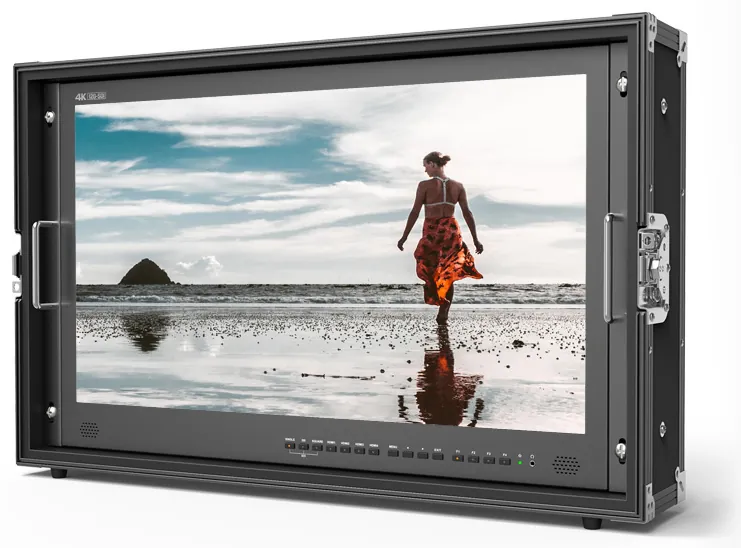

  • Supplied with enclosed flight case and sun shade — ideal for transport between sets and venues
  • V-Lock or Anton Bauer battery compatible
  • TALLY connector; 12ch 3G-SDI audio, 2ch HDMI audio

Product Enquiry

Request a quote or ask a question about the BM280-12G. Our UK team will respond promptly.

Technical Data

Display

Screen size28 inch
Aspect ratio16:9
Native resolution3840 x 2160
Panel typeLED
Brightness300 cd/m²
Contrast1000:1
Viewing angle170°/160° (H/V)

Connections

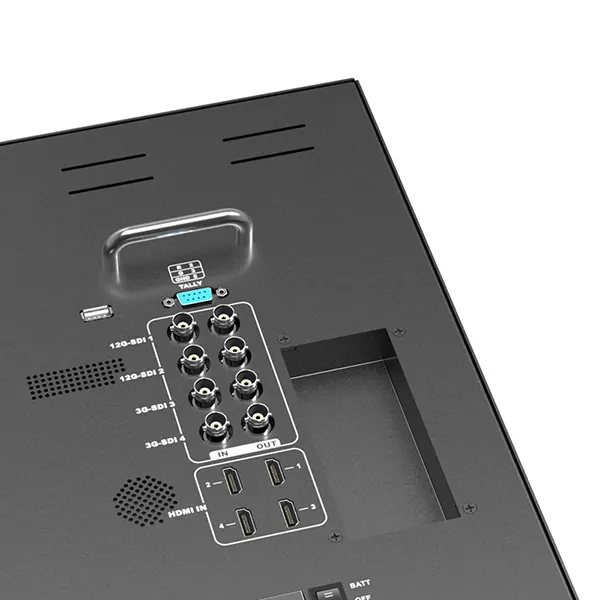

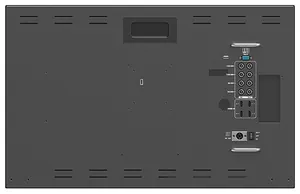

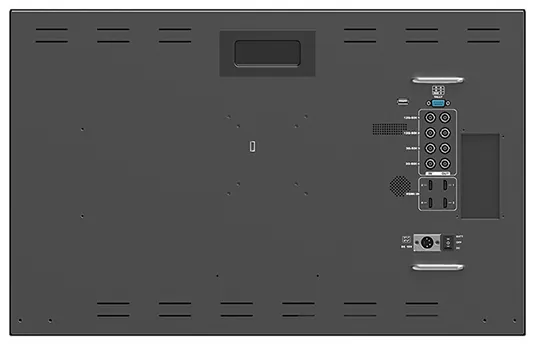

Video inputs2x 12G-SDI, 2x 3G-SDI (4K single/dual/quad link), 1x HDMI 2.0, 3x HDMI 1.4
Video outputs2x 12G-SDI, 2x 3G-SDI (uncompressed 10-bit or 8-bit 4:2:2)
Audio3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2

Video Standards

3G-SDI720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
HDMI720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60

Power

Input voltageDC 12 to 24V
Power consumption≤61.5 W
Compatible batteriesV-Lock or Anton Bauer mount
Input voltage (battery)14.4V nominal

Environmental

Operating temperature0°C to 50°C
Storage temperature-20°C to 60°C

Mechanical

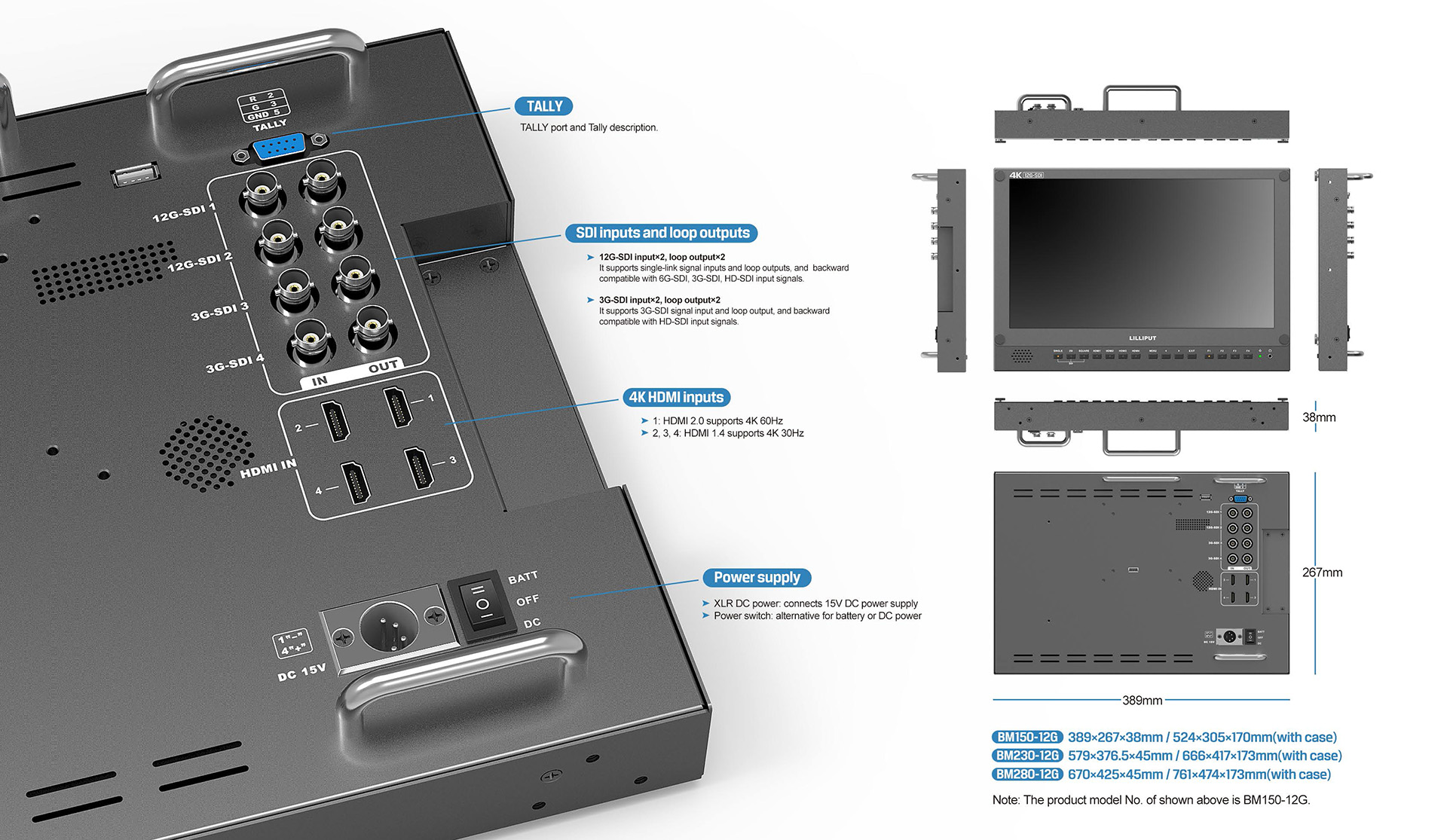

Dimensions670 x 425 x 45 mm (device only)
Weight9.4 kg (device only)

Mounting

VESA mountVESA mount plate included
Base bracketsBase brackets included

Accessories

Included

  • Carrying case
  • Sun shade
  • VESA Mount Plate
  • V-Lock / Anton Bauer Mount
  • 15V DC Adapter
  • Base Bracket
  • TALLY connector
  • Fixing belt
  • User manual

Optional

  • Acrylic Screen Protector
  • WHDI accessories

Product Downloads

Similar Products

Compare key technical data across similar products.

Technical Data BM280-12G BM150-12G BM230-12G Q10 Q17 Q28-8K Q23-8K Q31-8K UQ23
Display
Screen size 28 inch 15.6 inch 23.8 inch 10.1 inch 17.3 inch 28 inch 23.8 inch 31.5 inch 23.8 inch
Native resolution 3840 x 2160 3840 x 2160 3840 x 2160 1920 x 1200 1920 x 1080 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160
Anamorphic de-squeeze — — — — 2x, 1.5x, 1.33x — — — —
Aspect ratio 16:9 16:9 16:9 16:10 16:9 16:9 16:9 16:9 16:9
Bit depth — — — — — — — — 8+2 (FRC) display; 12-bit processing
Brightness 300 cd/m² 330 cd/m² 300 cd/m² 1500 cd/m² 300 cd/m² 300 cd/m² 300 cd/m² 350 cd/m² 1200 cd/m²
Colour space — — — — SMPTE-C, Rec.709, EBU, Native; calibration to Rec.709 (optional) Calibration to Rec.709 (optional calibration unit) Calibration to Rec.709 (optional calibration unit) Calibration to Rec.709 (optional calibration unit) Calibration to Rec.709, DCI-P3, NTSC, BT.2020
Contrast 1000:1 1000:1 1000:1 1000:1 1200:1 1000:1 1000:1 1300:1 1000:1
HDR — — — ST 2084 300/1000/10000 cd/m², HLG ST 2084 300/1000/10000, HLG HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000
LUT support — — — 3D-LUT (.cube format) — — — — —
Look up table support — — — — 3D LUT (.cube format) 3D LUT (.cube format) 3D LUT (.cube format) 3D LUT (.cube format) 3D LUT (.cube format)
Panel type LED LED LED LCD LCD LED LED LED LED
Supported log formats — — — SLog2/SLog3, CLog, NLog, ArriLog, JLog or User SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
Viewing angle 170°/160° (H/V) 176°/176° (H/V) 178°/178° (H/V) 170°/170° (H/V) 170°/170° (H/V) 178°/178° (H/V) 178°/178° (H/V) 178°/178° (H/V) 178°/178° (H/V)
Connections
Video inputs 2x 12G-SDI, 2x 3G-SDI (4K single/dual/quad link), 1x HDMI 2.0, 3x HDMI 1.4 2x 12G-SDI, 2x 3G-SDI (4K single/dual/quad link), 1x HDMI 2.0, 3x HDMI 1.4 2x 12G-SDI, 2x 3G-SDI (4K single/dual/quad link), 1x HDMI 2.0, 3x HDMI 1.4 2x 12G-SDI, 1x HDMI 2.0 (4K 60Hz), 1x Tally 2x 12G-SDI, 2x 3G-SDI (4K Single/Dual/Quad Link), 1x HDMI 2.0, 1x SFP (optional optical module) 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.1
Video outputs 2x 12G-SDI, 2x 3G-SDI (uncompressed 10-bit or 8-bit 4:2:2) 2x 12G-SDI, 2x 3G-SDI (uncompressed 10-bit or 8-bit 4:2:2) 2x 12G-SDI, 2x 3G-SDI (uncompressed 10-bit or 8-bit 4:2:2) 2x 12G-SDI, 1x HDMI 2.0 (4K 60Hz) 2x 12G-SDI, 2x 3G-SDI, 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.1
Audio 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack, Built-in speaker x 1 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speaker x 1 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), Built-in speakers x 2 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2
Video Standards
3G-SDI 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
SFP — — — — — 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
Mounting
1/4 inch screw — — — Mounting hole — — — — —
Base brackets Base brackets included Base brackets included Base brackets included — Base brackets (1 pair) included Base brackets included Base brackets included Base brackets included Base brackets included
Gimbal bracket — — — Included Included — — — —

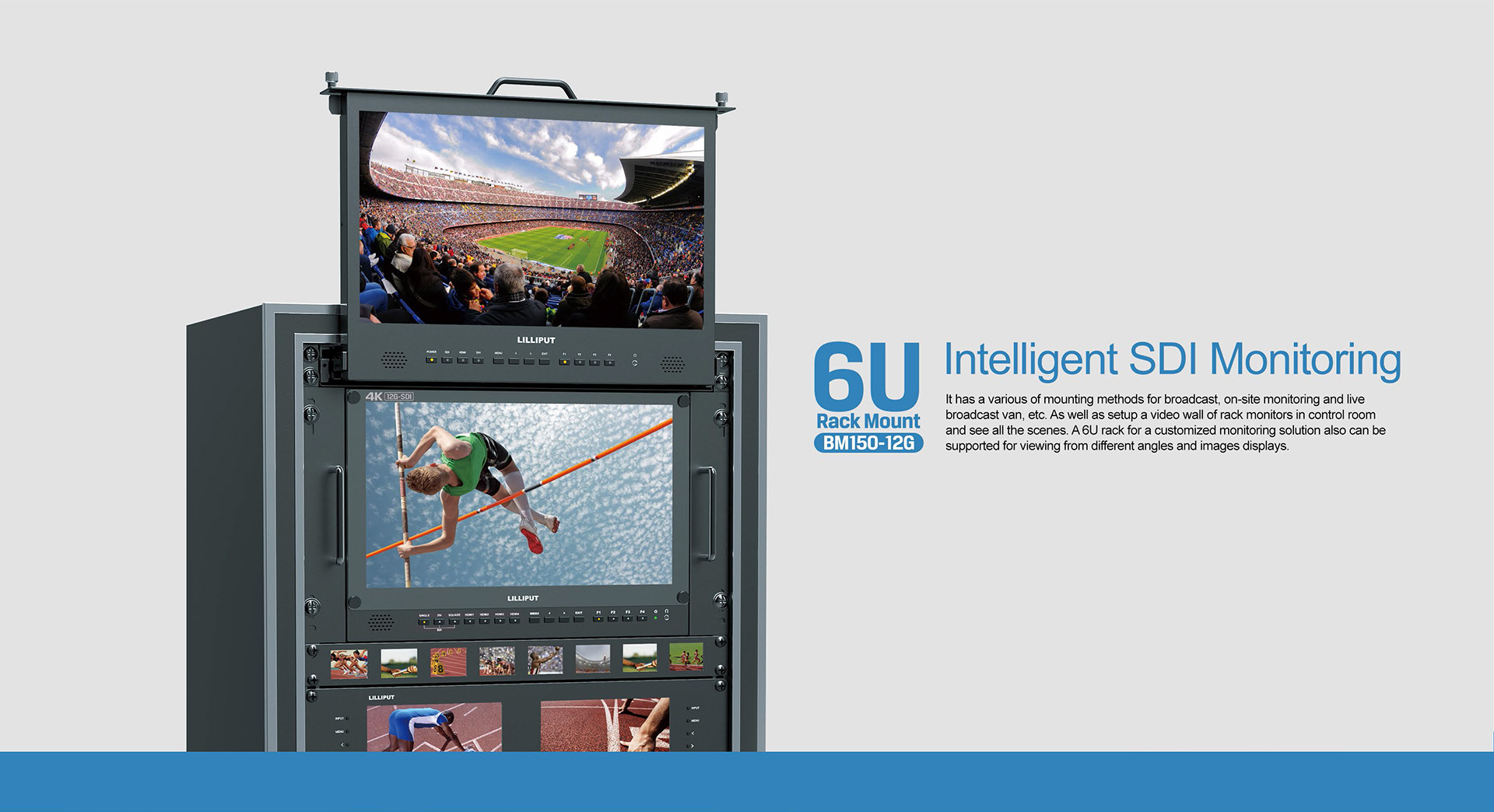

Rack mount — 6U rackmount available — — — 19 inch rack mount brackets (optional) 19 inch rack mount brackets (optional) — —
VESA mount VESA mount plate included VESA mount plate included VESA mount plate included VESA 75 mm (battery plate included) VESA 75 mm and 100 mm (external bracket) VESA 75 and 100 (plate included) VESA 75 and 100 (plate included) VESA 75 and 100 (plate included) VESA mount plate included
Operational Features
Aspect markers — — — — — — — — 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User
Colour temperature — — — — — — — — 3200K, 5500K, 6500K, 7500K, 9300K, User
Comparison — — — — — — — — Colour space, HDR, Gamma, Camera Log (side-by-side with original)
Function buttons — — — User-definable — — — — F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.)
Gamma — — — — — — — — 1.8 to 2.8
Menu control — — — — — — — — Custom Menu Knob (brightness, contrast, volume, peaking, etc.)
Peaking — — — — — — — — Red, Green, Blue, White, Black
Remote control — — — — LAN (10/100), RS422 In/Out, GPI (8-pin RJ45) GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out
Tally — — — — Red, Green, Yellow — — — Red, Green, Yellow
Time code — — — — LTC, VITC — — — LTC, VITC
UMD — — — — User-defined text; TSL V3.1 protocol — — — User-defined text (7 colours)

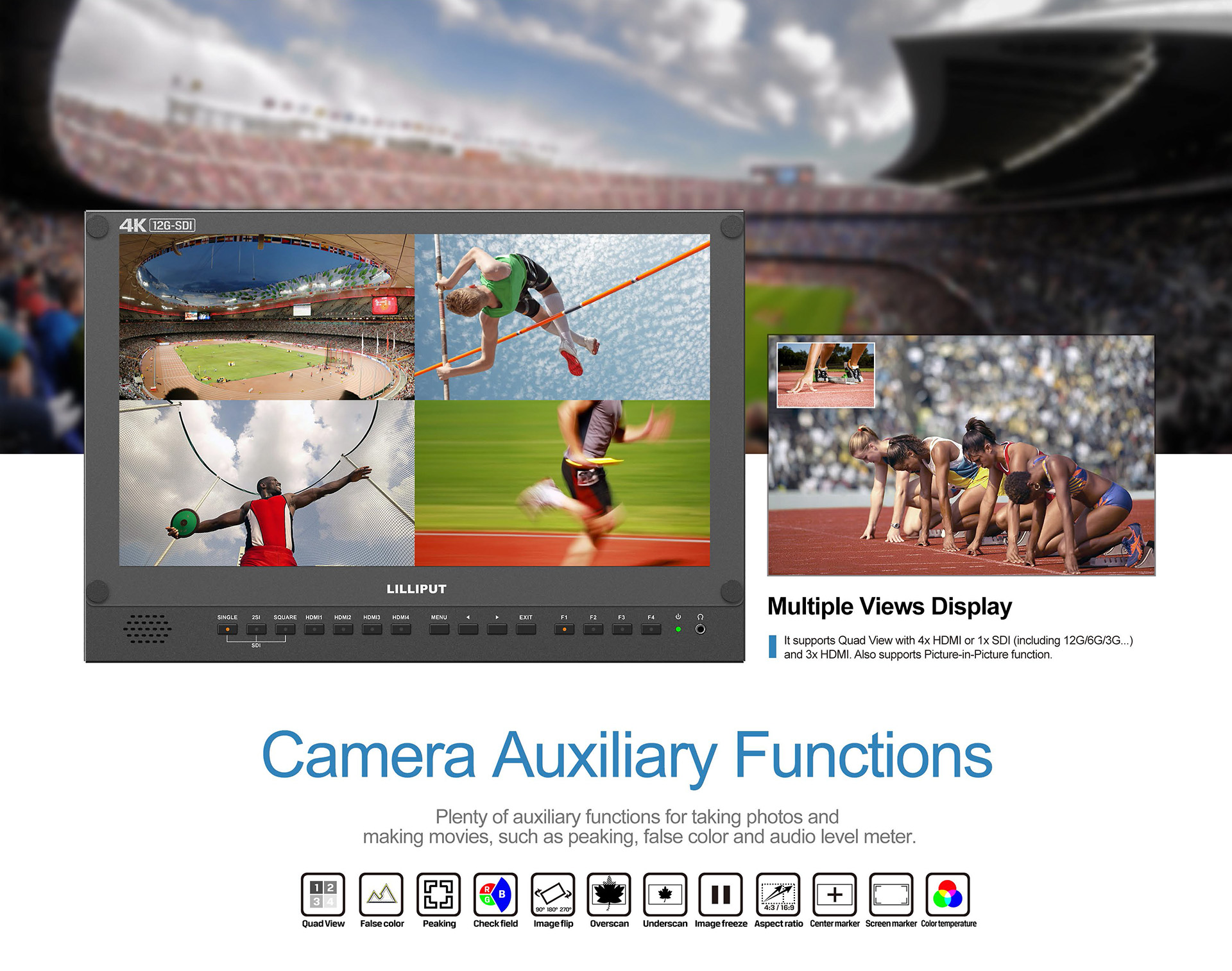

View modes — — — — — — — — Quad-split multiview, SDI1 to 4, SFP, HDMI
Power
Compatible batteries V-Lock or Anton Bauer mount V-Lock or Anton Bauer mount V-Lock or Anton Bauer mount Sony NP-F (F970) via VESA 75 plate V-Lock or Anton Bauer mount V-Lock or Anton Bauer mount V-Lock or Anton Bauer mount V-Lock or Anton Bauer mount —
Input voltage DC 12 to 24V DC 12 to 24V DC 12 to 24V DC 7 to 24V DC 12 to 24V DC 12 to 24V DC 12 to 24V DC 12 to 24V DC 15-24V
Input voltage (battery) 14.4V nominal 14.4V nominal 14.4V nominal — 14.4V nominal 14.8V nominal 14.8V nominal 14.8V nominal —
Power consumption ≤61.5 W ≤32 W ≤61.5 W ≤37 W (12V) ≤26.5 W ≤65 W (15V) ≤60 W (15V) ≤65 W (15V) ≤90 W (at 19V)
Mechanical
Dimensions 670 x 425 x 45 mm (device only) 389 x 267 x 38 mm 579 x 376.5 x 45 mm 251 x 170 x 30.5 mm 434 x 263 x 54 mm 638 x 414.3 x 45.7 mm 567 x 376.4 x 45.7 mm 717.5 x 461.7 x 47.4 mm 576.6 x 375.5 x 53.5 mm (device only)
Dimensions (with case) — 524 x 305 x 170 mm 666 x 417 x 173 mm — — — — — —
Weight 9.4 kg (device only) 3.4 kg 8.6 kg 1.1 kg 3.2 kg 8.6 kg 7.4 kg 13.0 kg 7.7 kg (device only)
Weight (with case) — 12 kg 17 kg — — — — — —
Other
Included Carrying case, Sun shade, VESA Mount Plate, V-Lock / Anton Bauer Mount, 15V DC Adapter, Base Bracket, TALLY connector, Fixing belt, User manual Carrying case, Sun shade, VESA Mount Plate, V-Lock / Anton Bauer Mount, 15V DC Adapter, Base Bracket, TALLY connector, Fixing belt, User manual Carrying case, Sun shade, VESA Mount Plate, V-Lock / Anton Bauer Mount, 15V DC Adapter, Base Bracket, TALLY connector, Fixing belt, User manual 12V 3A DC power adapter, Suitcase, Gimbal bracket, VESA 75 mm F970 battery plate, Tally connector 15V DC Adapter, Gimbal bracket, Base Bracket, VESA Mount Plate, V-Lock or Anton Bauer Mount, Suitcase, Acrylic Screen Protector, 8GB USB Flash Disk (User guide and software) 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk 19V 6A Power Adapter, Base Brackets, USB Flash Disk, V-Mount / AB Battery Plate, VESA Mount Plate, D-Tap to XLR Connector
Optional Acrylic Screen Protector, WHDI accessories Acrylic Screen Protector, WHDI accessories, 6U rackmount Acrylic Screen Protector, WHDI accessories V-Lock / Anton Bauer battery plate Carrying Case, Rack Mount Bracket, SFP Optical Fiber Module Carrying Case, Sunshade (Carrying Case only), SFP Optical Fiber Module Carrying Case, Sunshade (Carrying Case only), SFP Optical Fiber Module SFP Optical Fiber Module SFP Optical Fiber, Suitcase & Sunshade
Environmental
Operating temperature 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C
Storage temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C
Scopes
Audio analysis — — — Level meter Audio vector, Level meter Audio vector, Level meter Audio vector, Level meter Audio vector, Level meter Audio vector, Level meter
Video analysis — — — Waveform, Peaking, False colour, Exposure, Histogram Waveform (Multi, Y, YCbCr, RGB), Vector, Histogram, 4 Bar Display, Peaking, False colour (Default/Spectrum/ARRI/RED), Exposure, Check field Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom

Compare all technical data

Ready to order?

Supplied with an enclosed flight case — ideal for transportation between sets and venues. The BM280-12G combines 4K 12G-SDI and multi-HDMI inputs for broadcast in the field.
