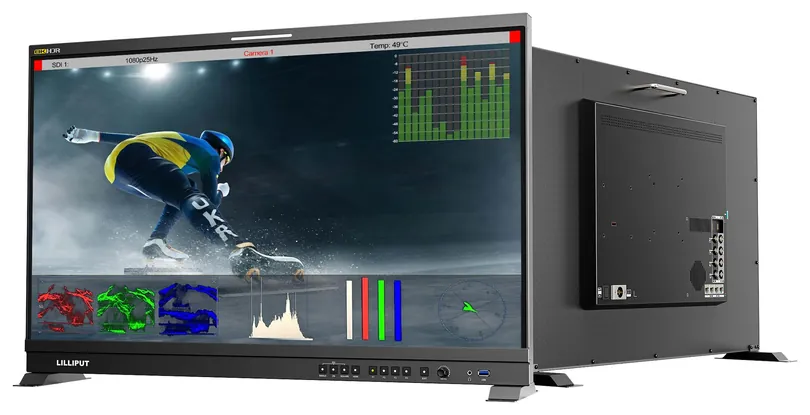

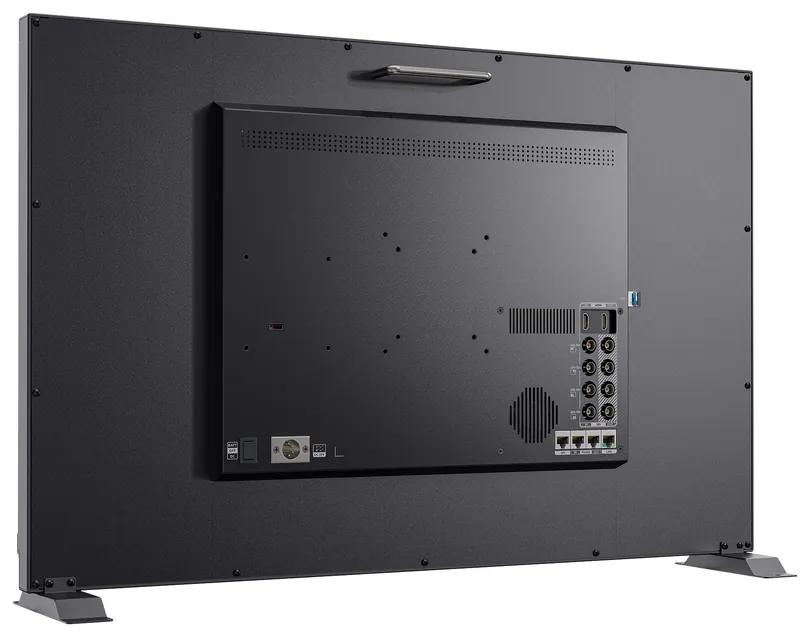

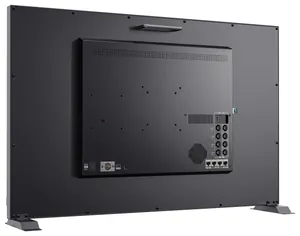

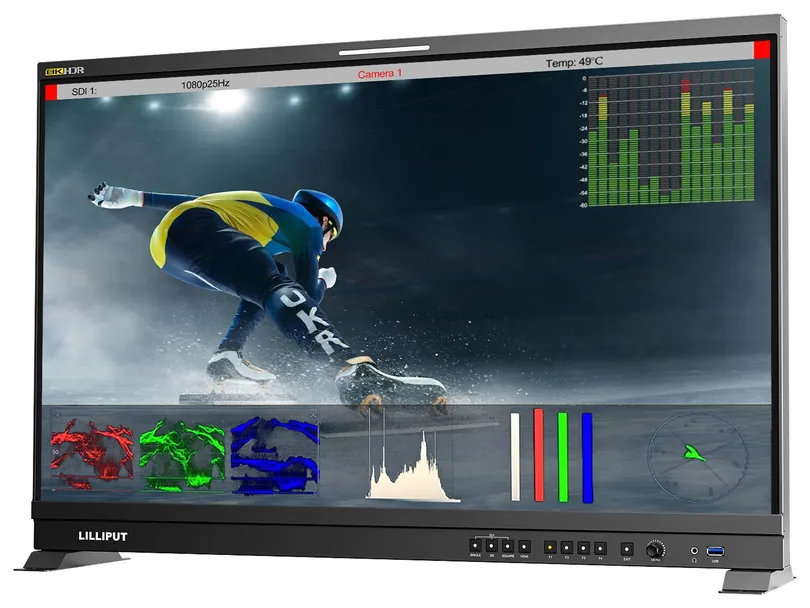

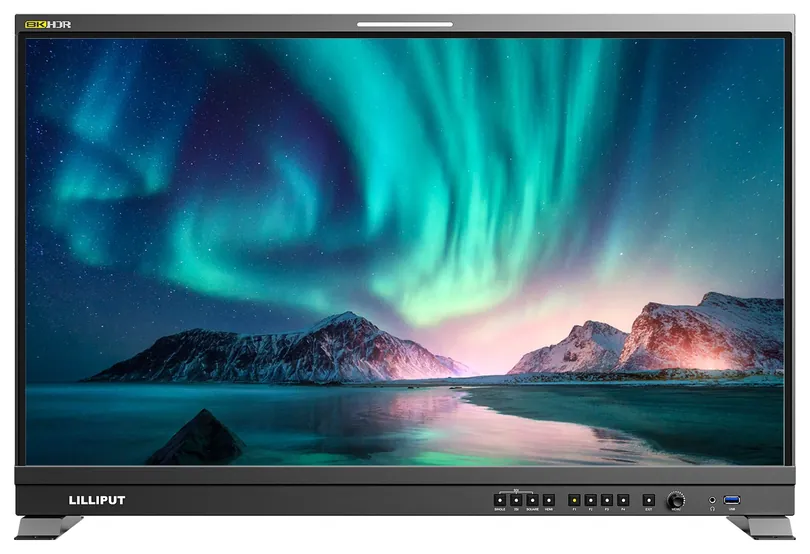

Q31-8K Q31-8K Q31-8K Q31-8K Q31-8K Q31-8K Q31-8K

Key Features

  • 31.5 inch 4K display, 350 cd/m², 1300:1 contrast
  • 4x 12G-SDI (quad-link 8K), 1x 12G SFP+ (fiber optional), 1x HDMI 2.0

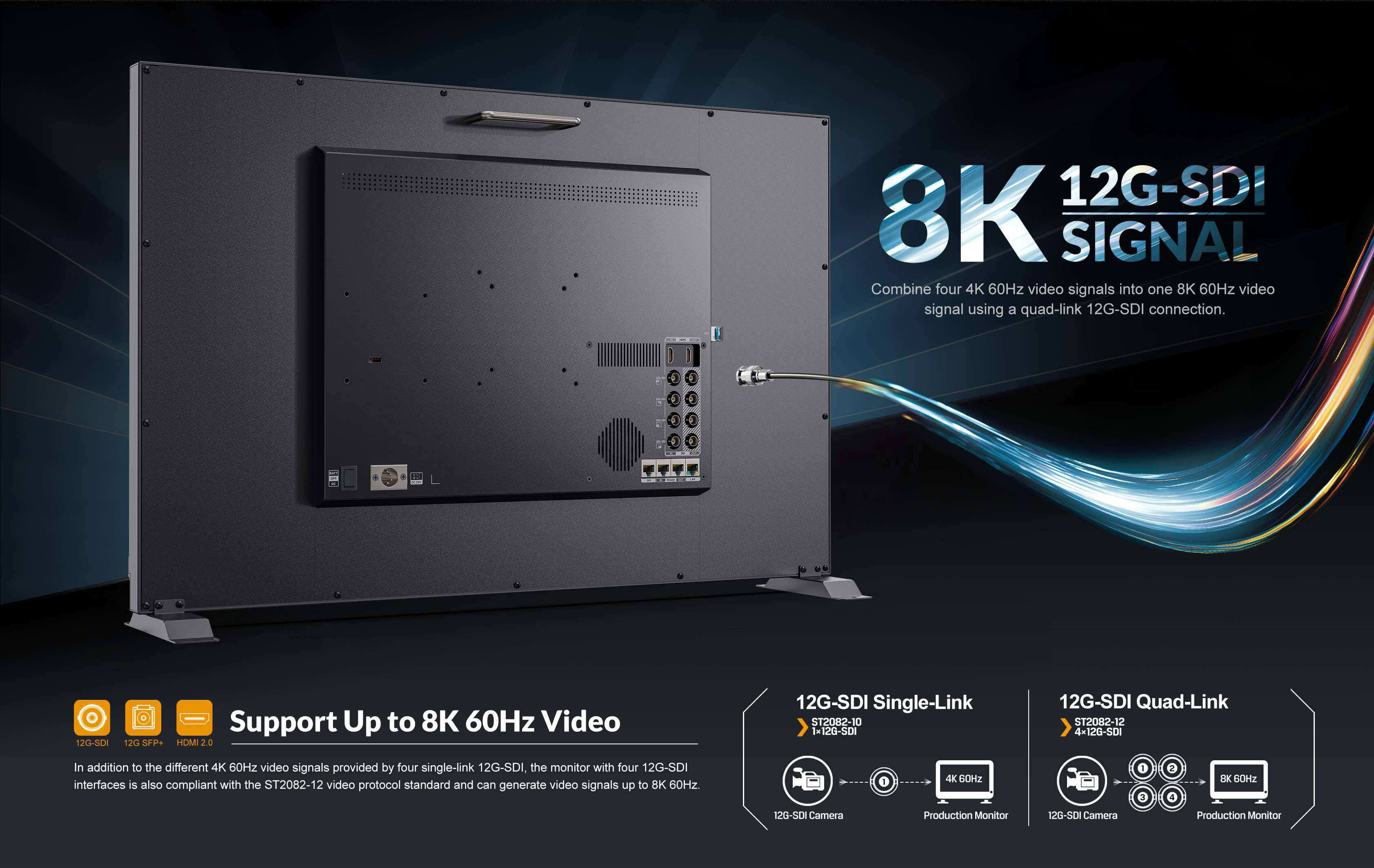

  • Up to 8K 60Hz via quad-link 12G-SDI
  • HDR: HLG, ST 2084 (300/1000/10000 cd/m²)
  • Log formats: SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
  • 3D LUT (.cube format); calibration to Rec.709
  • V-Lock or Anton Bauer battery compatible

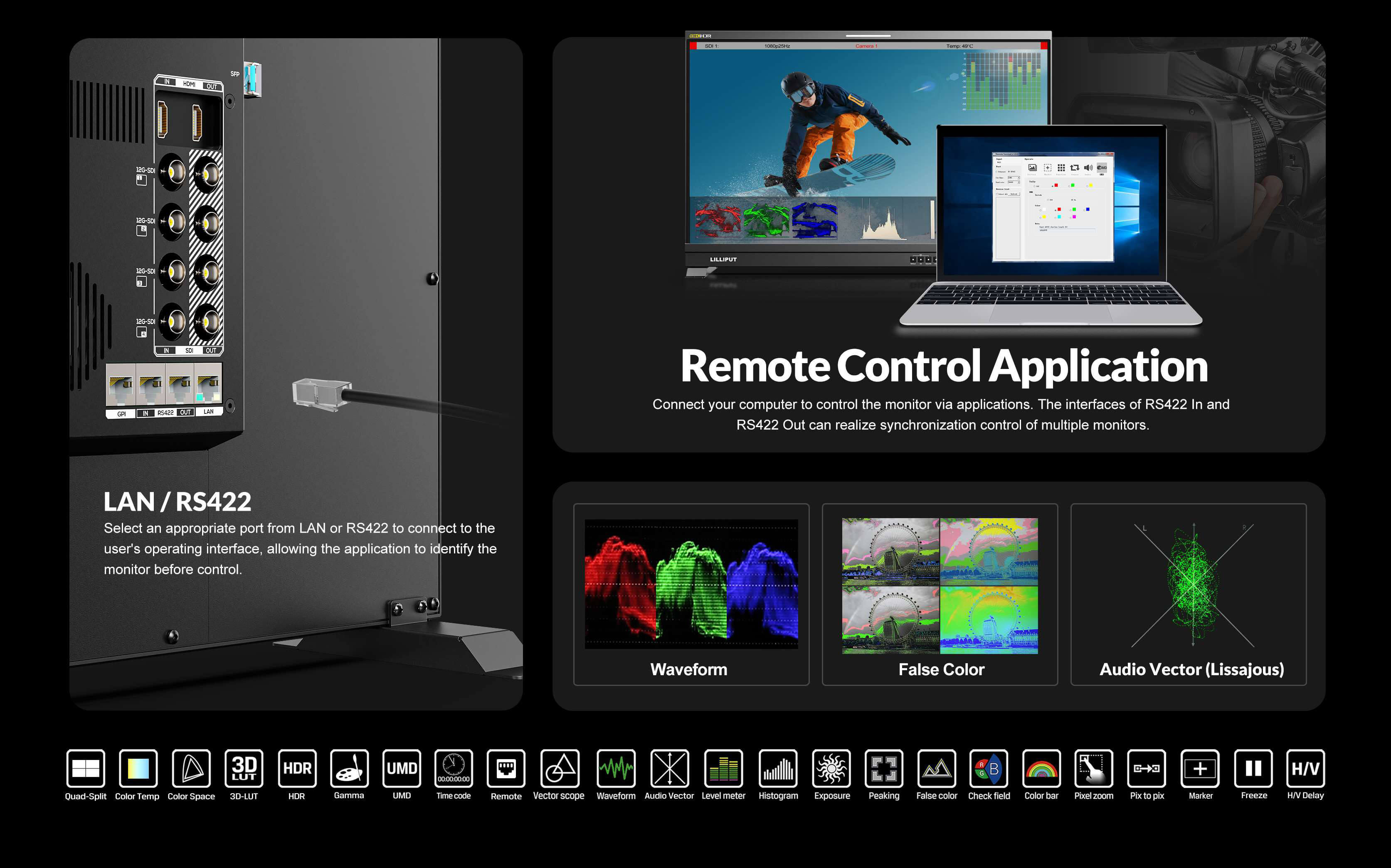

  • GPI, LAN, RS422 remote control

Product Enquiry

Request a quote or ask a question about the Q31-8K. Our UK team will respond promptly.

Technical Data

Display

Screen size31.5 inch
Aspect ratio16:9
Native resolution3840 x 2160
Panel typeLED
Brightness350 cd/m²
Contrast1300:1
Viewing angle178°/178° (H/V)
HDRHLG, ST 2084 300/1000/10000
Supported log formatsSLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
Look up table support3D LUT (.cube format)

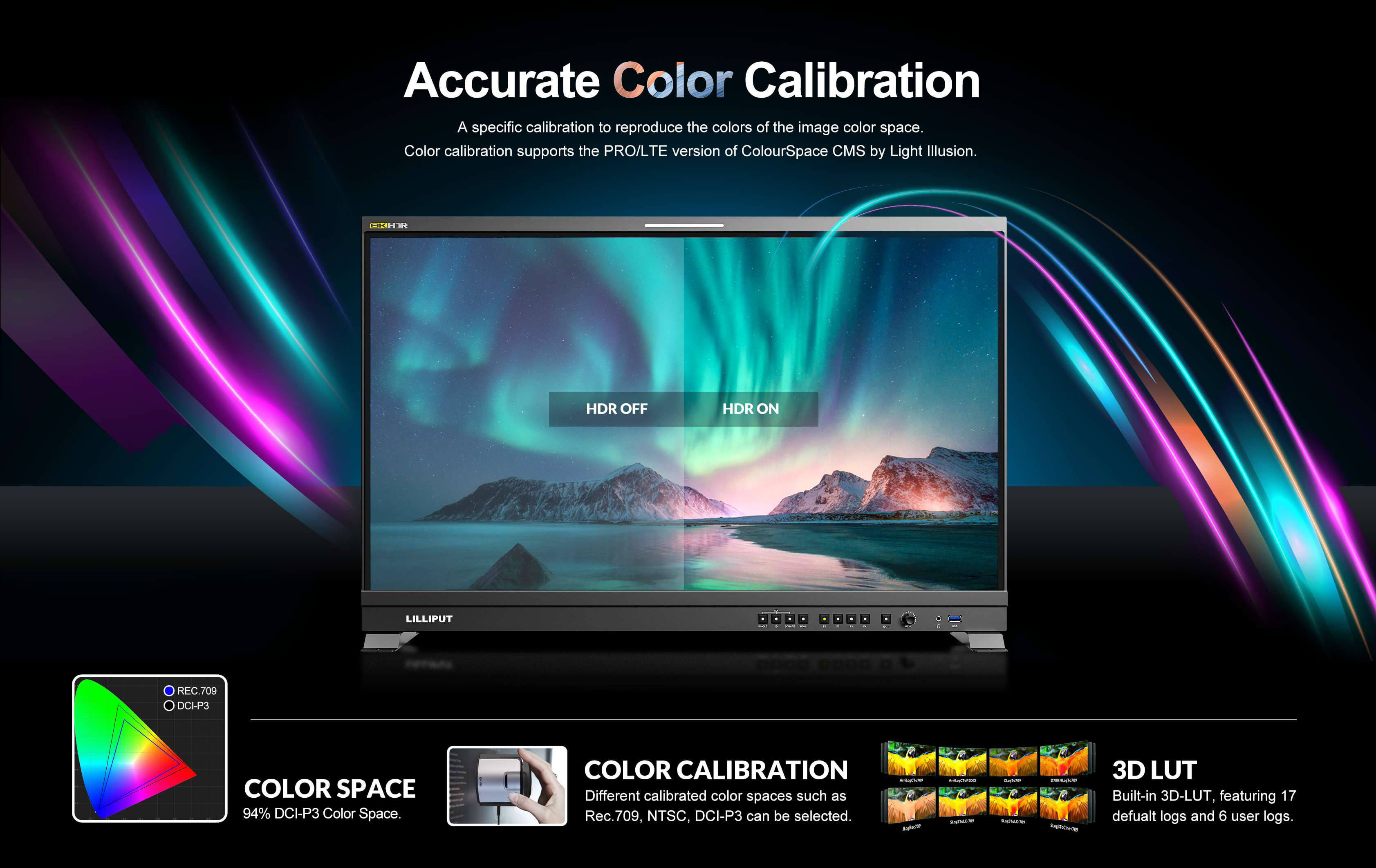

Colour spaceCalibration to Rec.709 (optional calibration unit)

Connections

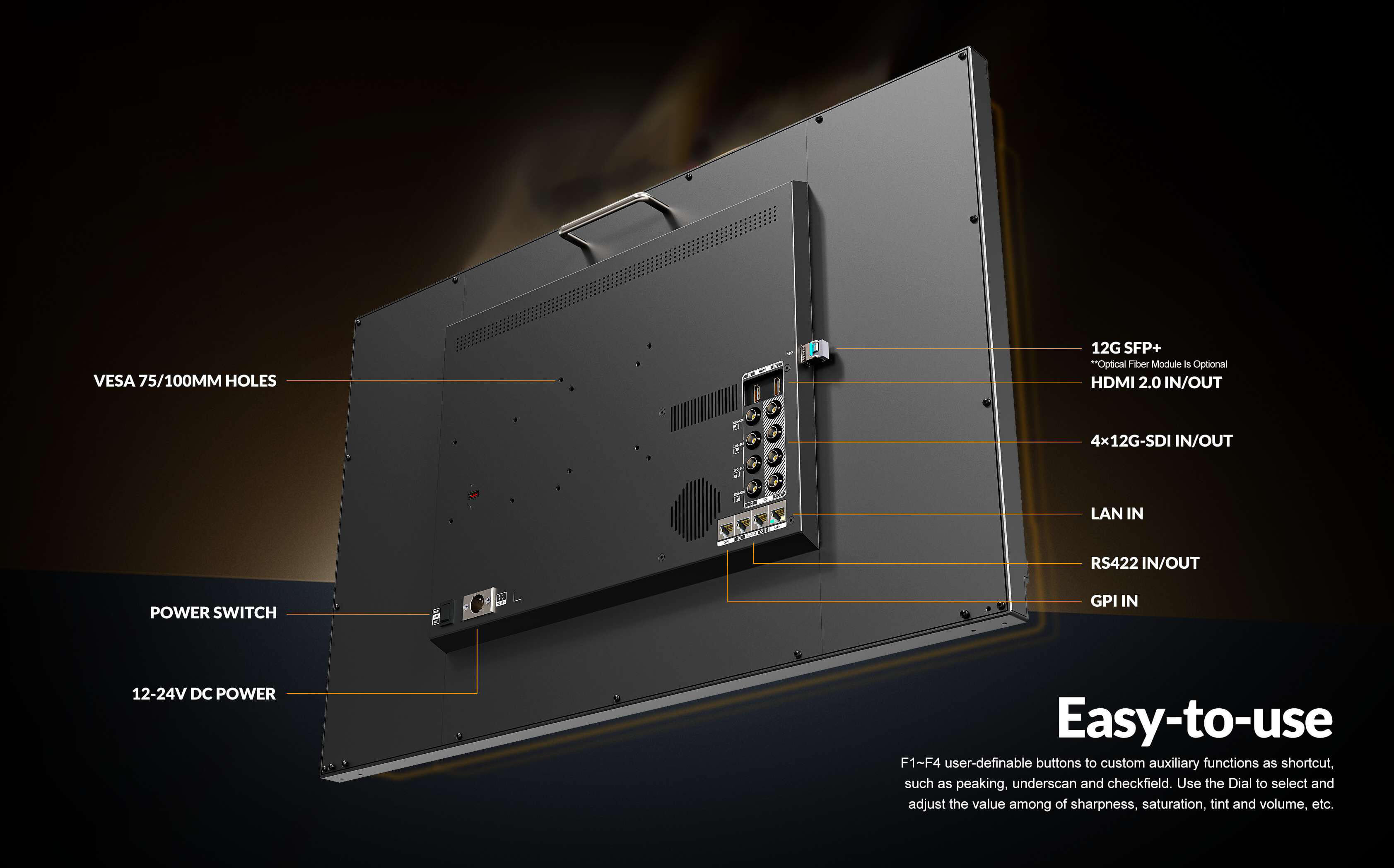

Video inputs4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0
Video outputs4x 12G-SDI, 1x HDMI 2.0
Audio3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2

Video Standards

3G-SDI4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
SFP2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60

Scopes

Video analysisWaveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom
Audio analysisAudio vector, Level meter

Operational Features

Remote controlGPI, LAN, RS422 In/Out

Power

Input voltageDC 12 to 24V
Power consumption≤65 W (15V)
Compatible batteriesV-Lock or Anton Bauer mount
Input voltage (battery)14.8V nominal

Environmental

Operating temperature0°C to 50°C
Storage temperature-20°C to 60°C

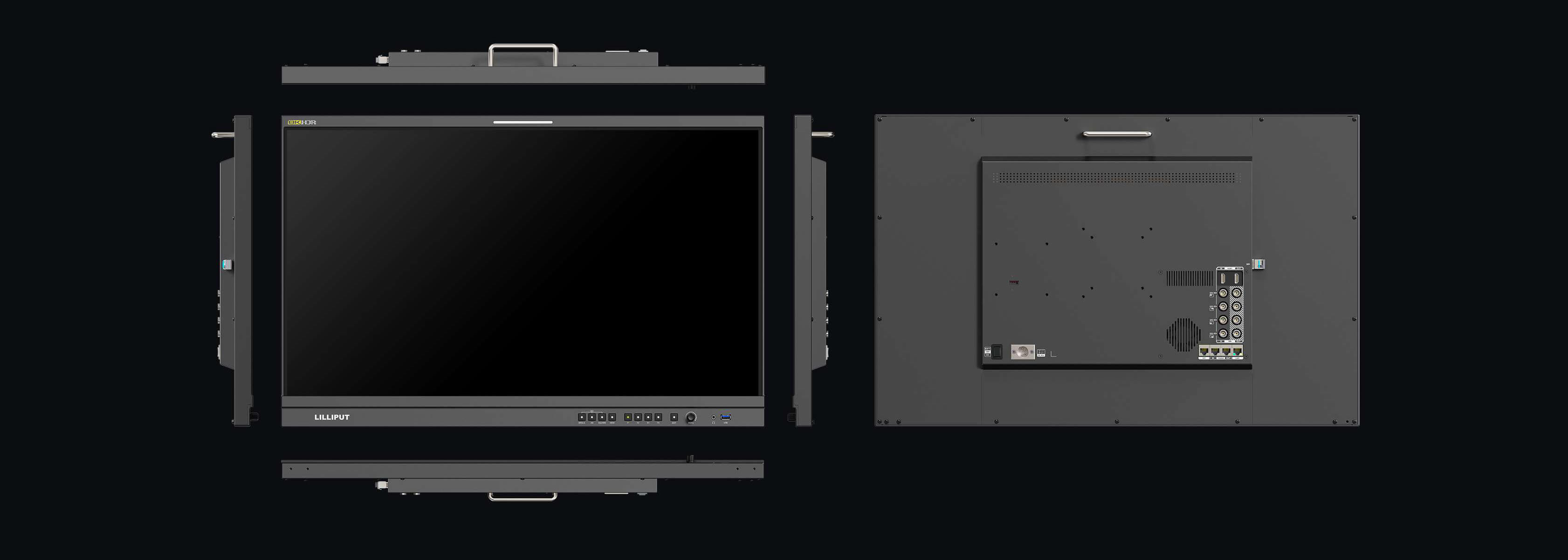

Mechanical

Dimensions717.5 x 461.7 x 47.4 mm
Weight13.0 kg

Mounting

VESA mountVESA 75 and 100 (plate included)
Base bracketsBase brackets included

Accessories

Included

  • 15V DC Adapter
  • VESA Mount Plate
  • Battery Plate (V-mount or Anton Bauer)
  • Base Bracket
  • USB Flash Disk

Optional

  • SFP Optical Fiber Module

Product Downloads

Similar Products

Compare key technical data across similar products.

Technical Data Q31-8K UQ31 Q13-8K Q15-8K Q18-8K Q23-8K Q28-8K Q43-8K
Display
Screen size 31.5 inch 31.5 inch 13.3 inch 15.6 inch 17.3 inch 23.8 inch 28 inch 43 inch
Native resolution 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160
Aspect ratio 16:9 16:9 16:9 16:9 16:9 16:9 16:9 16:9
Brightness 350 cd/m² 1000 cd/m² 300 cd/m² 600 cd/m² 400 cd/m² 300 cd/m² 300 cd/m² 400 cd/m²
Colour space Calibration to Rec.709 (optional calibration unit) Calibration to Rec.709, DCI-P3, NTSC, BT.2020 Calibration to Rec.709 (optional calibration unit) Calibration to Rec.709 (optional calibration unit) Calibration to Rec.709 (optional calibration unit) Calibration to Rec.709 (optional calibration unit) Calibration to Rec.709 (optional calibration unit) Calibration to Rec.709 (optional calibration unit)
Contrast 1300:1 1000:1 1000:1 1700:1 1200:1 1000:1 1000:1 1200:1
HDR HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000
Look up table support 3D LUT (.cube format) 3D LUT (.cube format) 3D LUT (.cube format) 3D LUT (.cube format) 3D LUT (.cube format) 3D LUT (.cube format) 3D LUT (.cube format) 3D LUT (.cube format)
Panel type LED LED LED LED LED LED LED LED
Supported log formats SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
Viewing angle 178°/178° (H/V) 178°/178° (H/V) 178°/178° (H/V) 170°/170° (H/V) 170°/170° (H/V) 178°/178° (H/V) 178°/178° (H/V) 178°/178° (H/V)
Connections
Video inputs 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.1 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0
Video outputs 4x 12G-SDI, 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.1 4x 12G-SDI, 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.0
Audio 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2
Video Standards
3G-SDI 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
SFP 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
Mounting
Base brackets Base brackets included Base brackets included Base brackets included Base brackets included Base brackets included Base brackets included Base brackets included Base brackets included
Gimbal bracket — — Optional — — — — —
Rack mount — — 19 inch rack mount brackets (optional) 19 inch rack mount brackets (optional) 19 inch rack mount brackets (optional) 19 inch rack mount brackets (optional) 19 inch rack mount brackets (optional) —
VESA mount VESA 75 and 100 (plate included) VESA mount plate included VESA 75 and 100 (plate included) VESA 75 and 100 (plate included) VESA 75 and 100 (plate included) VESA 75 and 100 (plate included) VESA 75 and 100 (plate included) —
Wall mount — — — — — — — 400 x 400 mm (M6/30 mm screws)
Power
Compatible batteries V-Lock or Anton Bauer mount — V-Lock or Anton Bauer mount V-Lock or Anton Bauer mount V-Lock or Anton Bauer mount V-Lock or Anton Bauer mount V-Lock or Anton Bauer mount —
Input voltage DC 12 to 24V DC 15-32V DC 12 to 24V DC 12 to 24V DC 12 to 24V DC 12 to 24V DC 12 to 24V DC 24V
Input voltage (battery) 14.8V nominal — 14.8V nominal 14.8V nominal 14.8V nominal 14.8V nominal 14.8V nominal —
Power consumption ≤65 W (15V) ≤94 W (at 24V) ≤36 W (15V) ≤37 W (15V) ≤40 W (15V) ≤60 W (15V) ≤65 W (15V) ≤77 W (at 24V)
Mechanical
Dimensions 717.5 x 461.7 x 47.4 mm 747 x 475.1 x 55 mm 340 x 232.8 x 46 mm 393 x 267 x 41.4 mm 433.9 x 294.2 x 45.7 mm 567 x 376.4 x 45.7 mm 638 x 414.3 x 45.7 mm 968.5 x 604.9 x 48.5 mm
Weight 13.0 kg 12.5 kg 2.4 kg 2.9 kg 3.9 kg 7.4 kg 8.6 kg 14.5 kg
Other
Included 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk 24V 7.5A Power Adapter, Base Brackets, USB Flash Disk, V-Mount / AB Battery Plate, VESA Mount Plate, D-Tap to XLR Connector 15V DC Adapter, VESA Mount Plate, Base Bracket, Battery Plate (V-Lock or Anton Bauer), USB Flash Disk 15V DC Adapter, VESA Mount Plate, Base Bracket, Battery Plate (V-Lock or Anton Bauer), USB Flash Disk 15V DC Adapter, VESA Mount Plate, Base Bracket, Battery Plate (V-Lock or Anton Bauer), USB Flash Disk 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk 24V 7.5A DC Adapter, Base Brackets, USB Flash Disk
Optional SFP Optical Fiber Module SFP Optical Fiber SFP Optical Fiber Module, Gimbal bracket, Rack Mount Bracket SFP Optical Fiber Module, Gimbal bracket, Carrying Case + Sunshade, Rack Mount Bracket, Acrylic Screen Protector SFP Optical Fiber Module, Gimbal bracket, Carrying Case + Sunshade, Rack Mount Bracket Carrying Case, Sunshade (Carrying Case only), SFP Optical Fiber Module Carrying Case, Sunshade (Carrying Case only), SFP Optical Fiber Module SFP Optical Fiber Module
Operational Features
Function buttons — — — — — — — F1 to F4 user-definable (peaking, underscan, checkfield)
Menu control — — — — — — — Built-in dial
Remote control GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out

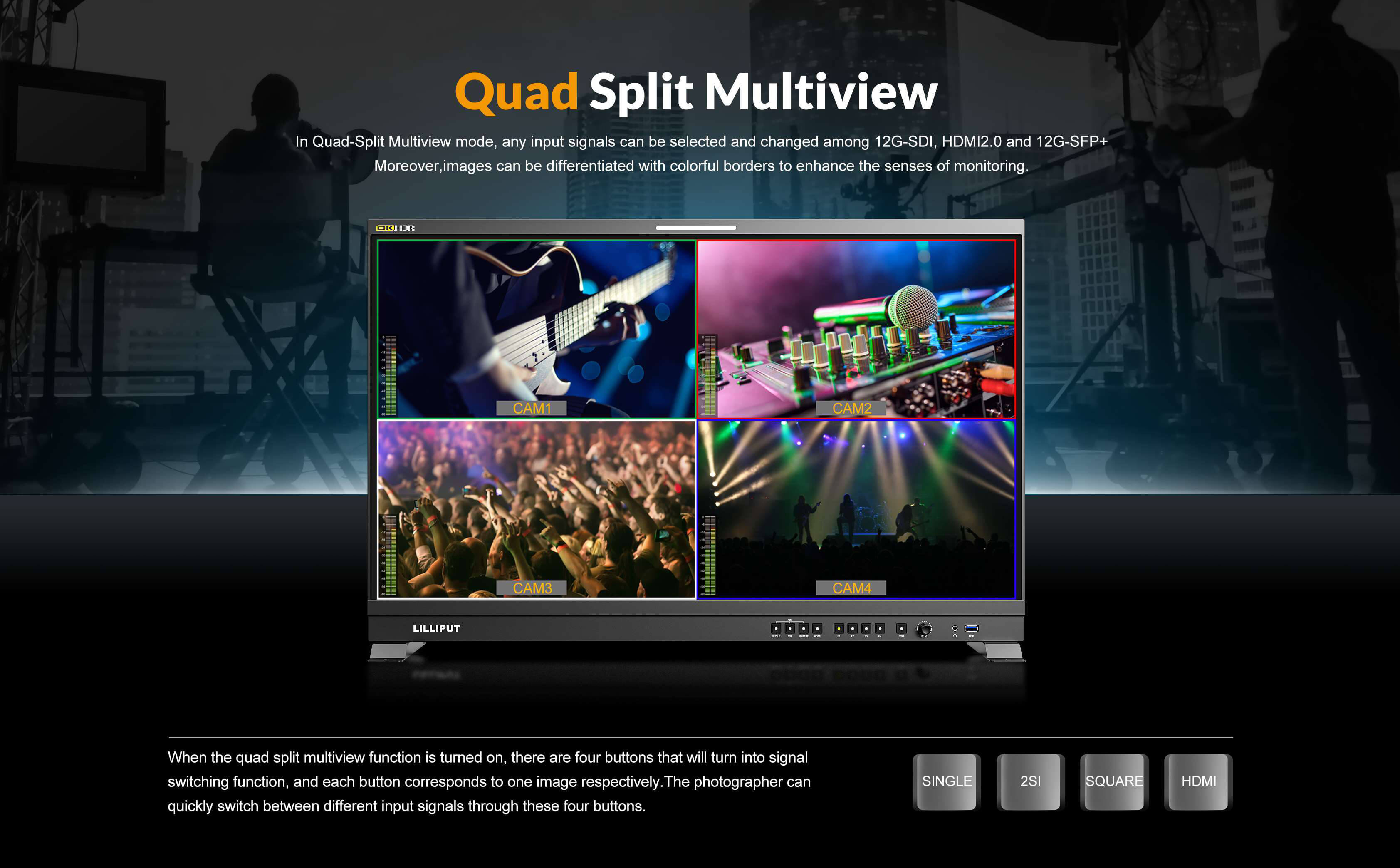

View modes — Quad-split multiview, SDI1 to 4, SFP, HDMI — — — — — Quad-split multiview, 12G-SDI, HDMI 2.0, 12G SFP+
Environmental
Operating temperature 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C
Storage temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C
Scopes
Audio analysis Audio vector, Level meter Audio vector, Level meter Audio vector, Level meter Audio vector, Level meter Audio vector, Level meter Audio vector, Level meter Audio vector, Level meter Audio vector, Level meter
Video analysis Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vectorscope, False colour, Histogram, Exposure, Focus peaking, Check field, Colour bar, Pixel zoom, Pixel-to-pixel, Marker, Freeze, H/V delay
