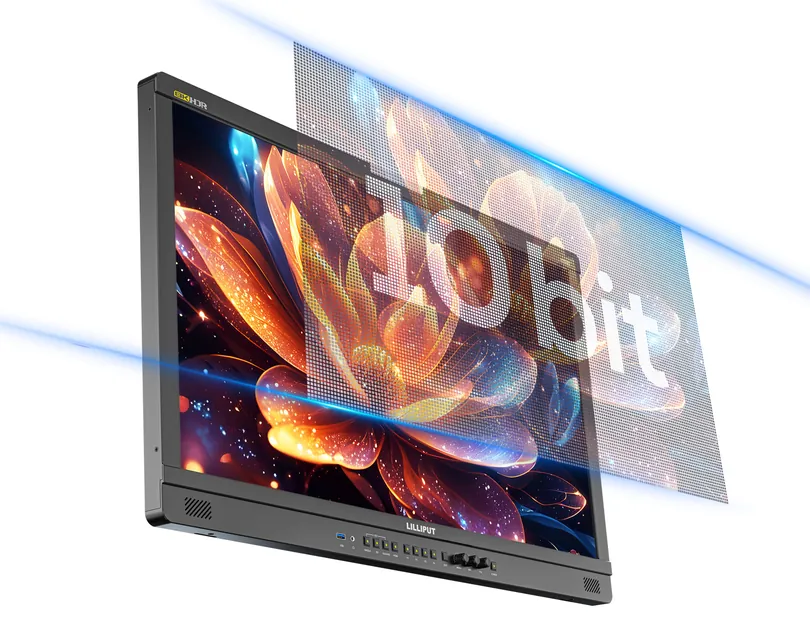

UQ31 UQ31 UQ31 UQ31 UQ31 UQ31 UQ31 UQ31 UQ31 UQ31

Key Features

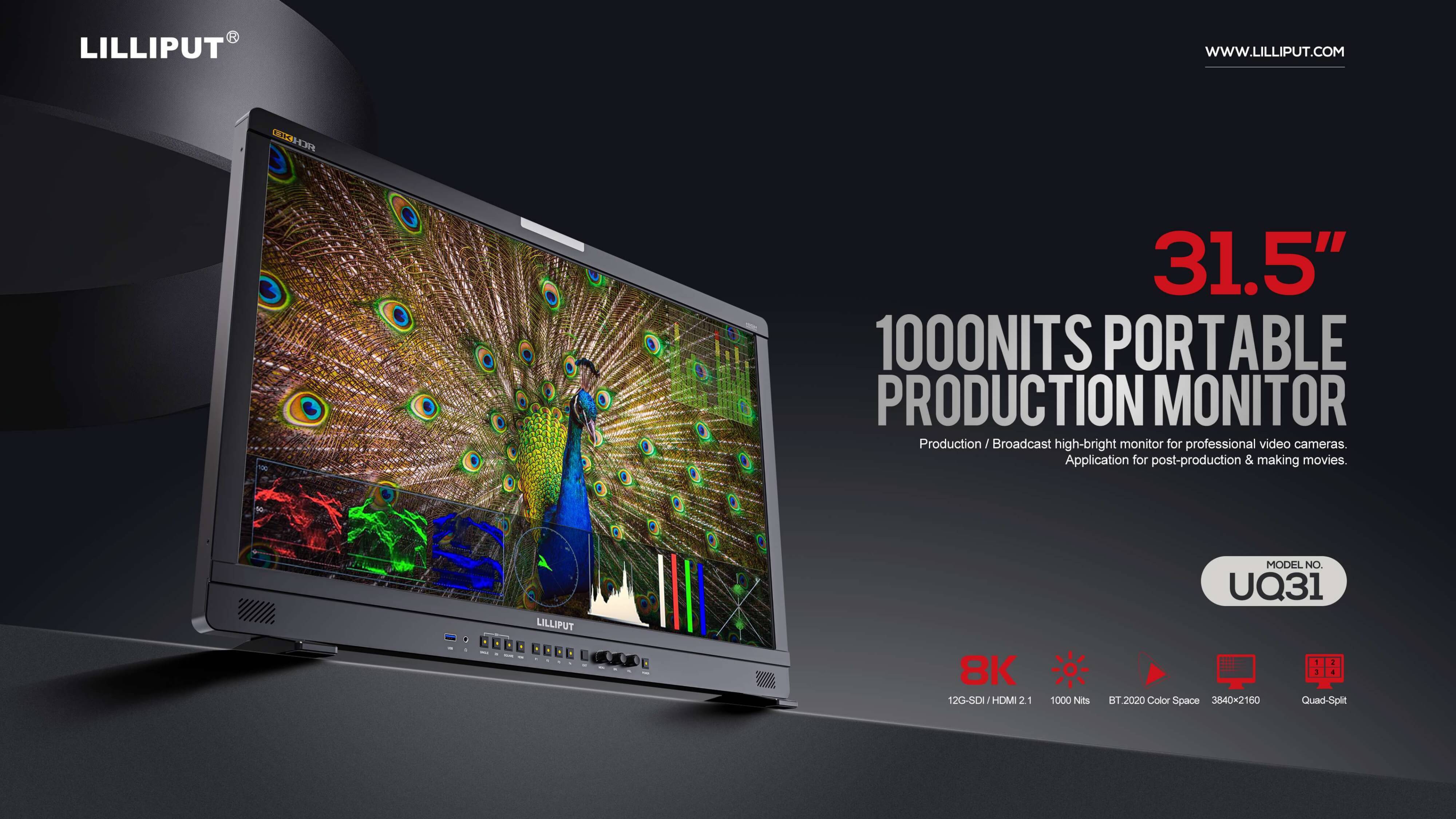

  • 31.5 inch 4K display, 1000 cd/m², 1000:1 contrast — professional brightness for outdoor use
  • 4x 12G-SDI (quad-link 8K), 1x 12G SFP+ (fiber optional), 1x HDMI 2.1
  • Up to 8K 60Hz via quad-link 12G-SDI
  • HDR: HLG, ST 2084 (300/1000/10000 cd/m²)
  • Log formats: SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined

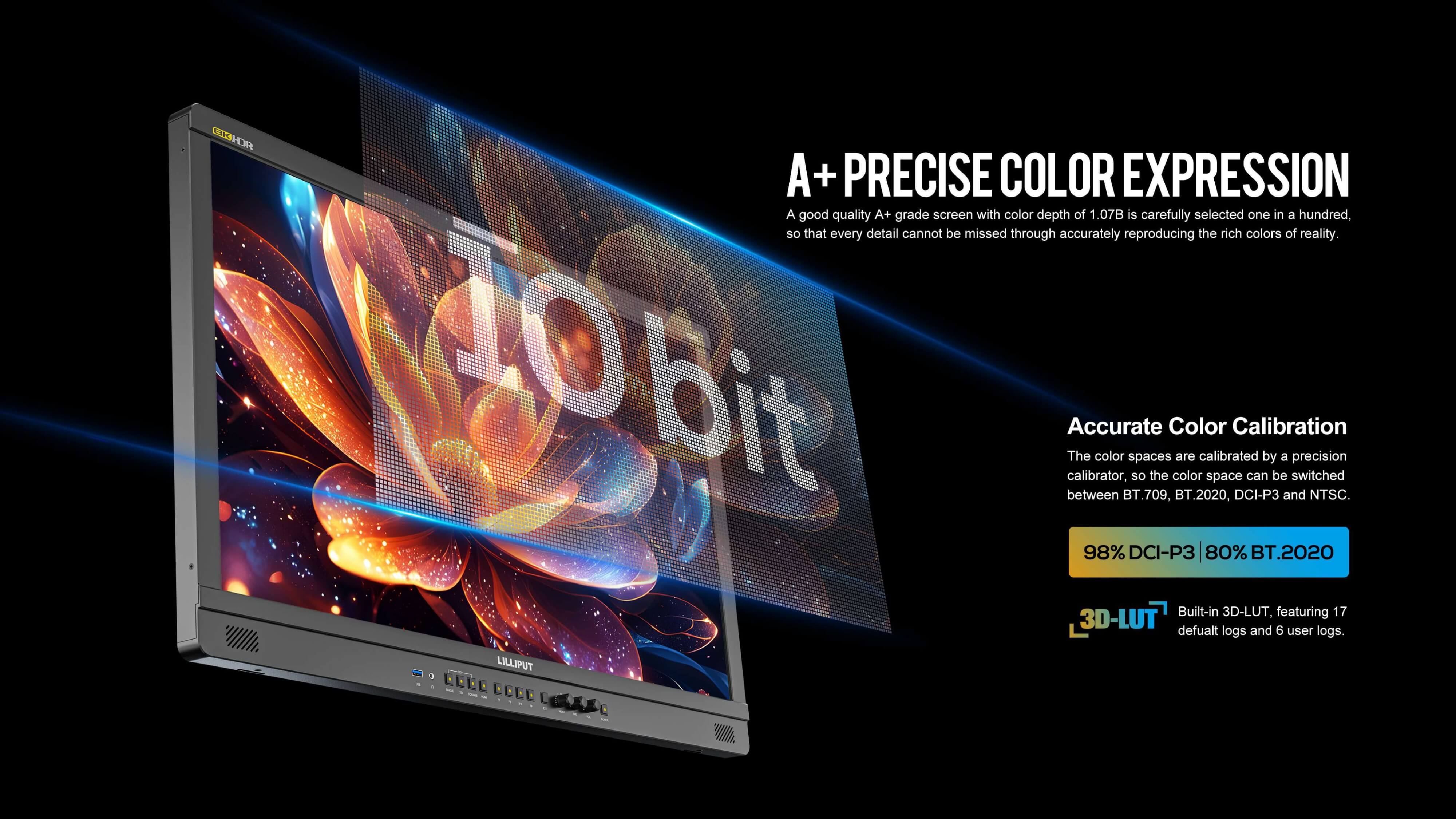

  • 3D LUT (.cube) load via USB; calibration to Rec.709, DCI-P3, NTSC, BT.2020
  • Quad-split multiview; waveform, vector, histogram, audio vector, level meter

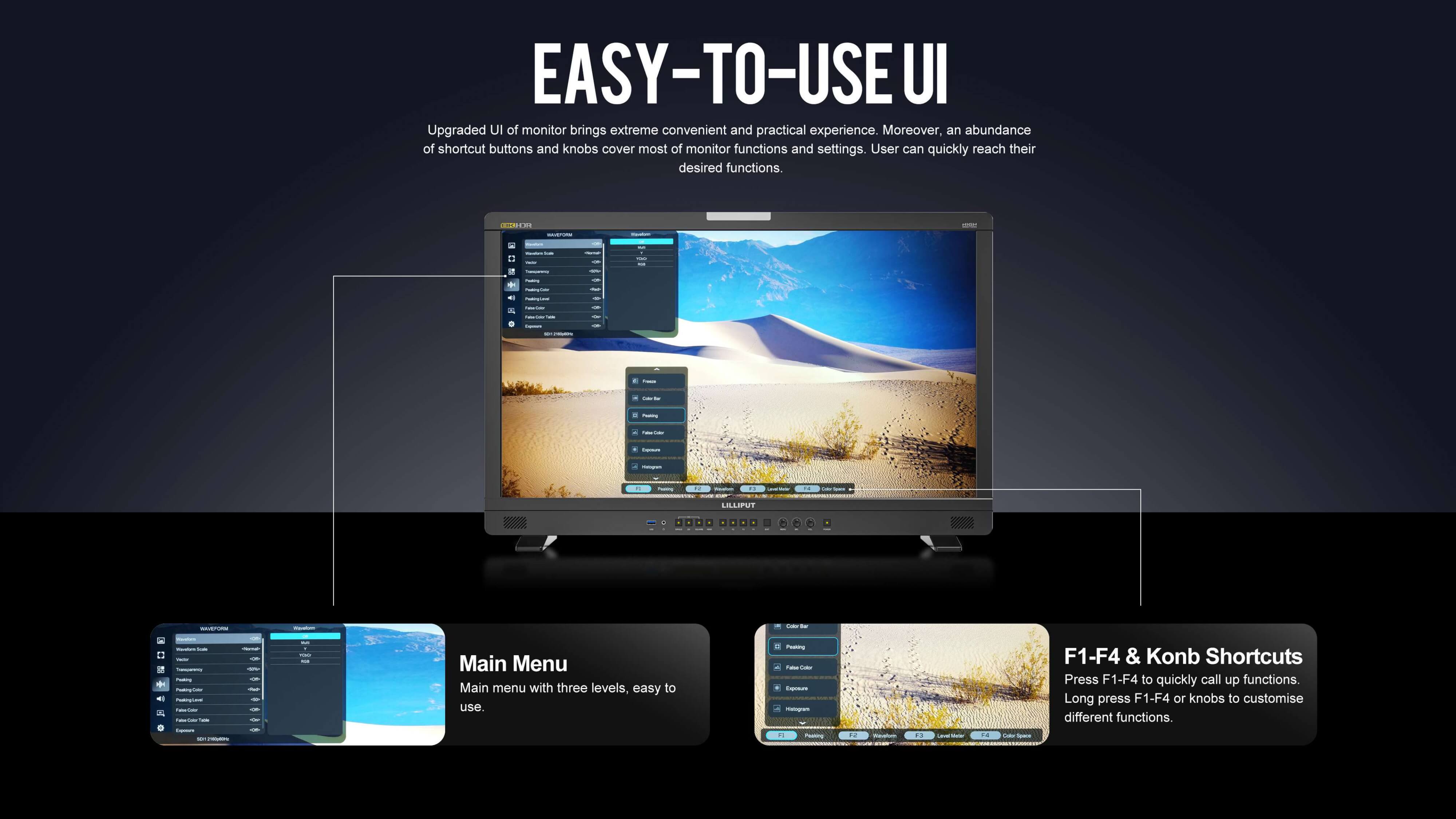

  • F1 to F4 user-definable buttons; custom Menu Knob
  • V-mount or Anton Bauer battery; GPI, LAN, RS422 remote (TSL V3.1)

Product Enquiry

Request a quote or ask a question about the UQ31. Our UK team will respond promptly.

Technical Data

Display

Screen size31.5 inch
Aspect ratio16:9
Native resolution3840 x 2160
Panel typeLED

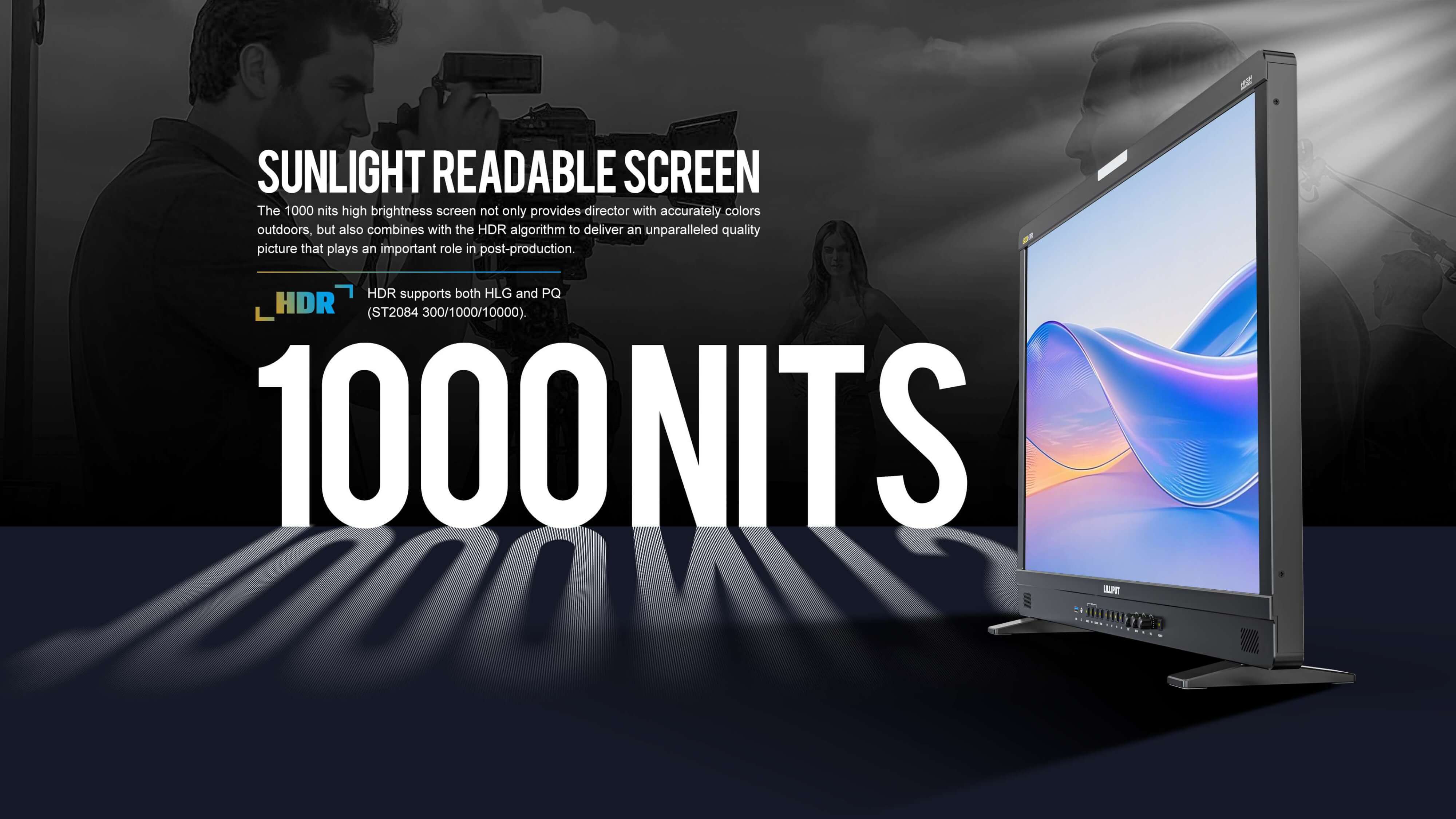

Brightness1000 cd/m²
Contrast1000:1
Viewing angle178°/178° (H/V)
HDRHLG, ST 2084 300/1000/10000
Supported log formatsSLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
Look up table support3D LUT (.cube format)
Colour spaceCalibration to Rec.709, DCI-P3, NTSC, BT.2020

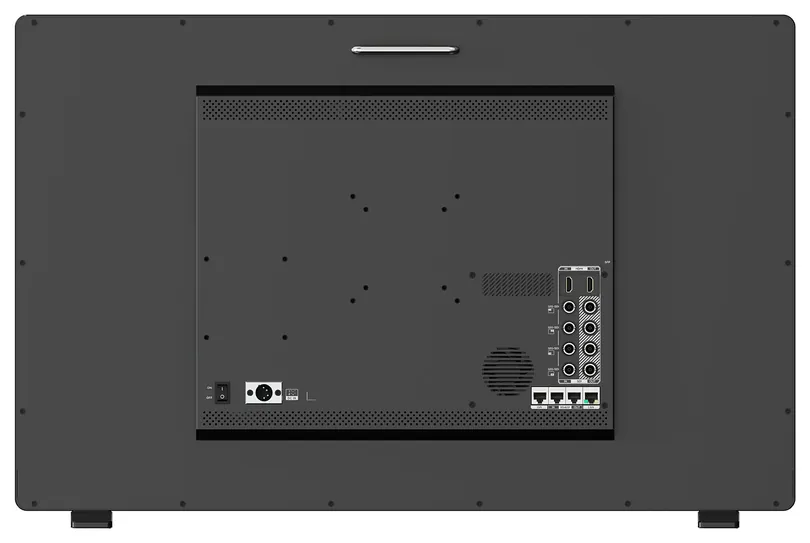

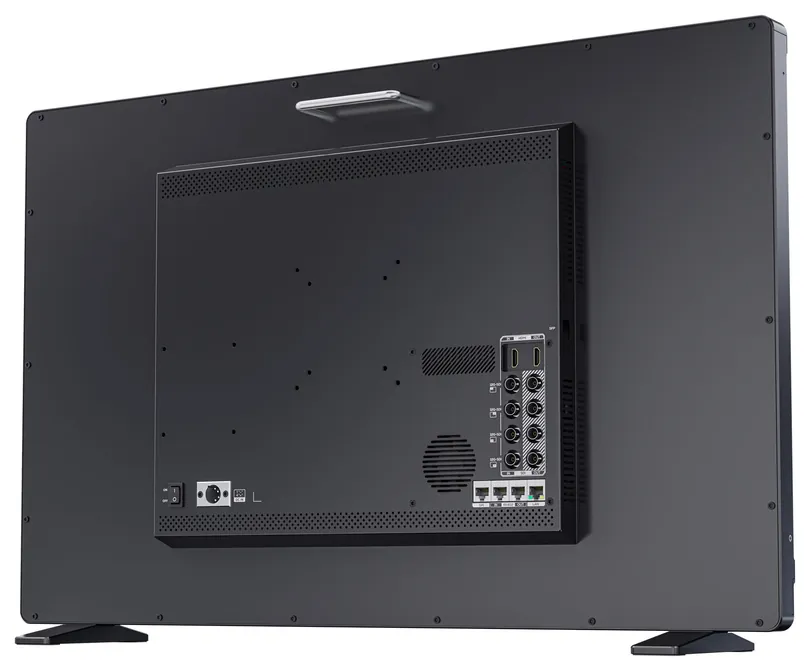

Connections

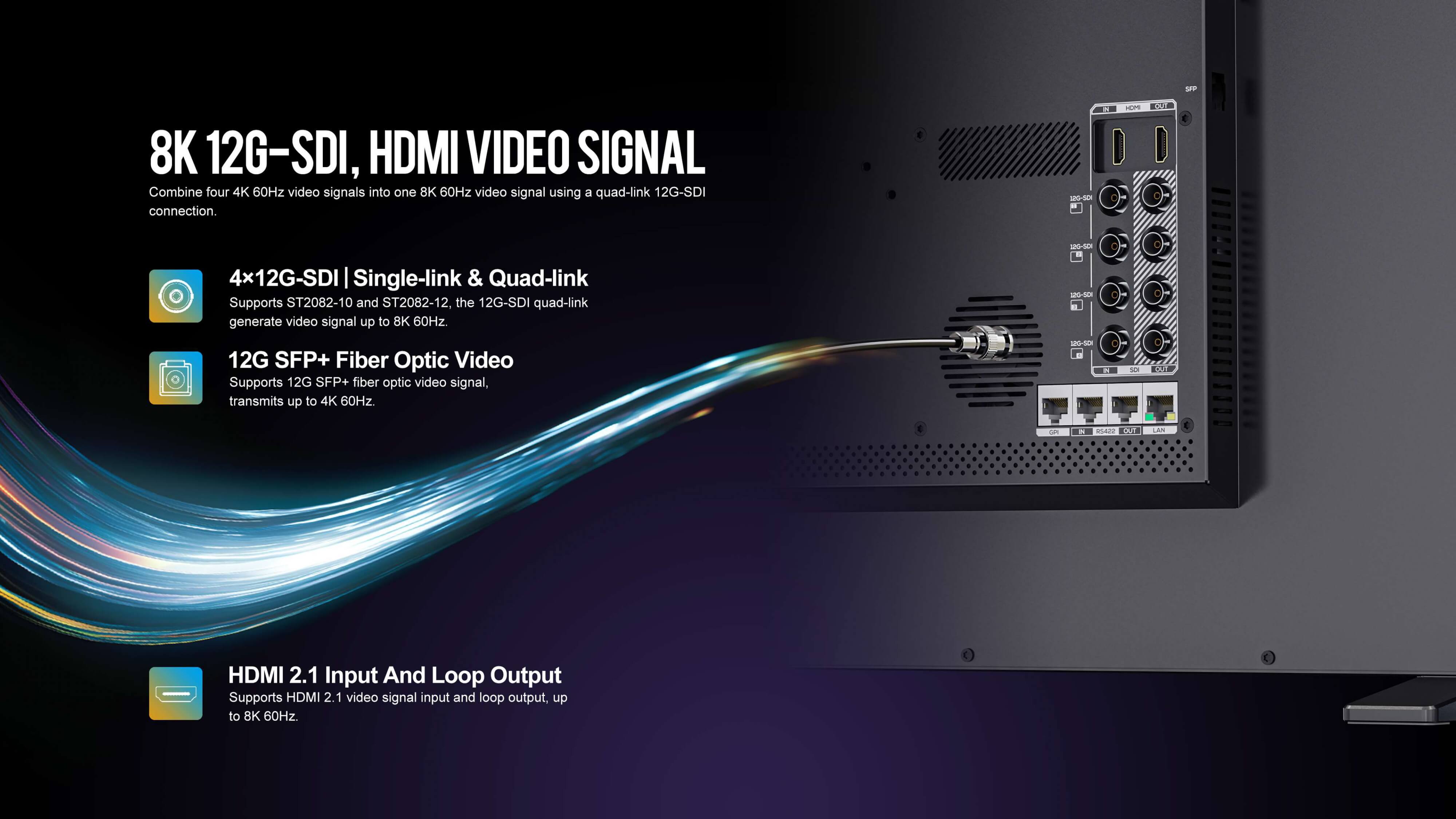

Video inputs4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.1
Video outputs4x 12G-SDI, 1x HDMI 2.1
Audio3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2

Video Standards

3G-SDI4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
SFP2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60

Scopes

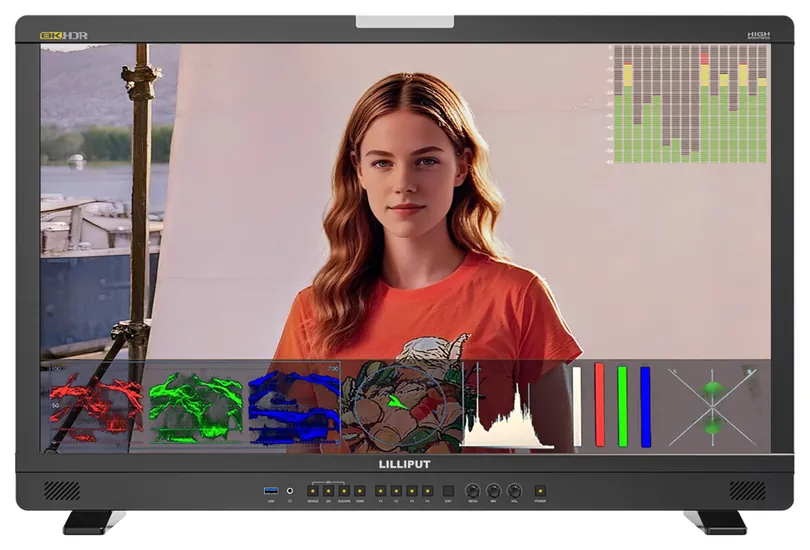

Video analysisWaveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom
Audio analysisAudio vector, Level meter

Operational Features

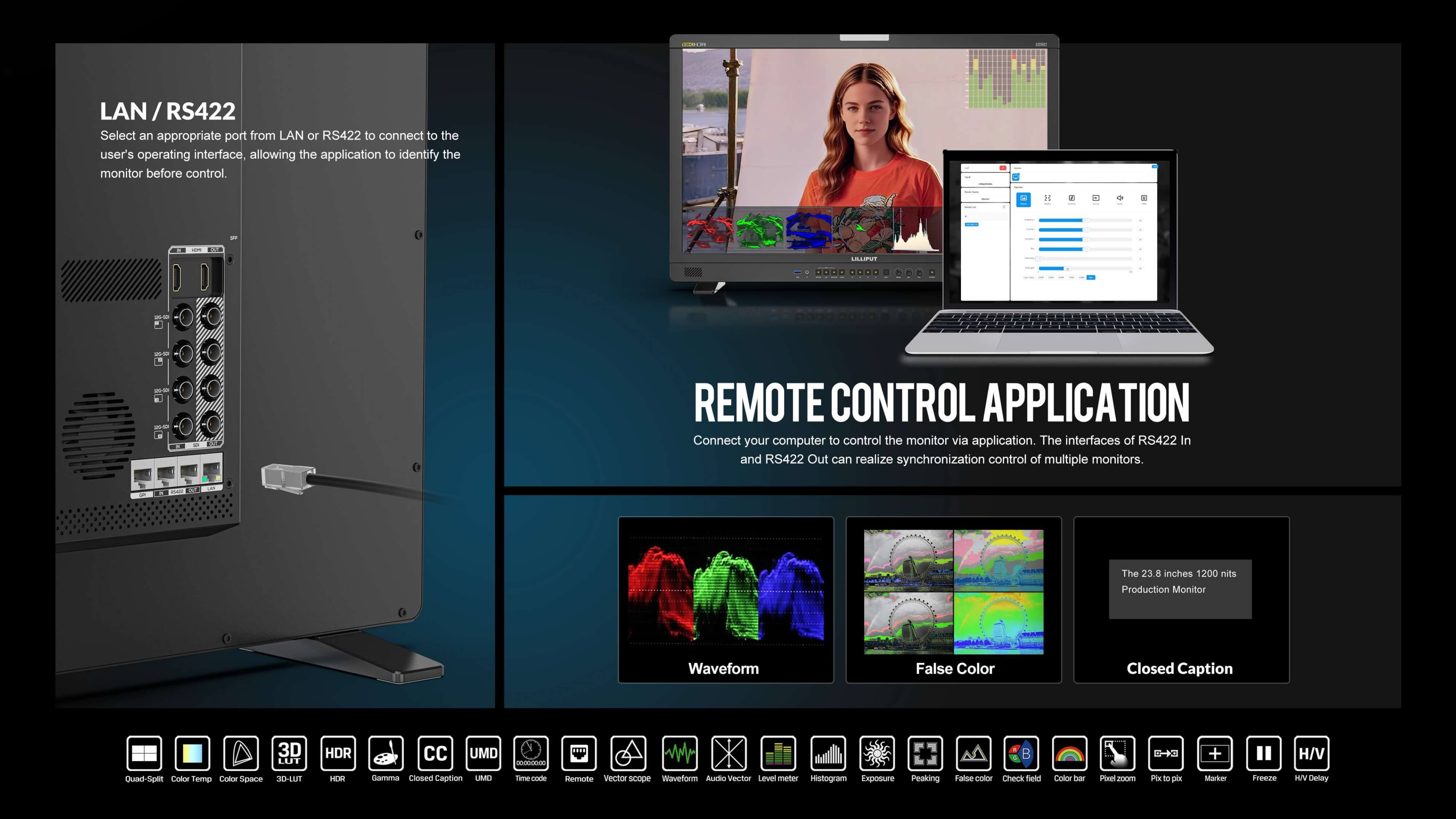

Remote controlGPI, LAN, RS422 In/Out
View modesQuad-split multiview, SDI1 to 4, SFP, HDMI

Power

Input voltageDC 15-32V
Power consumption≤94 W (at 24V)

Environmental

Operating temperature0°C to 50°C
Storage temperature-20°C to 60°C

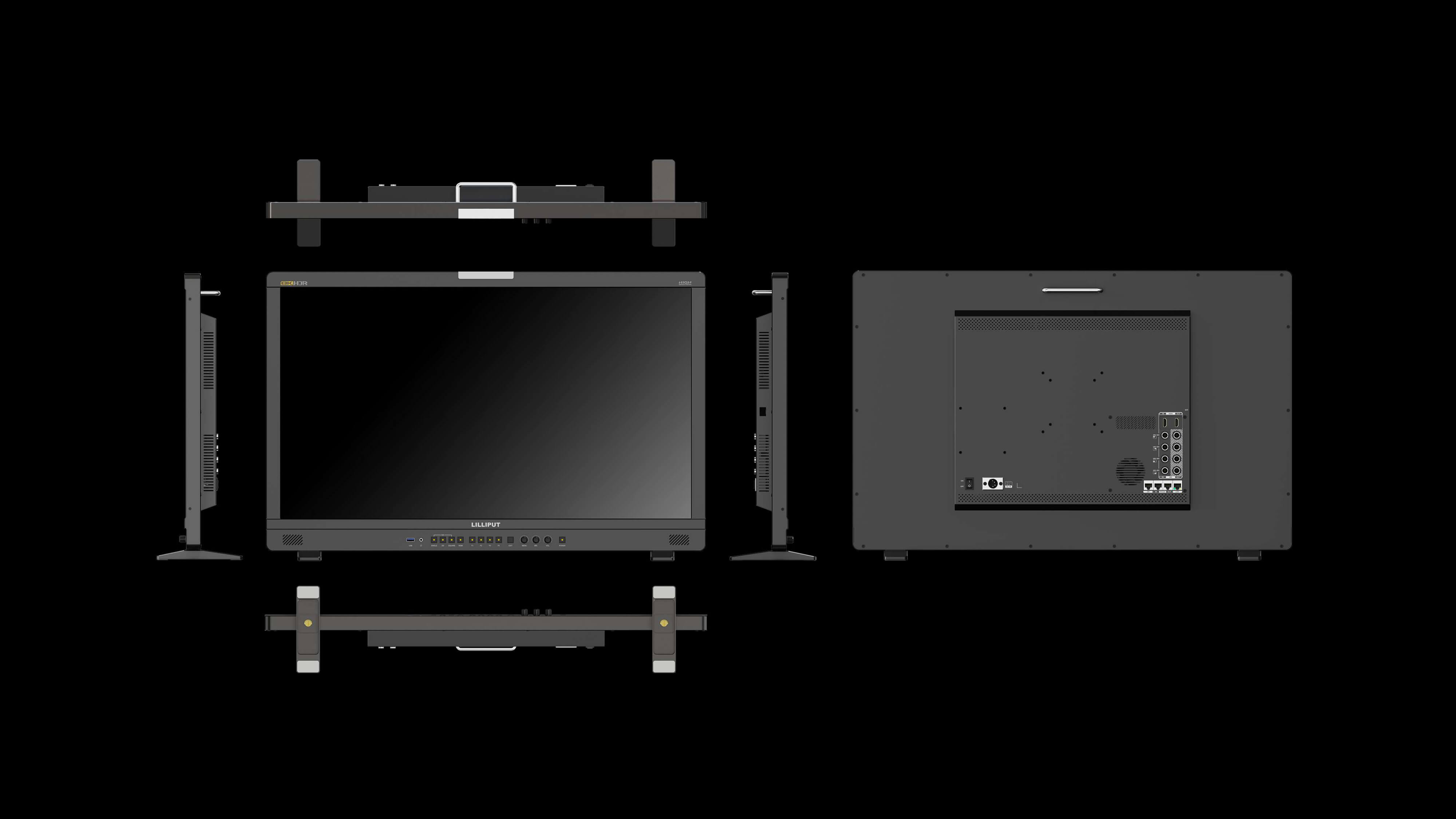

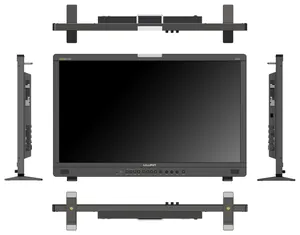

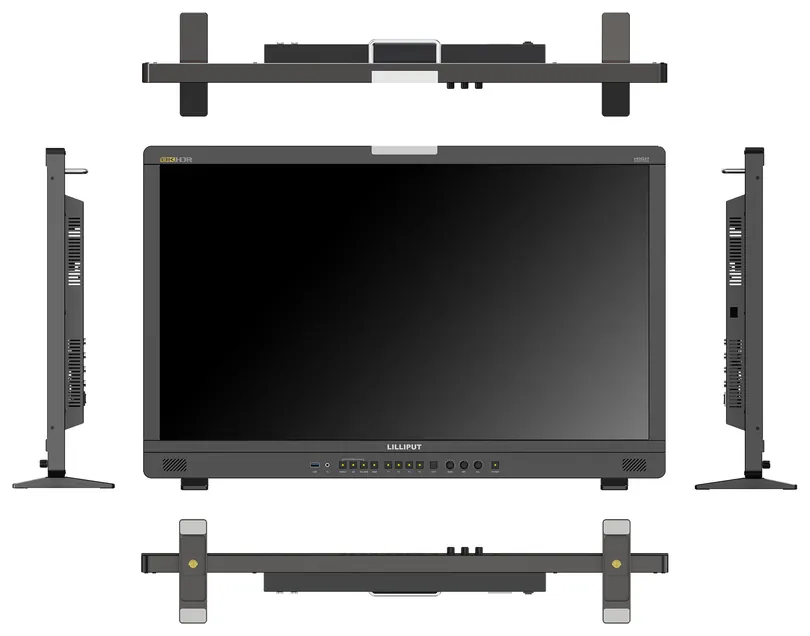

Mechanical

Dimensions747 x 475.1 x 55 mm
Weight12.5 kg

Mounting

VESA mountVESA mount plate included
Base bracketsBase brackets included

Accessories

Included

  • 24V 7.5A Power Adapter
  • Base Brackets
  • USB Flash Disk
  • V-Mount / AB Battery Plate
  • VESA Mount Plate
  • D-Tap to XLR Connector

Optional

  • SFP Optical Fiber

Product Downloads

Similar Products

Compare key technical data across similar products.

Technical Data UQ31 UQ23 Q23-8K Q28-8K Q31-8K Q43-8K
Display
Screen size 31.5 inch 23.8 inch 23.8 inch 28 inch 31.5 inch 43 inch
Native resolution 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160
Aspect ratio 16:9 16:9 16:9 16:9 16:9 16:9
Bit depth — 8+2 (FRC) display; 12-bit processing — — — —
Brightness 1000 cd/m² 1200 cd/m² 300 cd/m² 300 cd/m² 350 cd/m² 400 cd/m²
Colour space Calibration to Rec.709, DCI-P3, NTSC, BT.2020 Calibration to Rec.709, DCI-P3, NTSC, BT.2020 Calibration to Rec.709 (optional calibration unit) Calibration to Rec.709 (optional calibration unit) Calibration to Rec.709 (optional calibration unit) Calibration to Rec.709 (optional calibration unit)
Contrast 1000:1 1000:1 1000:1 1000:1 1300:1 1200:1
HDR HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000
Look up table support 3D LUT (.cube format) 3D LUT (.cube format) 3D LUT (.cube format) 3D LUT (.cube format) 3D LUT (.cube format) 3D LUT (.cube format)
Panel type LED LED LED LED LED LED
Supported log formats SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
Viewing angle 178°/178° (H/V) 178°/178° (H/V) 178°/178° (H/V) 178°/178° (H/V) 178°/178° (H/V) 178°/178° (H/V)
Connections
Video inputs 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.1 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.1 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0
Video outputs 4x 12G-SDI, 1x HDMI 2.1 4x 12G-SDI, 1x HDMI 2.1 4x 12G-SDI, 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.0
Audio 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, Built-in speakers x 2
Video Standards
3G-SDI 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
SFP 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
Mounting
Base brackets Base brackets included Base brackets included Base brackets included Base brackets included Base brackets included Base brackets included
Rack mount — — 19 inch rack mount brackets (optional) 19 inch rack mount brackets (optional) — —
VESA mount VESA mount plate included VESA mount plate included VESA 75 and 100 (plate included) VESA 75 and 100 (plate included) VESA 75 and 100 (plate included) —
Wall mount — — — — — 400 x 400 mm (M6/30 mm screws)
Operational Features
Aspect markers — 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User — — — —
Colour temperature — 3200K, 5500K, 6500K, 7500K, 9300K, User — — — —
Comparison — Colour space, HDR, Gamma, Camera Log (side-by-side with original) — — — —
Function buttons — F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) — — — F1 to F4 user-definable (peaking, underscan, checkfield)
Gamma — 1.8 to 2.8 — — — —
Menu control — Custom Menu Knob (brightness, contrast, volume, peaking, etc.) — — — Built-in dial
Peaking — Red, Green, Blue, White, Black — — — —
Remote control GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out
Tally — Red, Green, Yellow — — — —
Time code — LTC, VITC — — — —
UMD — User-defined text (7 colours) — — — —
View modes Quad-split multiview, SDI1 to 4, SFP, HDMI Quad-split multiview, SDI1 to 4, SFP, HDMI — — — Quad-split multiview, 12G-SDI, HDMI 2.0, 12G SFP+
Power
Compatible batteries — — V-Lock or Anton Bauer mount V-Lock or Anton Bauer mount V-Lock or Anton Bauer mount —
Input voltage DC 15-32V DC 15-24V DC 12 to 24V DC 12 to 24V DC 12 to 24V DC 24V
Input voltage (battery) — — 14.8V nominal 14.8V nominal 14.8V nominal —
Power consumption ≤94 W (at 24V) ≤90 W (at 19V) ≤60 W (15V) ≤65 W (15V) ≤65 W (15V) ≤77 W (at 24V)
Mechanical
Dimensions 747 x 475.1 x 55 mm 576.6 x 375.5 x 53.5 mm (device only) 567 x 376.4 x 45.7 mm 638 x 414.3 x 45.7 mm 717.5 x 461.7 x 47.4 mm 968.5 x 604.9 x 48.5 mm
Weight 12.5 kg 7.7 kg (device only) 7.4 kg 8.6 kg 13.0 kg 14.5 kg
Other
Included 24V 7.5A Power Adapter, Base Brackets, USB Flash Disk, V-Mount / AB Battery Plate, VESA Mount Plate, D-Tap to XLR Connector 19V 6A Power Adapter, Base Brackets, USB Flash Disk, V-Mount / AB Battery Plate, VESA Mount Plate, D-Tap to XLR Connector 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk 24V 7.5A DC Adapter, Base Brackets, USB Flash Disk
Optional SFP Optical Fiber SFP Optical Fiber, Suitcase & Sunshade Carrying Case, Sunshade (Carrying Case only), SFP Optical Fiber Module Carrying Case, Sunshade (Carrying Case only), SFP Optical Fiber Module SFP Optical Fiber Module SFP Optical Fiber Module
Environmental
Operating temperature 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C
Storage temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C
Scopes
Audio analysis Audio vector, Level meter Audio vector, Level meter Audio vector, Level meter Audio vector, Level meter Audio vector, Level meter Audio vector, Level meter
Video analysis Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vectorscope, False colour, Histogram, Exposure, Focus peaking, Check field, Colour bar, Pixel zoom, Pixel-to-pixel, Marker, Freeze, H/V delay
