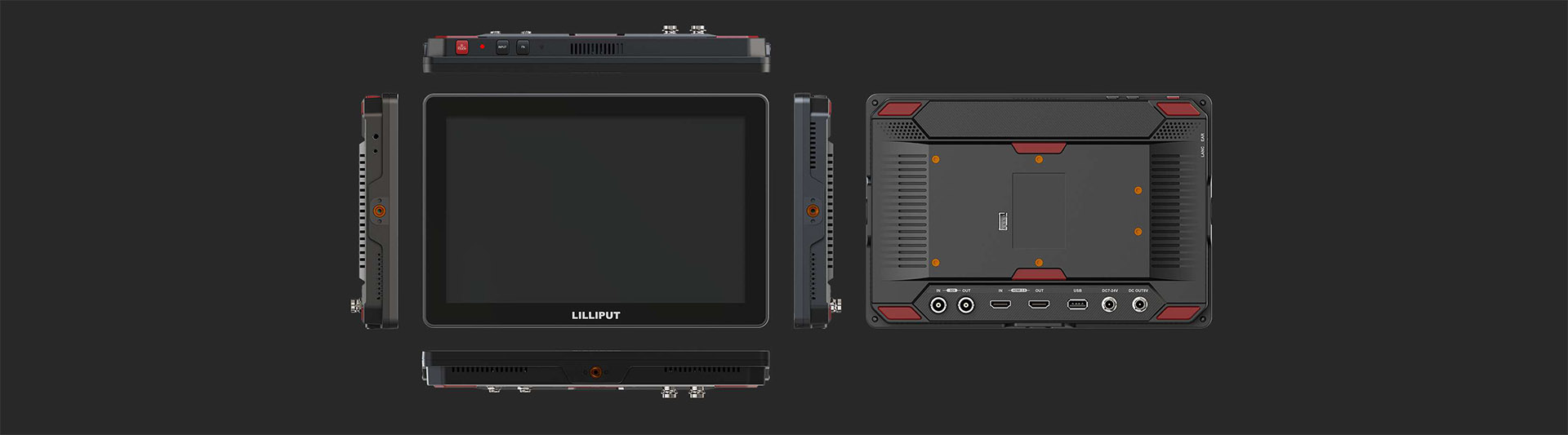

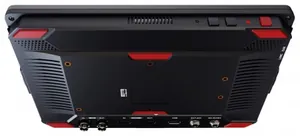

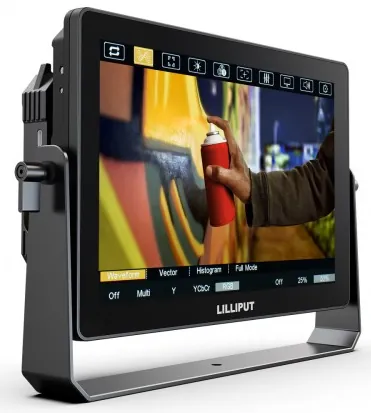

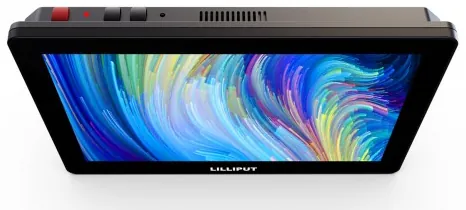

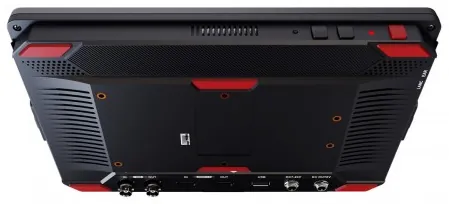

HT10S, product overview HT10S, view 2 HT10S, view 3 HT10S, view 4 HT10S, view 5 HT10S, view 6

Key Features

  • 10.1 inch 1920 x 1200 LCD display, 1500 cd/m², 1000:1 contrast, 125% BT.709 / 92.5% DCI-P3, 16:10 aspect ratio
  • Capacitive touch screen, menu control via touch gestures; shortcut swipes for backlight, volume, zoom

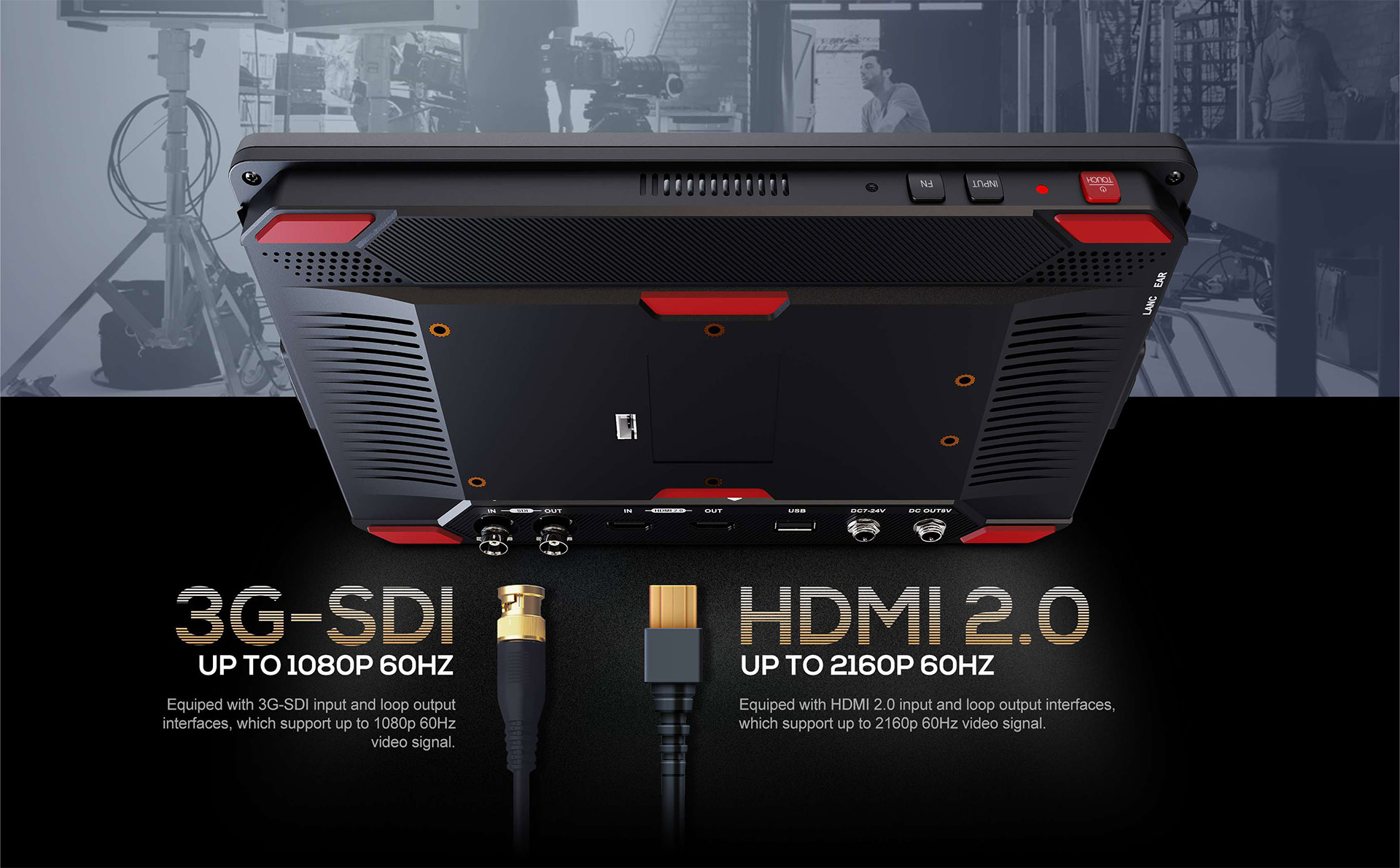

  • 1x 3G-SDI and 1x HDMI 2.0 input/output, 4K 60Hz support
  • HDR ST 2084 (300/1000/10000 cd/m²) and HLG; 3D LUT (.cube); 17 default camera logs plus 6 user LUTs
  • LANC port for Sony camera control; FN user-definable function button; 50,000 h LED lifetime
  • 850 g; 251 x 170 x 26.5 mm; shoe mount 1/4 inch; VESA mount; NP-F (F970) and V-Lock battery compatible

Product Enquiry

Request a quote or ask a question about the HT10S. Our UK team will respond promptly.

Technical Data

Display

Screen size10.1 inch
Aspect ratio16:10
Native resolution1920 x 1200
Panel typeLCD
Brightness1500 cd/m²
Contrast1000:1
Viewing angle170°/170° (H/V)
Colour space125% BT.709 / 92.5% DCI-P3
HDRST 2084 300/1000/10000 cd/m², HLG
Touch screenCapacitive touch
LED lifetime50,000 h

Connections

Video inputs1x 3G-SDI, 1x HDMI 2.0
Video outputs1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz)
Audio1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit), HDMI 8ch 24-bit

Video Standards

3G-SDI1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 2.02160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60

Scopes

Video analysisWaveform (Multi, Y, YCbCr, RGB), Vector, Peaking, False colour, Exposure, Histogram
Audio analysisLevel meter

Operational Features

Touch gesturesCentre swipe: menu; left/right swipe: backlight/volume; two-finger zoom
Camera controlLANC (Sony S-Lanc compatible)

Power

Input voltageDC 7 to 24V
Power consumption≤23 W (12V)

Environmental

Operating temperature0°C to 50°C
Storage temperature-20°C to 60°C

Mechanical

Dimensions251 x 170 x 26.5 mm
Weight850 g

Mounting

Shoe mount3x 1/4 inch BSW
VESA mount4x screw mounts

Accessories

Included

  • 0.8 m HDMI A-D cable
  • LANC cable
  • Hot shoe mount
  • USB drive disk
  • Sunshade

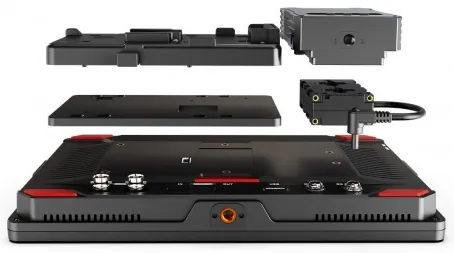

  • F970 battery plate

Optional

  • Battery plate adapter (with cable)
  • Gimbal bracket

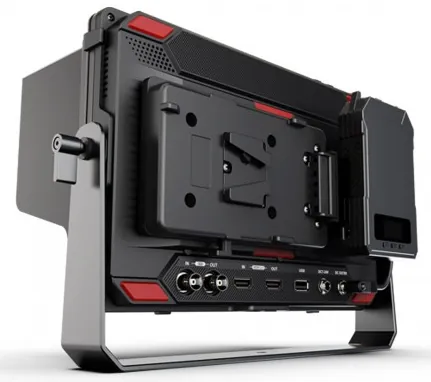

  • V-Lock battery plate + VESA adapter plate
  • 12V 3A DC power adapter

Product Downloads

Similar Products

Compare key technical data across similar products.

Technical Data HT10S Q10 A11 HT7S H7S HT5S Q7-12G
Display
Screen size 10.1 inch 10.1 inch 10.1 inch 7 inch 7 inch 5.5 inch 7 inch
Native resolution 1920 x 1200 1920 x 1200 1920 x 1200 1920 x 1200 1920 x 1200 1920 x 1080 1920 x 1200
Aspect ratio 16:10 16:10 16:10 16:10 16:10 16:9 16:10
Brightness 1500 cd/m² 1500 cd/m² 320 cd/m² 2000 cd/m² 1800 cd/m² 2000 cd/m² 2000 cd/m²
Colour space 125% BT.709 / 92.5% DCI-P3 — — 100% BT.709 — 100% BT.709 —
Contrast 1000:1 1000:1 1000:1 1200:1 1200:1 1000:1 1200:1
HDR ST 2084 300/1000/10000 cd/m², HLG ST 2084 300/1000/10000 cd/m², HLG — HLG, ST 2084 300, ST 2084 1000, ST 2084 10000 HLG, ST 2084 300, ST 2084 1000, ST 2084 10000 ST 2084 300/1000/10000 cd/m², HLG ST 2084 300/1000/10000 cd/m², HLG
LED lifetime 50,000 h — — — — — —
LUT support — 3D-LUT (.cube format) — 3D-LUT (.cube format, 17x17x17 or 33x33x33 BGR) 3D-LUT (.cube format, 17x17x17 BGR) — 3D-LUT (.cube format)
Panel type LCD LCD 8-bit LCD LCD LCD LCD LCD
Supported log formats — SLog2/SLog3, CLog, NLog, ArriLog, JLog or User — SLog2, SLog3, ArriLog, CLog, VLog, JLog, NLog, User (1 to 6) SLog2, SLog3, User (1 to 6) — SLog2/SLog3, CLog, NLog, ArriLog, JLog or User
Touch screen Capacitive touch — — Capacitive touch — Capacitive touch —
Viewing angle 170°/170° (H/V) 170°/170° (H/V) 175°/175° (H/V) 160°/160° (H/V) 160°/160° (H/V) 160°/160° (H/V) 170°/170° (H/V)
Connections
Video inputs 1x 3G-SDI, 1x HDMI 2.0 2x 12G-SDI, 1x HDMI 2.0, 1x Tally 1x 3G-SDI, 1x HDMI 1.4, 1x VGA 1x 3G-SDI, 1x HDMI 2.0 1x 3G-SDI, 1x HDMI 1.4 1x 3G-SDI, 1x HDMI 2.0 2x 12G-SDI, 1x HDMI 2.0, 1x Tally
Video outputs 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) 2x 12G-SDI, 1x HDMI 2.0 (4K 60Hz) 1x 3G-SDI, 1x HDMI 1.4 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) 1x 3G-SDI, 1x HDMI 1.4 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) 2x 12G-SDI, 1x HDMI 2.0 (4K 60Hz)
Audio 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit), HDMI 8ch 24-bit 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit), HDMI 8ch 24-bit 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit), HDMI 8ch 24-bit 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker
Video Standards
12G-SDI — 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 — — — — 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50
3G-SDI 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 — 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 —
HDMI 1.4 — — 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 — 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 — —
HDMI 2.0 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 — 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 — 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50
Operational Features
Anamorphic de-squeeze — — — 1.33X, 1.5X, 1.8X, 2X, 2X MAG — — —
Aspect markers — — — 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, Grid, User 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 2.0X, 2.0X MAG, Grid, User — —
Camera control LANC (Sony S-Lanc compatible) — — LANC (Sony S-Lanc compatible) — LANC (Sony S-Lanc compatible) —
Centre marker — — — On/Off On/Off — —
Colour temperature — — — 3200K, 5500K, 6500K, 7500K, 9300K, User 6500K, 7500K, 9300K, User — —
Comparison — — — Gamma/HDR, Colour space, Camera LUT — — —
DSLR presets — — — — 5D2, 5D3 — —
Display scan — — — Aspect, Pixel to pixel, Zoom Fullscan, Overscan, Underscan — —
Freeze — — — On/Off On/Off — —
Function buttons — User-definable User-definable (default: F1 Peaking, F2 Level Meter) FN user-definable F1 user-definable; INPUT key switches HDMI and SDI — User-definable (default: Peaking)
Gamma — — — 1.8 to 2.8 1.8 to 2.6 — —
H/V delay — — — Horizontal, Vertical, H/V — — —
Image mirroring — Vertical flip, Horizontal flip Vertical flip, Horizontal flip Vertical flip, Horizontal flip Vertical flip, Horizontal flip — Vertical flip, Horizontal flip
Menu control — — — Capacitive touch menu; centre swipe menu; left/right backlight and volume shortcuts MENU button; ◄/► shortcuts for volume, brightness, contrast, saturation, tint, sharpness — —
Overscan — — — On/Off — — —
Peaking — — — Red, Green, Blue, White Red, Green, Blue, White, Black — —
Safety marker — — — 80%, 85%, 88%, 90%, 93%, 95% 80%, 85%, 88%, 90%, 93%, 95% — —
Tally — — — — Red, Green — —
Time code — — — LTC, VITC LTC, VITC — —
Touch gestures Centre swipe: menu; left/right swipe: backlight/volume; two-finger zoom — — Centre swipe: menu; left/right swipe: backlight/volume; two-finger zoom; shortcut menu swipe — Centre swipe: menu; left/right swipe: backlight/volume; two-finger zoom —
View modes — Picture-by-Picture, Picture-in-Picture — — — — Picture-in-Picture
Zoom — — — — 1.5x, 2x, 3x, 4x — —
Scopes
Audio analysis Level meter Level meter Level meter Level meter Level meter Level meter Level meter
Video analysis Waveform (Multi, Y, YCbCr, RGB), Vector, Peaking, False colour, Exposure, Histogram Waveform, Peaking, False colour, Exposure, Histogram Peaking, False Color, Exposure, Histogram, Center/Aspect/Safety marker, Grid, Scan, Check Field, Zoom, Freeze, Image Flip Waveform (Multi, Y, YCbCr, RGB), Vector, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Histogram, Check field Peaking, False colour, Exposure, Histogram, Check field Waveform (Multi, Y, YCbCr, RGB), Vector, Peaking, False colour, Exposure, Histogram Waveform, Peaking, False colour, Exposure, Histogram
Accessories
Included 0.8 m HDMI A-D cable, LANC cable, Hot shoe mount, USB drive disk, Sunshade, F970 battery plate 12V 3A DC power adapter, Carry case, Gimbal bracket, VESA 75 mm F970 battery plate, Tally connector 12V DC Adapter, HDMI A/C Cable, VESA F970 Battery plate, Sun shade, Shoe mount, Manual 0.8 m HDMI A-D cable, LANC cable, Mini shoe mount, USB drive disk HDMI A/C cable, Tally control line, Mini shoe mount, USB drive disk, Carry-on bag, User manual 0.8 m HDMI A-D cable, LANC cable, Mini shoe mount, USB drive disk 12V 2A DC power adapter, Carry case, Gimbal bracket, VESA 75 mm F970 battery plate, Tally connector, User manual
Optional Battery plate adapter (with cable), Gimbal bracket, V-Lock battery plate + VESA adapter plate, 12V 3A DC power adapter V-Lock / Anton Bauer battery plate VESA Mount Plate, V-Lock / Anton Bauer Mount, VESA Folding Bracket, Gimbal bracket 12V 2A DC power adapter, Battery plate adapter, Wireless video transmission, Carry case 12V 2A DC power adapter 12V 2A DC power adapter —
Mounting
Gimbal bracket — Included — — — — Included
Shoe mount 3x 1/4 inch BSW 3x 1/4 inch BSW 3x 1/4 inch BSW 3x 1/4 inch BSW 4x 1/4 inch BSW 1x 1/4 inch BSW 3x 1/4 inch BSW
VESA mount 4x screw mounts 75 x 75 mm (battery plate included) 75 x 75 mm — — — 75 x 75 mm (battery plate included)
Power
Compatible batteries — Sony NP-F (F970) via VESA 75 plate NP-F Series (Sony F970) Sony NP-F series Sony NP-F series (F970) Sony NP-F series Sony NP-F (F970) via VESA 75 plate
Input voltage DC 7 to 24V DC 7 to 24V DC 7 to 24V DC 7 to 24V DC 7 to 24V DC 7 to 24V DC 7 to 24V
Input voltage (battery) — — 7.2V nominal — 7.2V nominal — —
Power consumption ≤23 W (12V) ≤37 W (12V) ≤13 W ≤16 W (15V) ≤15 W ≤14 W (15V) ≤20 W (12V)
Mechanical
Dimensions 251 x 170 x 26.5 mm 251 x 170 x 30.5 mm 252 x 157 x 25 mm 186 x 128 x 29 mm 225 x 155 x 23 mm 154.8 x 93.8 x 26.5 mm 186 x 128 x 32.5 mm
Weight 850 g 1.1 kg 550 g 520 g 535 g 310 g 785 g
Environmental
Operating temperature 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C
Storage temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -10°C to 60°C -20°C to 60°C -20°C to 60°C
