| Screen size |
2 inch |
7 inch |
7 inch |
5 inch |
| Native resolution |
640 x 240 |
1280 x 800 |
1920 x 1200 |
1920 x 1080 |
| Aspect ratio |
4:3 |
16:10 |
16:10 |
16:9 |
| Brightness |
250 cd/m² |
400 cd/m² |
400 cd/m² |
450 cd/m² |
| Colour space |
— |
— |
— |
98% DCI-P3 |
| Contrast |
300:1 |
800:1 |
2000:1 |
1000:1 |
| LUT support |
— |
— |
3D LUT (.cube format) |
3D LUT (.cube format) |
| Panels |
8x |
2x |
2x |
3x |
| Supported log formats |
— |
— |
SLog2, SLog3, ArriLog, CLog, JLog, VLog, NLog, User defined |
— |
| Viewing angle |
80°/70° (H/V) |
178°/178° (H/V) |
160°/160° (H/V) |
160°/160° (H/V) |
|
| Video inputs |
8x 3G-SDI |
2x 3G-SDI, 2x HDMI 1.4, 2x YPbPr (3 BNC), 2x Composite |
2x 3G-SDI, 2x HDMI 2.0 |
3x 3G-SDI, 3x HDMI 2.0 |
| Video outputs |
8x 3G-SDI |
2x 3G-SDI, 2x HDMI 1.4, 2x YPbPr (3 BNC), 2x Composite |
2x 3G-SDI, 2x HDMI 2.0 |
3x 3G-SDI, 3x HDMI 2.0 |
| Audio |
3G-SDI 12ch 48kHz 24-bit |
— |
3.5 mm ear jack x 2 |
3.5 mm ear jack x 3 |
| Control |
— |
LAN, TALLY |
LAN, TALLY, USB (LUT load) |
— |
|
| 3G-SDI |
720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 |
1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 |
| HDMI |
— |
720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60 |
2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 |
2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 |
|
| Input voltage |
DC 12 to 24V |
DC 7 to 24V |
DC 10 to 24V |
DC 12 to 24V |
| Power consumption |
≤23 W |
≤18 W |
≤18 W |
≤27 W (12V) |
|
| Function buttons |
— |
— |
User-definable (peaking, waveform, histogram, false colour, exposure, time code, etc.) |
— |

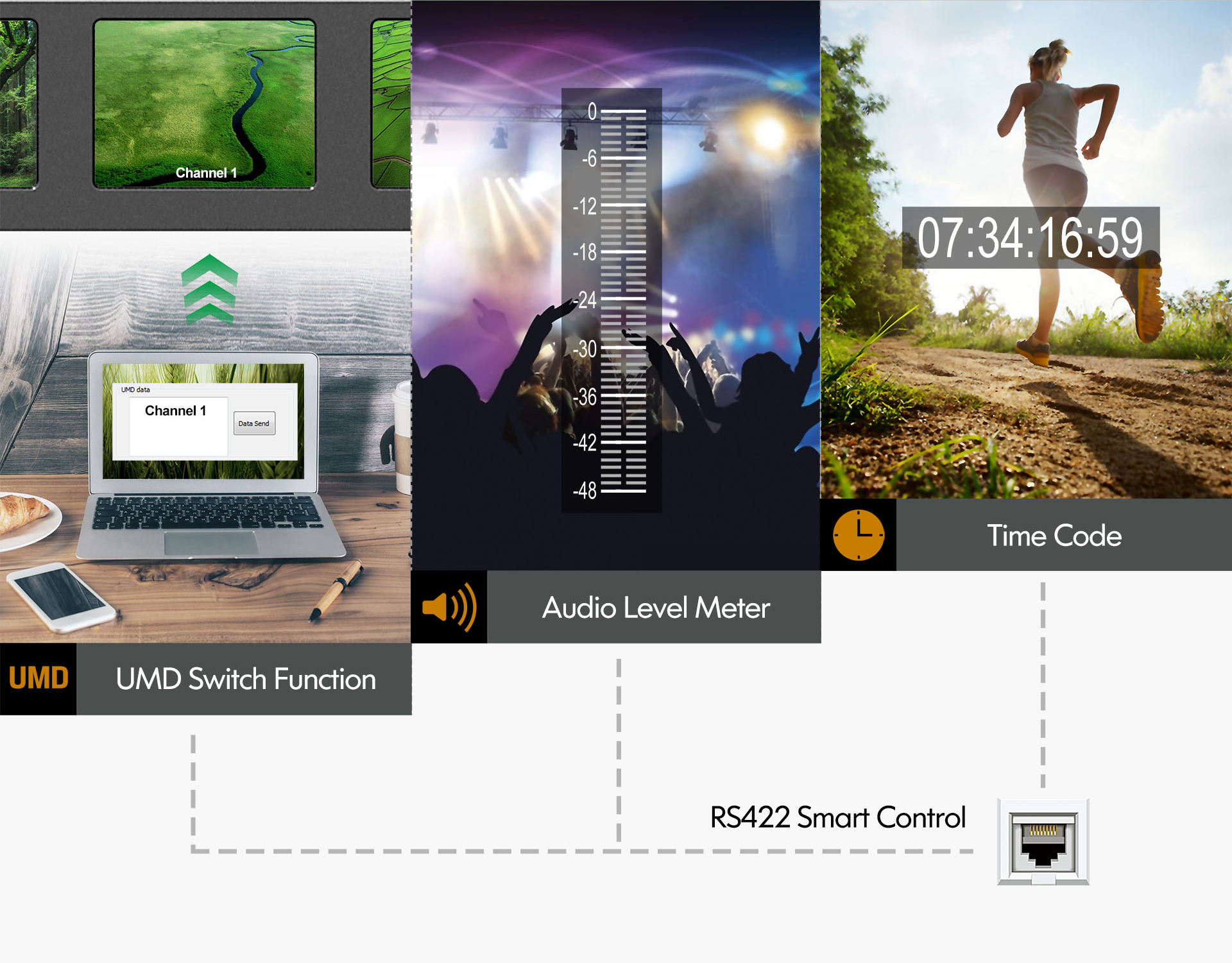

| PC software |
Brightness, contrast, time code switch, level meter, UMD (32 characters) |
— |
— |
— |
| Remote control |
RS422 In |
LAN |
LAN |
LAN |
| Tally |
— |
TALLY connector |
TALLY connector (indicating light) |
TALLY connector |
| View modes |
— |
— |
— |
3G-SDI, HDMI |
|

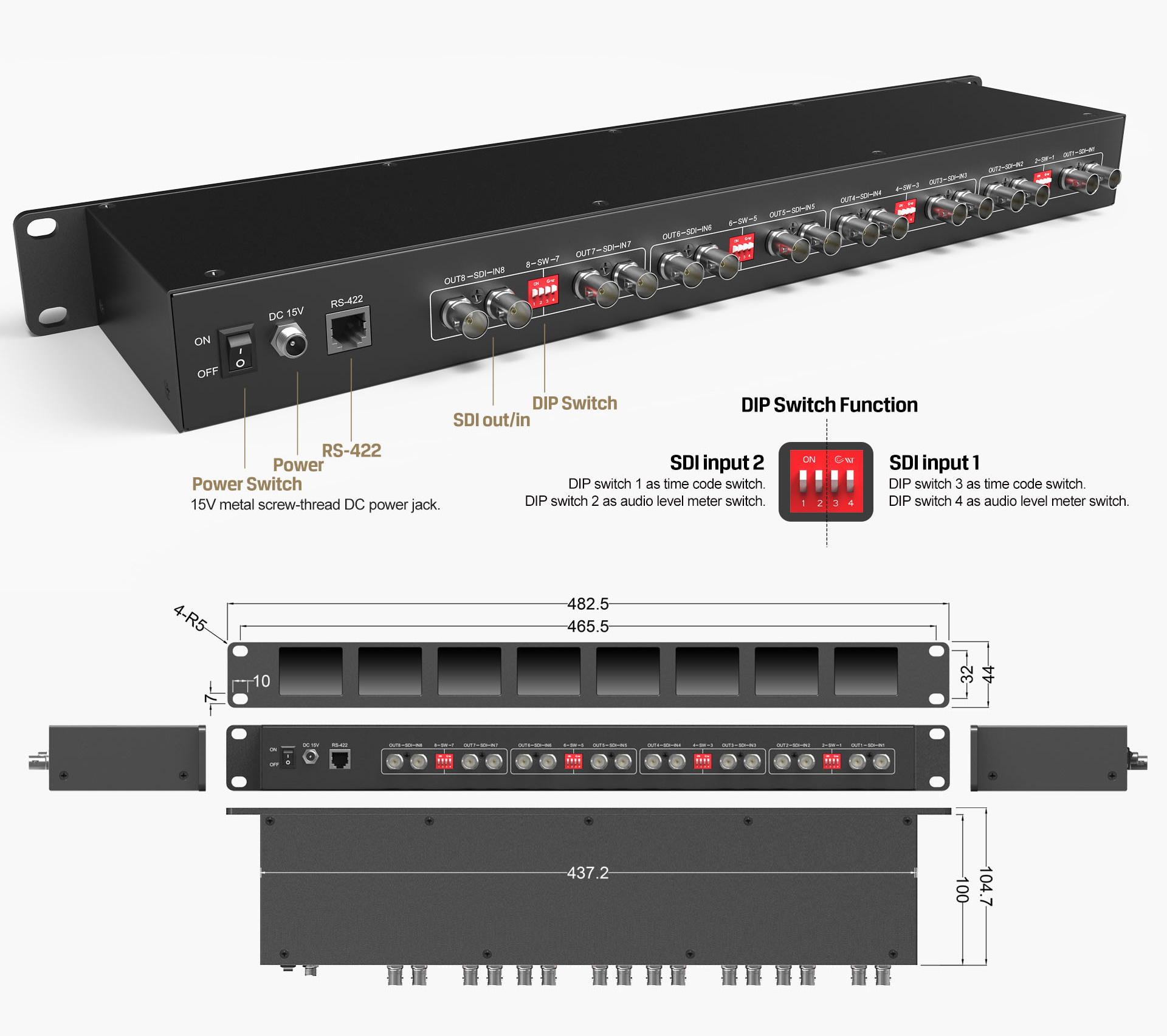

| Dimensions |
482.5 x 105 x 44 mm |
482.5 x 133.5 x 25.3 mm |
480 x 131.6 x 29.3 mm |
480 x 88 x 88 mm |
| Rack height |
2U |
3U |
3U |
2U |
| Weight |
1.555 kg |
2.885 kg |
2.2 kg |
2.1 kg |
|
| Operating temperature |
-20°C to 60°C |
-20°C to 60°C |
-20°C to 60°C |
0°C to 50°C |
| Storage temperature |
-30°C to 70°C |
-30°C to 70°C |
-30°C to 70°C |
-20°C to 60°C |
|
| Audio analysis |
— |
— |
Level meter |
— |
| Video analysis |
— |
— |
Waveform, Histogram, False colour, Exposure, Time code (LTC, VITC) |
— |
|
| Included |
15V DC Adapter, CD (software), User Manual |
15V DC Adapter, TALLY Connector, User Manual (CD) |
12V 2A DC Power Adapter, TALLY Connector, E-User Manual |
Power Adapter, TALLY Connector, E-User Manual |
|
| Rack mount |
2U rack height (105 mm) — 19 inch standard rack mounting |
3U rack height (133.5 mm) — 19 inch standard rack mounting |
3U rack height (131.6 mm) — 19 inch standard rack mounting |
2U rack height (88 mm) — 19 inch standard rack mounting |
