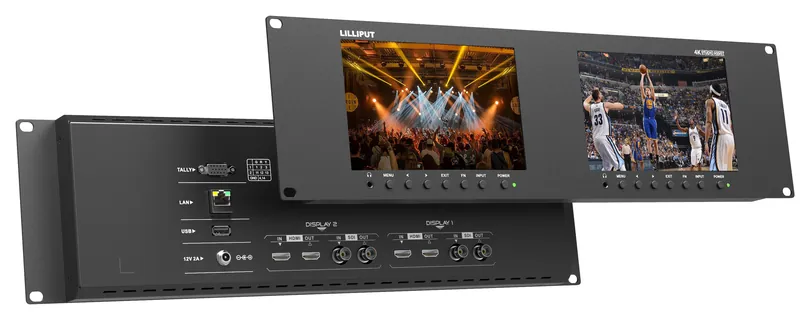

RM-7029S RM-7029S RM-7029S RM-7029S RM-7029S

Key Features

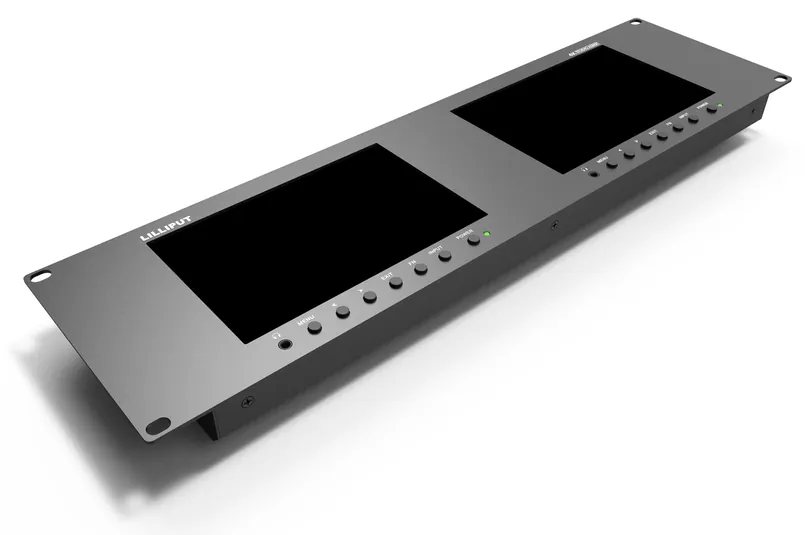

  • Dual 7 inch 1920 x 1200 displays, 400 cd/m², 2000:1 contrast
  • 2x 3G-SDI, 2x HDMI 2.0 — up to 2160p 60Hz on all inputs
  • 3U rack height (131.6 mm) — 19 inch standard rack mounting
  • 3D LUT (.cube format); log formats: SLog2/SLog3, ArriLog, CLog, JLog, VLog, NLog, User
  • Waveform, histogram, false colour, peaking, time code (LTC/VITC); FN user-definable button
  • TALLY connector with indicating light; LAN for remote control; USB for LUT load; 2x 3.5 mm ear jacks

Product Enquiry

Request a quote or ask a question about the RM-7029S. Our UK team will respond promptly.

Technical Data

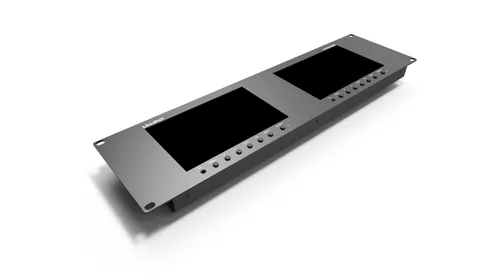

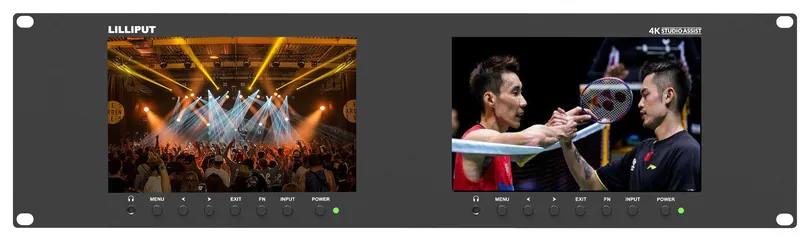

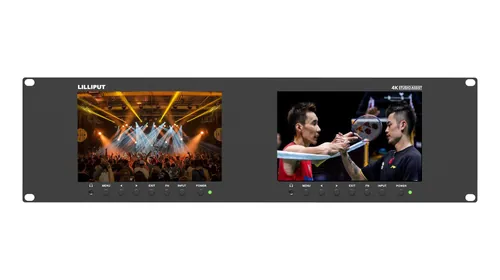

Display

Screen size7 inch
Panels2x
Aspect ratio16:10
Native resolution1920 x 1200
Brightness400 cd/m²
Contrast2000:1
Viewing angle160°/160° (H/V)
Supported log formatsSLog2, SLog3, ArriLog, CLog, JLog, VLog, NLog, User defined
LUT support3D LUT (.cube format)

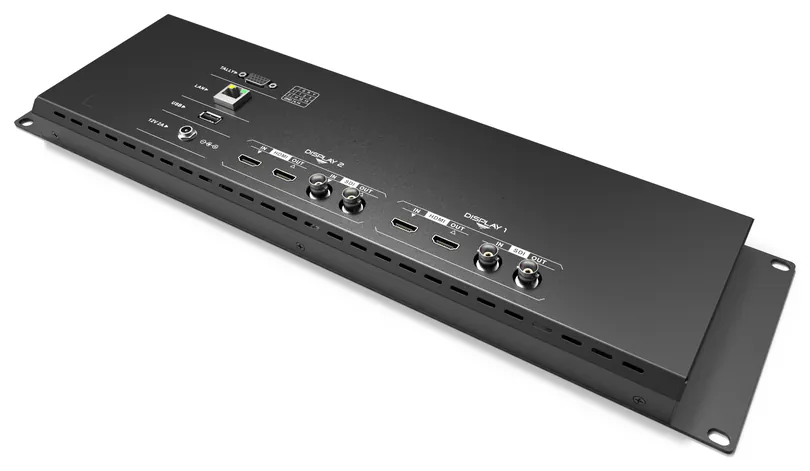

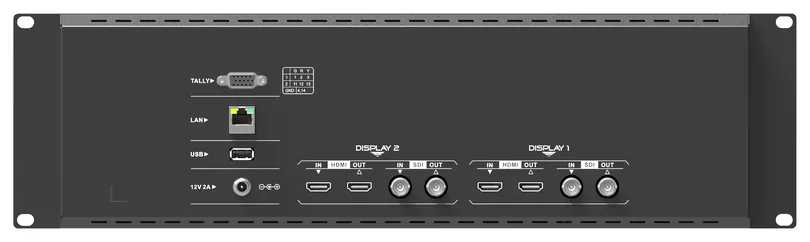

Connections

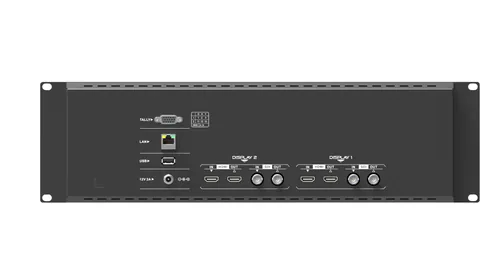

Video inputs2x 3G-SDI, 2x HDMI 2.0
Video outputs2x 3G-SDI, 2x HDMI 2.0
Audio3.5 mm ear jack x 2
ControlLAN, TALLY, USB (LUT load)

Video Standards

3G-SDI1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50
HDMI2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50

Scopes

Video analysisWaveform, Histogram, False colour, Exposure, Time code (LTC, VITC)
Audio analysisLevel meter

Operational Features

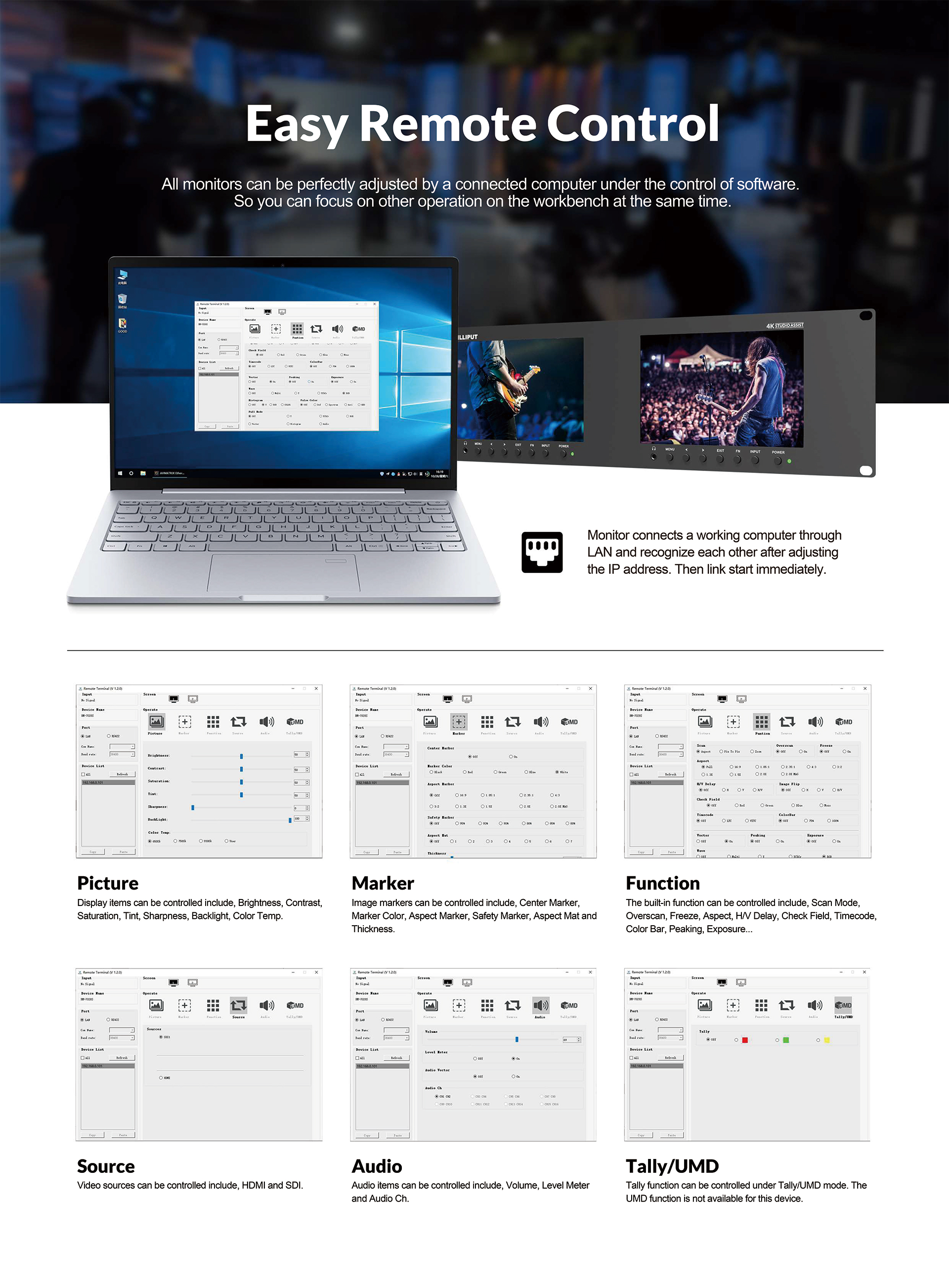

Remote controlLAN
TallyTALLY connector (indicating light)
Function buttonsUser-definable (peaking, waveform, histogram, false colour, exposure, time code, etc.)

Power

Input voltageDC 10 to 24V
Power consumption≤18 W

Environmental

Operating temperature-20°C to 60°C
Storage temperature-30°C to 70°C

Mechanical

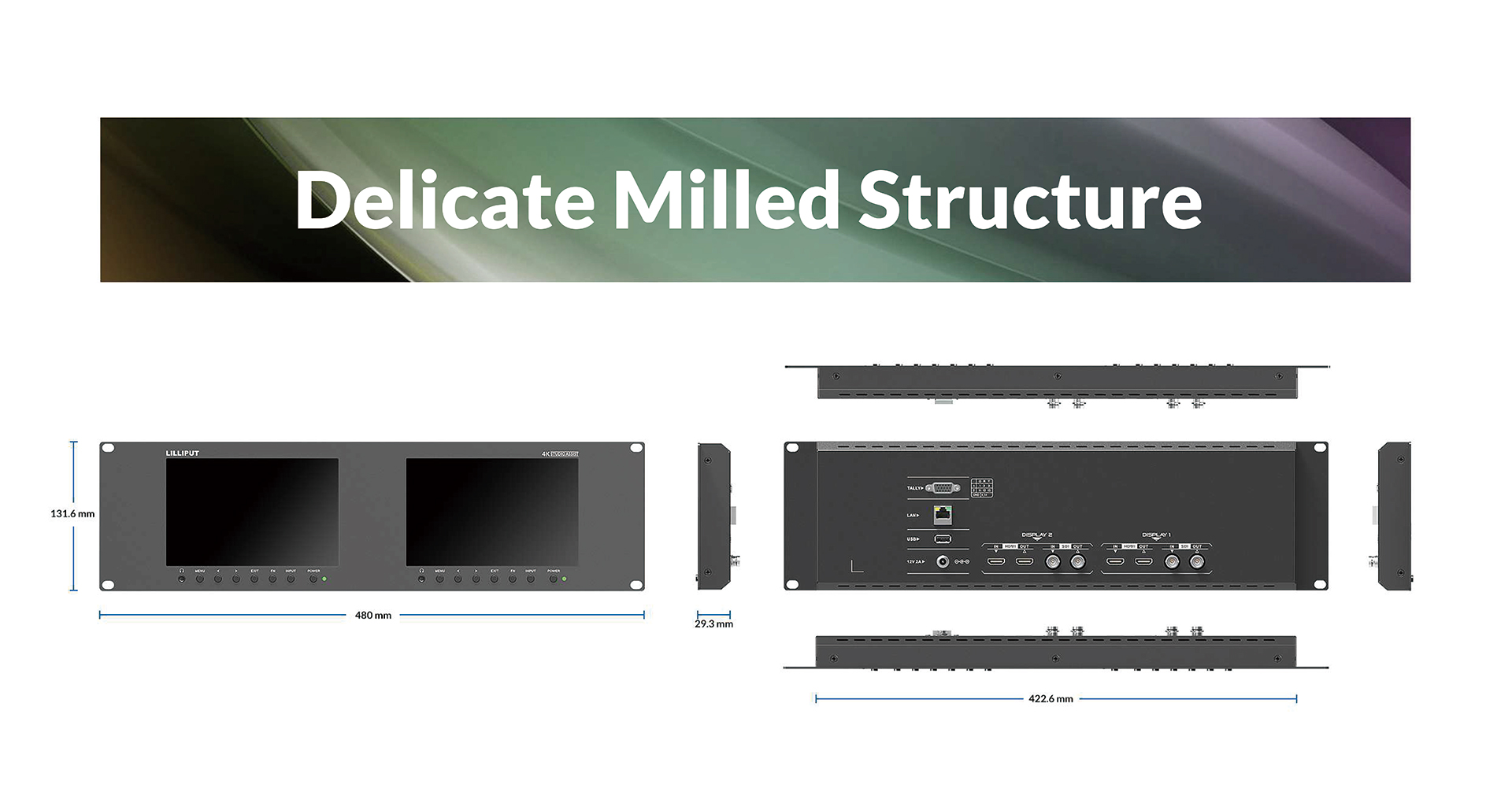

Dimensions480 x 131.6 x 29.3 mm
Weight2.2 kg
Rack height3U

Mounting

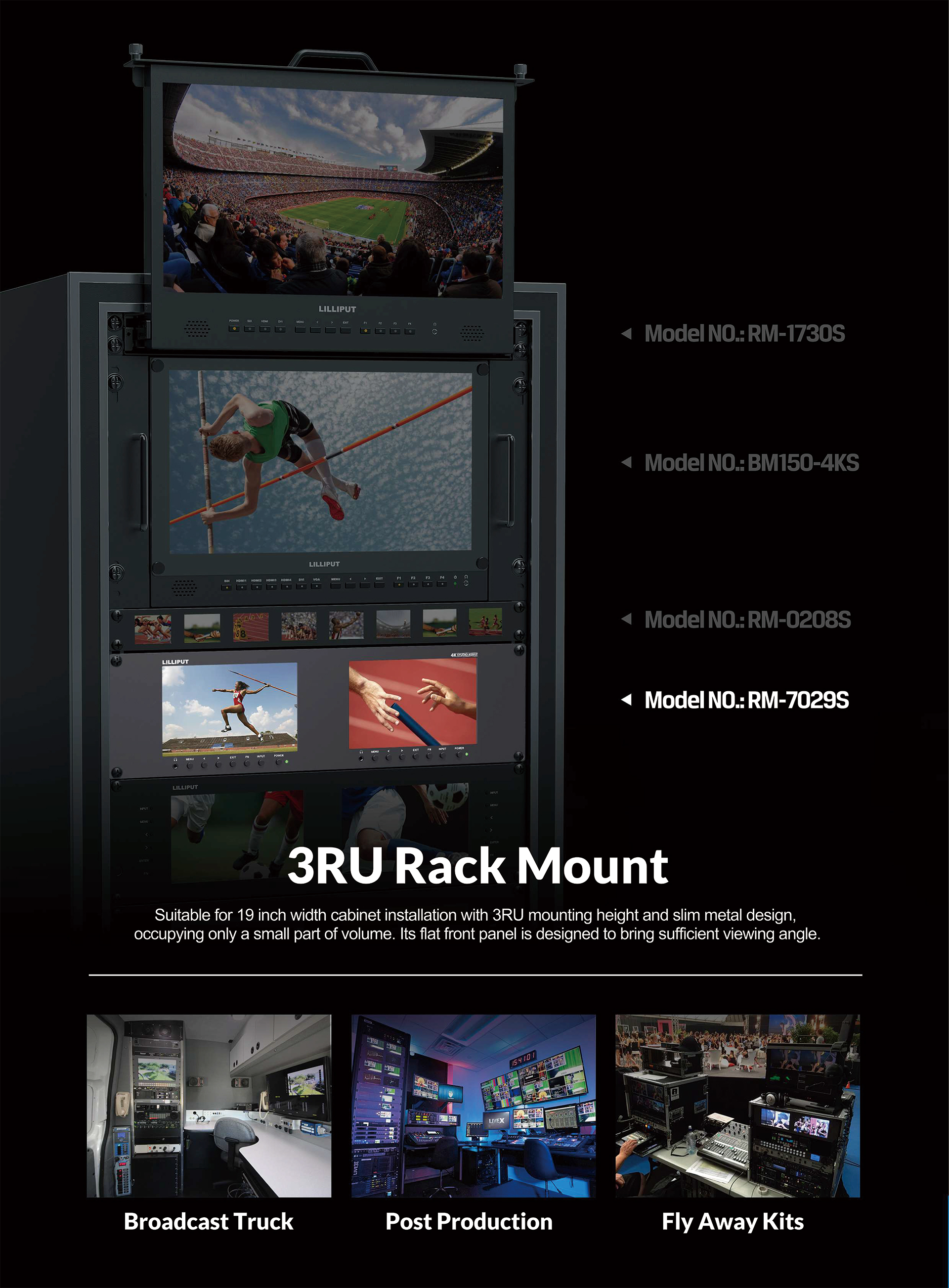

Rack mount3U rack height (131.6 mm) — 19 inch standard rack mounting

Accessories

Included

  • 12V 2A DC Power Adapter
  • TALLY Connector
  • E-User Manual

Product Downloads

Similar Products

Compare key technical data across similar products.

Technical Data RM-7029S RM-7026-12G RM-503S RM-7028S RM-0208S
Display
Screen size 7 inch 7 inch 5 inch 7 inch 2 inch
Native resolution 1920 x 1200 1920 x 1200 1920 x 1080 1280 x 800 640 x 240
Aspect ratio 16:10 16:10 16:9 16:10 4:3
Brightness 400 cd/m² 1000 cd/m² 450 cd/m² 400 cd/m² 250 cd/m²
Colour space — — 98% DCI-P3 — —
Contrast 2000:1 1200:1 1000:1 800:1 300:1
HDR — HLG, ST2084 300/1000/10000 cd/m² — — —
LUT support 3D LUT (.cube format) — 3D LUT (.cube format) — —
Panels 2x 2x 3x 2x 8x
Supported log formats SLog2, SLog3, ArriLog, CLog, JLog, VLog, NLog, User defined — — — —
Viewing angle 160°/160° (H/V) 160°/160° (H/V) 160°/160° (H/V) 178°/178° (H/V) 80°/70° (H/V)
Connections
Video inputs 2x 3G-SDI, 2x HDMI 2.0 2x 12G-SDI, 2x HDMI 2.0 3x 3G-SDI, 3x HDMI 2.0 2x 3G-SDI, 2x HDMI 1.4, 2x YPbPr (3 BNC), 2x Composite 8x 3G-SDI
Video outputs 2x 3G-SDI, 2x HDMI 2.0 2x 12G-SDI, 2x HDMI 2.0 3x 3G-SDI, 3x HDMI 2.0 2x 3G-SDI, 2x HDMI 1.4, 2x YPbPr (3 BNC), 2x Composite 8x 3G-SDI
Audio 3.5 mm ear jack x 2 3.5 mm ear jack 3.5 mm ear jack x 3 — 3G-SDI 12ch 48kHz 24-bit
Control LAN, TALLY, USB (LUT load) LAN — LAN, TALLY —
Video Standards
3G-SDI 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60
HDMI 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60 —
Power
Input voltage DC 10 to 24V DC 12 to 24V DC 12 to 24V DC 7 to 24V DC 12 to 24V
Power consumption ≤18 W ≤21 W (12V) ≤27 W (12V) ≤18 W ≤23 W
Operational Features
Function buttons User-definable (peaking, waveform, histogram, false colour, exposure, time code, etc.) — — — —
PC software — — — — Brightness, contrast, time code switch, level meter, UMD (32 characters)
Remote control LAN LAN LAN LAN RS422 In
Tally TALLY connector (indicating light) TALLY connector TALLY connector TALLY connector —
View modes — — 3G-SDI, HDMI — —
Mechanical
Dimensions 480 x 131.6 x 29.3 mm 480 x 131.6 x 32.5 mm 480 x 88 x 88 mm 482.5 x 133.5 x 25.3 mm 482.5 x 105 x 44 mm
Rack height 3U 3U 2U 3U 2U
Weight 2.2 kg 1.83 kg 2.1 kg 2.885 kg 1.555 kg
Environmental
Operating temperature -20°C to 60°C 0°C to 50°C 0°C to 50°C -20°C to 60°C -20°C to 60°C
Storage temperature -30°C to 70°C -20°C to 60°C -20°C to 60°C -30°C to 70°C -30°C to 70°C
Scopes
Audio analysis Level meter — — — —
Video analysis Waveform, Histogram, False colour, Exposure, Time code (LTC, VITC) — — — —
Other
Included 12V 2A DC Power Adapter, TALLY Connector, E-User Manual 12V 3A Power Adapter, TALLY Connector, E-User Manual Power Adapter, TALLY Connector, E-User Manual 15V DC Adapter, TALLY Connector, User Manual (CD) 15V DC Adapter, CD (software), User Manual
Mounting
Rack mount 3U rack height (131.6 mm) — 19 inch standard rack mounting 3U rack height (131.6 mm) — 19 inch standard rack mounting 2U rack height (88 mm) — 19 inch standard rack mounting 3U rack height (133.5 mm) — 19 inch standard rack mounting 2U rack height (105 mm) — 19 inch standard rack mounting

Compare all technical data

Ready to order?

Dual 7 inch 3U rack-mountable broadcast monitor. 2x 3G-SDI, 2x HDMI 2.0, up to 4K 60Hz, and TALLY for control room applications.
