Signal Management
Narrow the list with the specification filters on the left. To explore by sector and application, use the Industries page.
Applied filters
Clear all
DE21-4K PRO
From €569 / £499
- Retrofit HDMI sources (DSLRs, camcorders, etc.) onto NDI® High Bandwidth, or decode NDI® to HDMI for on-set monitoring without a PC
- 4K HDMI NDI® High Bandwidth encoder and decoder, bidirectional
- 1x HDMI input, 1x HDMI output; 1x NDI®/PoE RJ45; 3.5 mm line in/out
- YCbCr 4:2:2 8bit NDI® High Bandwidth HD encoding
DE20-4K
- Retrofit HDMI sources (DSLRs, camcorders, etc.) onto NDI®|HX, or decode NDI® to HDMI for on-set monitoring without a PC
- 4K HDMI NDI®|HX encoder and decoder; NDI®|HX, NDI®|HX2, and NDI®|HX3 up to 2160p 30 at up to 50 Mbps over PoE+ Ethernet
- 1x HDMI input, 1x HDMI loop out, 1x HDMI output; 1x NDI®|HX/PoE+ RJ45; 1x 3.5 mm line in and out; flexible audio mixing
- 2160p 60 HDMI input; 2160p 60 HDR passthrough on HDMI loop out; 2160p 30/25/24 on HDMI decode output
SE2017
- 3G-SDI/HDMI encoder and recorder, 1x HDMI in/loop out, 1x 3G-SDI in/loop out, 3.5 mm line in, RJ-45 100/1000 Mbps
- Record to SD card or USB disk (FAT32/exFAT/NTFS). File segments 1 to 120 mins
- HDMI and 3G-SDI input: 1080p 24 to 60, 1080i 50/60, 720p 24 to 60, 576i/p 50, 480i/p 60
- Video bitrate 2 to 32 Mbps; audio AAC 64 to 320 Kbps. USB capture out up to 1080p 60 Hz

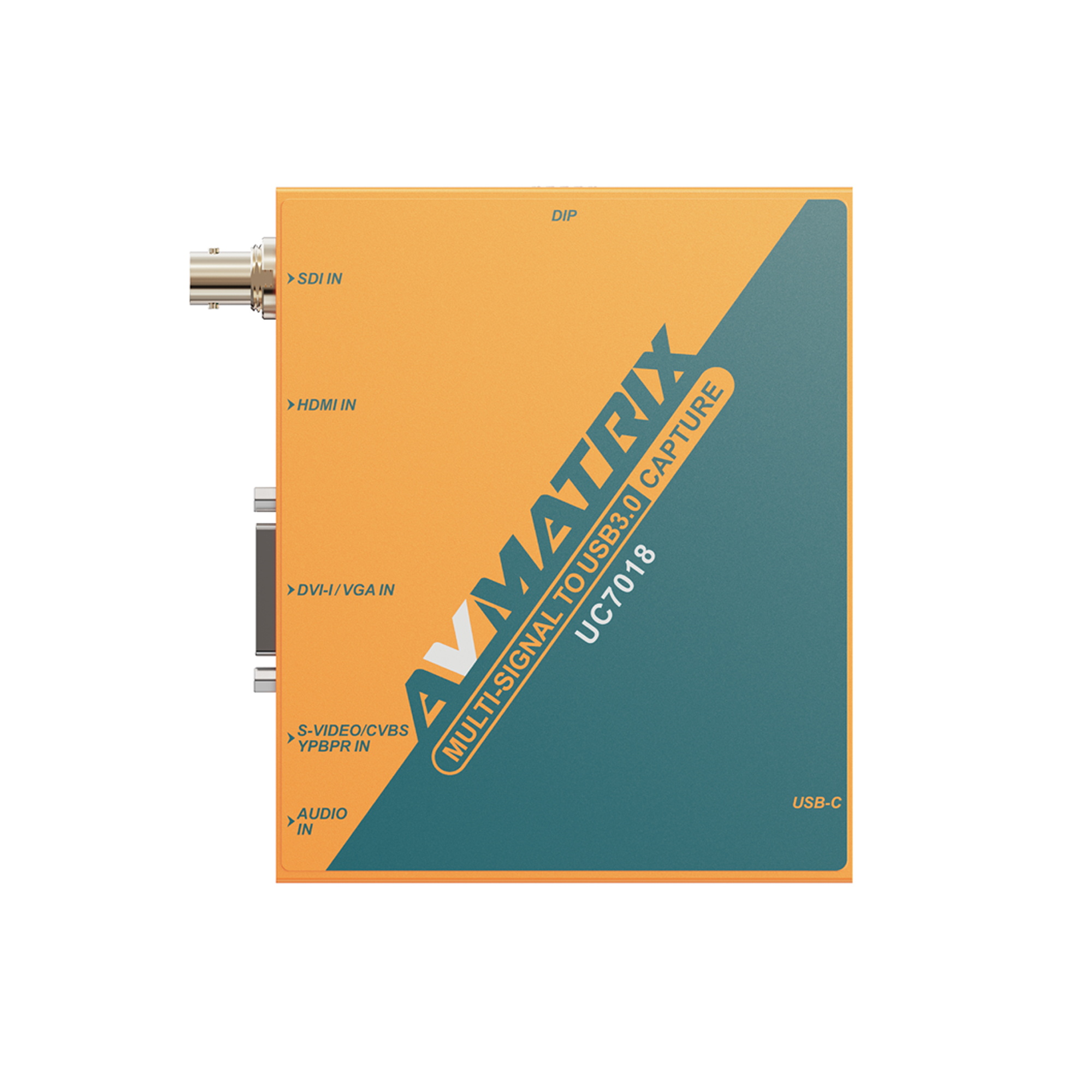

UC7018
From €329 / £289
- Multi-signal to USB 3.0 capture, 1x 3G-SDI, 1x HDMI, 1x DVI-I/VGA, 1x S-Video/CVBS/YPbPr
- USB 3.0 Type C output (USB 3.1 Gen1, up to 200 MB/s)
- 3G-SDI/HDMI: 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60
- DVI/VGA: 1920 x 1080 down to 640 x 400. YPbPr, S-Video, CVBS

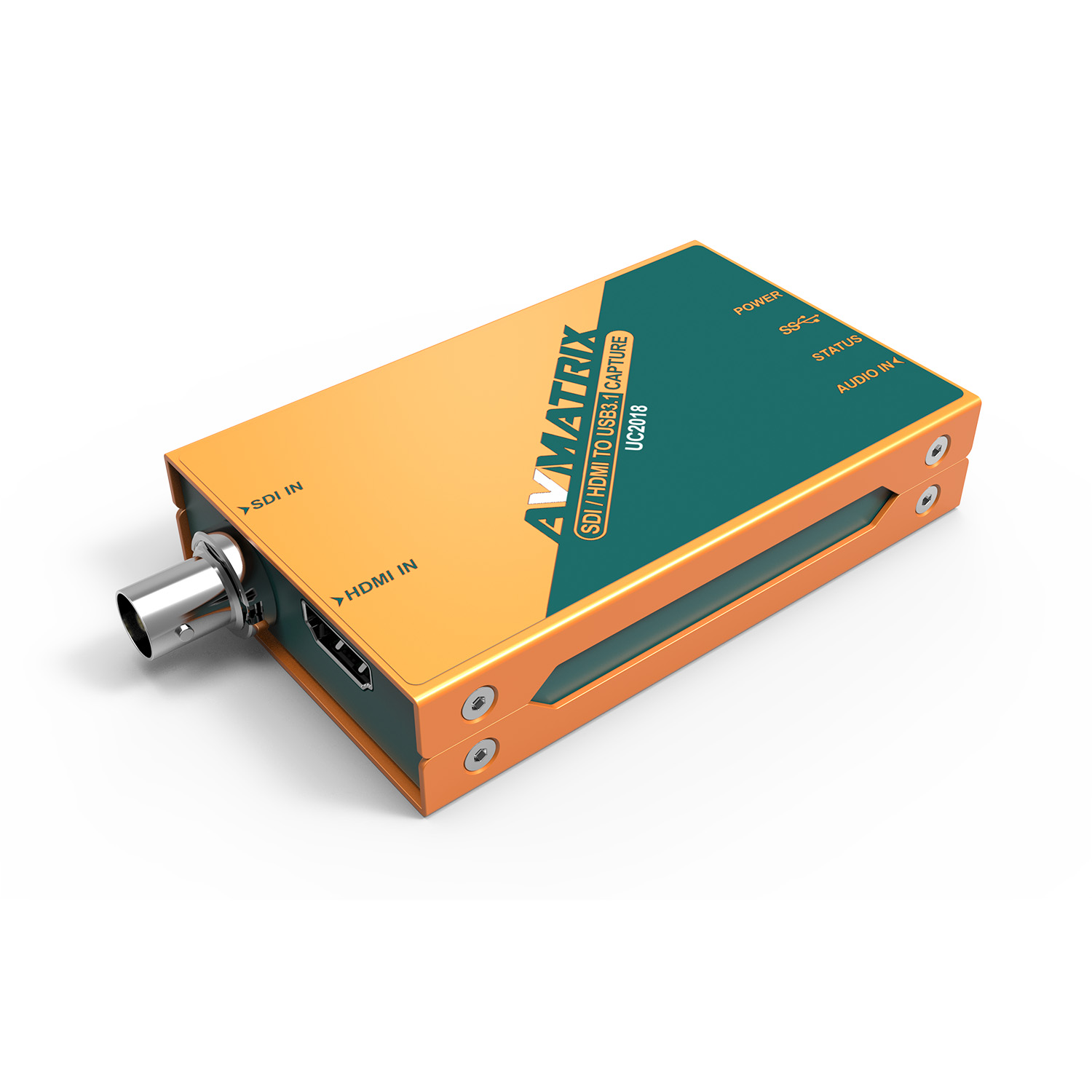

UC2018
From €199 / £179
- 3G-SDI/HDMI to USB 3.0 capture, 1x SD/HD/3G-SDI, 1x HDMI 1.4a
- USB 3.0 Type C output (USB 3.1 Gen1, up to 200 MB/s)
- 3G-SDI/HDMI: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 24/25/30/50/60, 625i 50, 525i 59.94
- HDMI: 576p 50, 576i 50, 480p/i 59.94/60. USB output up to 1920 x 1200

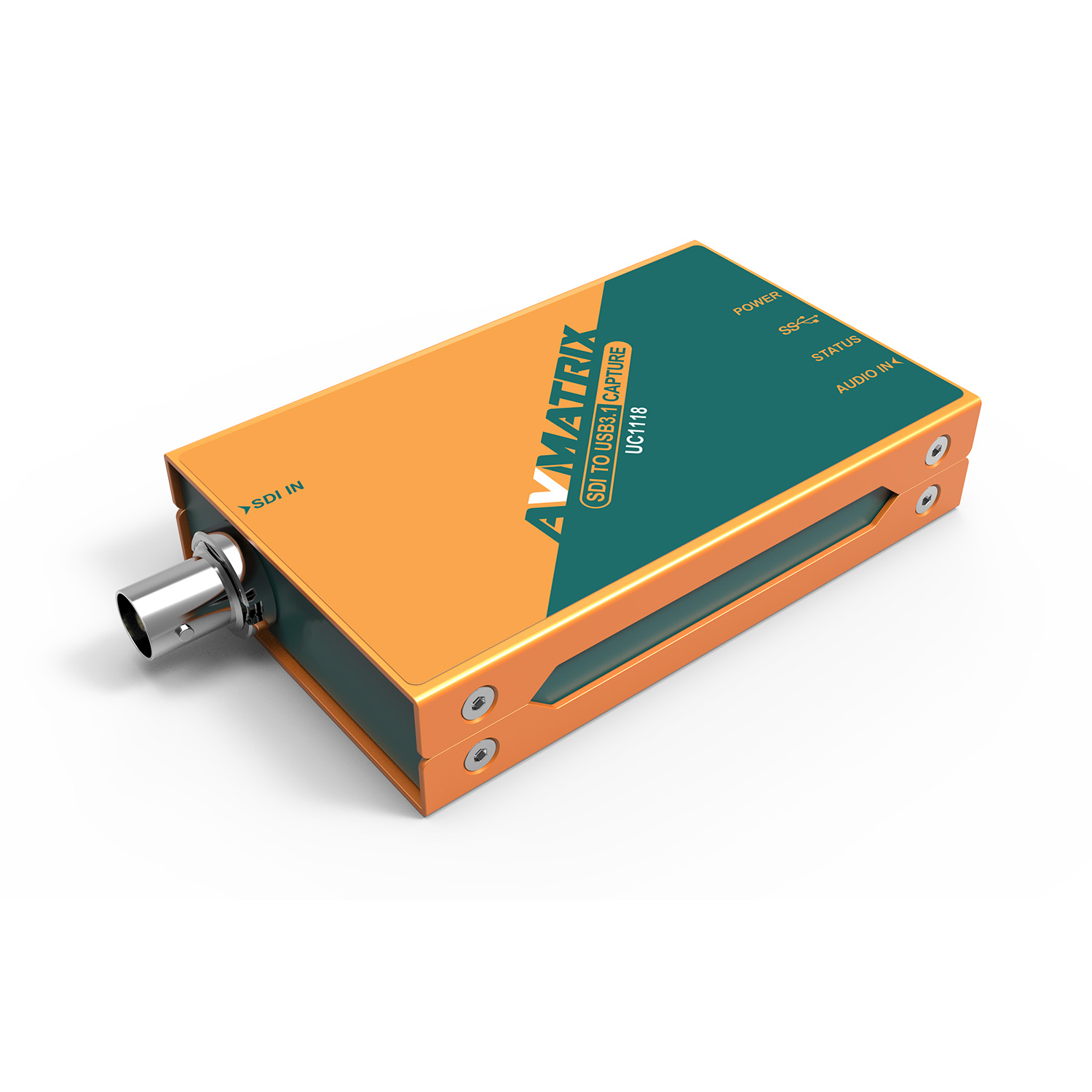

UC1118
From €179 / £159
- 3G-SDI to USB 3.0 capture, 1x SD/HD/3G-SDI input only
- USB 3.0 Type C output (USB 3.1 Gen1, up to 200 MB/s)
- 3G-SDI: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 24/25/30/50/60, 625i 50, 525i 59.94
- USB output up to 1920 x 1200. YUY2. UVC/UAC
UC1218-4K
From €199 / £179
- HDMI 2.0 to USB 3.0 4K capture, 1x HDMI 2.0 input, 1x HDMI 2.0 loop-out
- USB 3.0 Type C (5 Gbps). P010/MJPG up to 4K60; YUY2 up to 2560 x 1440 p60
- RGB24 up to 2560 x 1440 p30; NV12/I420 up to 4K30
- 1x 3.5 mm line in, 1x mic in, 1x audio out. UVC/UAC
UC1218-4K PRO
From €219 / £189
- HDMI 2.0 to USB 3.1 Gen2 4K capture, 1x HDMI 2.0 input, 1x HDMI 2.0 loop-out
- USB 3.1 Gen2 Type C (10 Gbps). Up to 4K60, 2K144Hz, 1080p240Hz
- P010/MJPG up to 4K60; YUY2/NV12/I420 up to 4K60; RGB24 up to 2560 x 1440 p60
- 1x 3.5 mm line in, 1x mic in, 1x audio out. UVC/UAC
UC2218-4K
From €249 / £219
- Dual HDMI to USB 3.0 capture, 1x HDMI 2.0 in, 1x HDMI in, 1x HDMI 2.0 loop-out
- USB 3.0 Type C (5 Gbps, up to 200 MB/s). HDMI 2.0 path: 4K60, 1440p144, 1080p240
- USB capture: HDMI 2.0 path up to 1080p60 YUY2; second HDMI up to 1080p30 MJPG
- 1x 3.5 mm line in, 1x mic in, 1x audio out. UVC/UAC. 1080i hardware deinterlacing
H4 Plus
From €589 / £519
- Built-in 10.1 inch IPS FHD display for multiview monitoring
- 4x HDMI inputs with multi-format auto signal detection up to 1080p 60
- T-Bar, AUTO, and CUT transitions with 11x3 WIPE patterns, MIX, DIP, and more
- Upstream keying (luma, chroma, 2x PIP, POP) and downstream keying (DSK, logo)
S4 Plus
From €629 / £559
- Built-in 10.1 inch IPS FHD display for multiview monitoring
- 2x 3G-SDI + 2x HDMI inputs with multi-format auto signal detection up to 1080p 60
- T-Bar, AUTO, and CUT transitions with 11x3 WIPE patterns, MIX, DIP, and more
- Upstream keying (luma, chroma, 2x PIP, POP) and downstream keying (DSK, logo)
S6
From €699 / £619
- Built-in 5 inch LCD display for multiview monitoring
- 4×3G-SDI and 2×HDMI inputs with multi-format auto signal detection up to 1080p 60
- T-Bar, AUTO, and CUT transitions with 11×3 WIPE patterns, MIX, DIP, FTB
- Upstream keying (chroma key, 2×PIP, POP) and downstream keying (DSK, logo)
S6 Plus
From €1,199 / £1,059
- 17.3 inch FHD IPS display with customisable multiview monitoring
- 6×3G-SDI and 2×4K HDMI inputs (IN5/IN6 multiplexed) with frame sync; 4×3G-SDI + 2×HDMI PGM outputs and multiview
- T-Bar, AUTO, and CUT transitions with WIPE (11×4), MIX, DIP, FTB, freeze
- Upstream keying (luma, chroma, 3x PIP) and downstream keying (DSK, logo); up to 6 layers
S8X Plus
From €1,899 / £1,679
- 17.3 inch FHD IPS display with customisable multiview monitoring
- 8×3G-SDI and 2×4K HDMI inputs with frame sync; 4×3G-SDI + 2×HDMI PGM outputs and multiview
- T-Bar, AUTO, and CUT transitions with WIPE (11×3), MIX, DIP, FTB, freeze
- Upstream keying (luma, chroma, 3x PIP) and downstream keying (DSK, logo); up to 6 layers

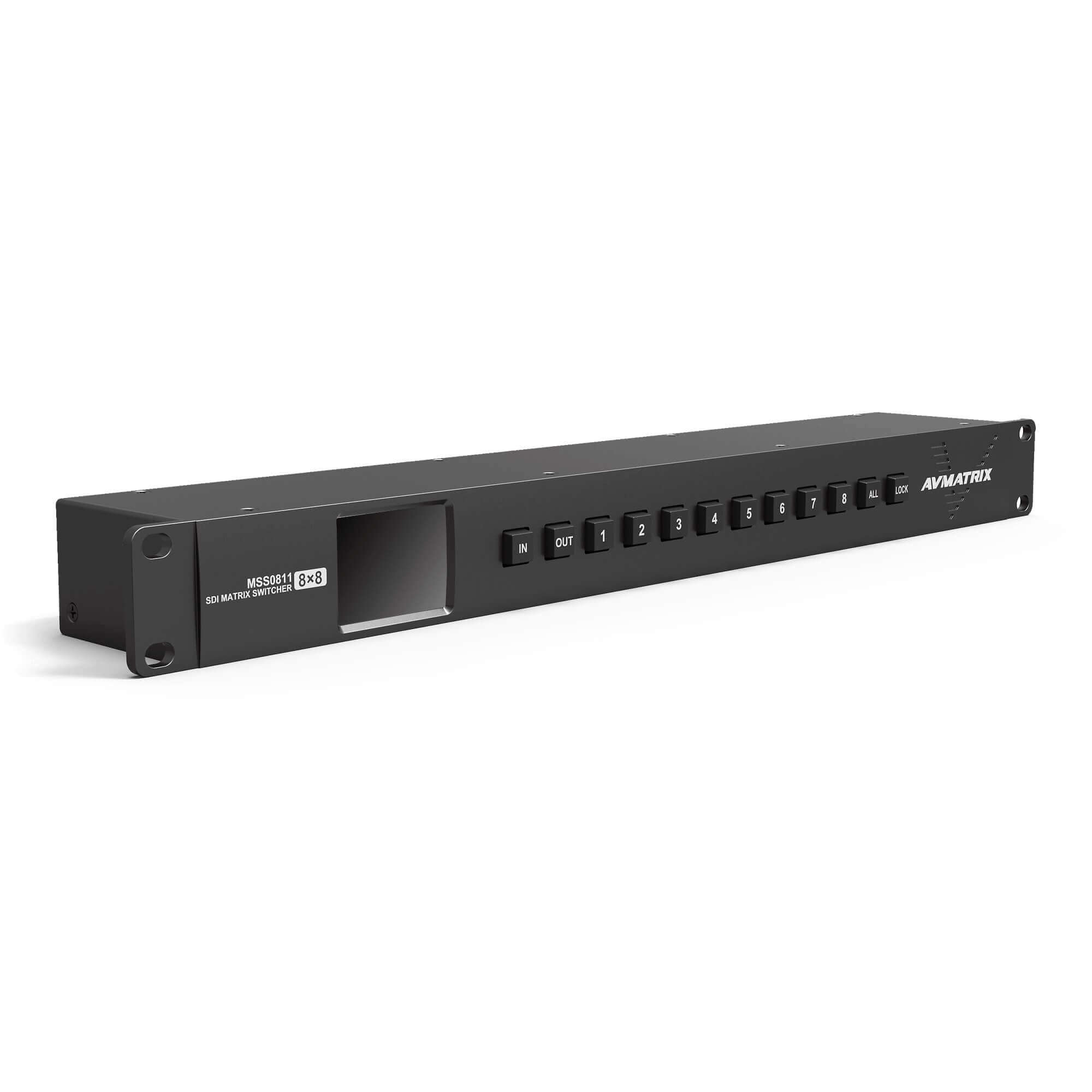

MSS0811
From €799 / £709
- 8x SD/HD/3G-SDI/DVB-ASI inputs and 8x outputs, any-to-any matrix routing
- Supports 2K, 3G, HD, and SD-SDI with automatic format detection
- Passes all 3G-SDI embedded audio and ancillary data
- One-to-one, one-to-all, and multi-output routing presets
SD1121-12G
- 1x2 12G-SDI signal repeater: 1x 12G-SDI BNC in, 2x 12G-SDI BNC out; automatically detects SD, HD, 3G, 6G, and 12G-SDI
- DVB-ASI compatible; automatic cable equalization and signal retiming (long-reach SDI up to 12G 60 m, 3G 120 m per Belden-class coax)
- Passes embedded audio and ancillary data on both outputs
- 5 V USB Type-C power (1 W typical); detachable wall-mount bracket included
FE1121
From €389 / £349
- 3G-SDI fiber optic extender kit (FE1121-TX + FE1121-RX): 1x SDI in and loop out on transmitter, 2x SDI out on receiver
- Hot-pluggable SFP modules with LC single-mode fiber; up to 20 km (12.5 miles) at 3G (1080p); SMPTE 297M compliant
- Auto-detects SD, HD, and 3G-SDI Level A/B on input; YUV and RGB colour space; 16 channel embedded audio pass-through
- SDI equalization and re-clocking on input and output; up to 120 m for 3G-SDI coax per link
FE1121-12G
From €669 / £589
- 12G-SDI fiber optic extender kit (FE1121-12G-TX + FE1121-12G-RX): 1x SDI in and loop out on transmitter, 2x SDI out on receiver
- Hot-pluggable SFP modules with LC single-mode fiber; up to 10 km (6.2 miles) at 12G (4K60P); SMPTE 297M compliant
- Auto-detects SD, HD, 3G, 6G, and 12G-SDI/ASI on input; YUV and RGB colour space; 32/16 channel embedded audio pass-through
- SDI equalization and re-clocking on input and output; up to 60 m for 12G-SDI coax per link
